ELF System
Copper / Fiber :: ELF Family
Chapter 4: ELF Fiber Modules
Telect manufactures two Fiber ELF platforms for patching, and patching with splicing:
• ELF Fiber Patch (Models ELF-PC12-SC00, ELF-PC12-FC00, ELF-PC12-SA00, and ELF-PC24-LC00)
• ELF Fiber Splice/Patch (Models ELF-SP12-SCPT, ELF-SP12-FCPT, and ELF-SP12-SAPT)
All modules are available with either 12, SC/UPC, FC/UPC, SC/APC, or 24 LC/APC adapters. All modules t the
ELF chassis and lockable wall-mount enclosure. Mounting screws for installing on the chassis or enclosure are
included. Telect supplies dust covers for all open ber adapters.
4.1 ELF Fiber Patch Modules (Model Series ELF-PC12-XX00)

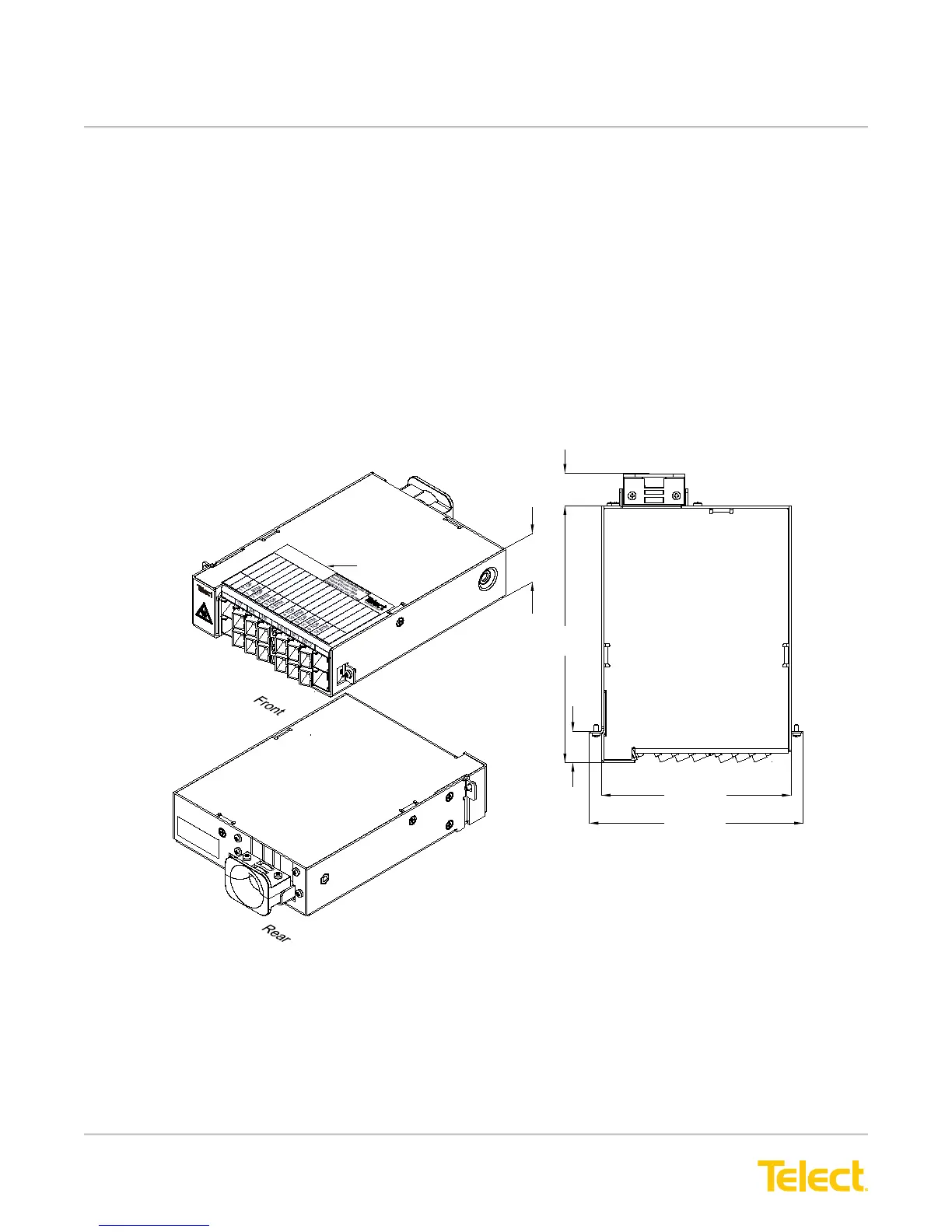

The following illustration shows an ELF-PC12-SC00.
Circuit Designation
Label
0.90 (22.9)
7.21
(183.1)
5.24 (133.0)
1.63
(41.3)
0.87
(22.0)
Note: Dimensions are in in. (mm)
Top View
Clamshell Guide
for Fiber Jumpers
Fiber Patch Adapters
12-Termination
ELF Fiber Patch Module
5.90 (150.0)
Figure 29 - ELF-PC12-SC00
You can purchase Fiber Patch Modules with factory-installed 2-mm ber jumpers, as shown below
