Telect ELF-9716-1900 - Figure 32 - Splice Cassette; Figure 33 - Subunit Entrance Compartment

© Telect, Inc., All Rights Reserved, 124317-10 A0
1.509.926.6000 :: telect.com
35
ELF System
Copper / Fiber :: ELF Family

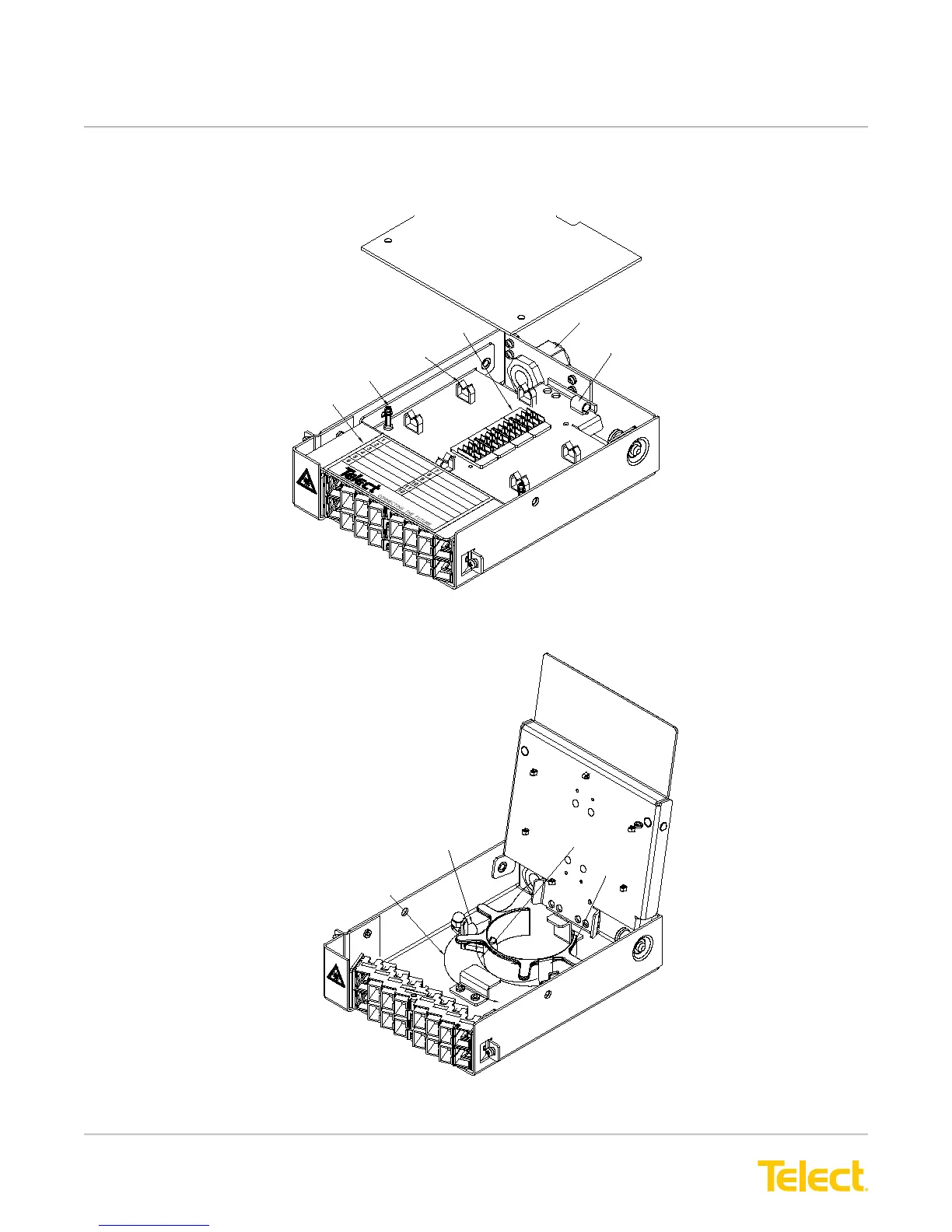

The module consists of a splice cassette mounted atop a subunit entrance compartment. (See the following
illustrations.) The splice cassette is covered by a transparent plastic cover.
Outer Race for Subunit
Inner Race for Pigtails
Spool
Subunit Clamp (2)
Designation Label
Top Cover
Splice Holders
Splice Deck
Subunit Clamp
Nylon Clips (6)
Adapters (12)
Compression Connector
Split Stud (2)
Figure 33 - Subunit Entrance Compartment
