Telect ELF-9716-1900 - ELF 8-Termination DSX-1, BNC I;O (Model 1008-1200); Figure 13 - Model 1008-1200 Dimensions

© Telect, Inc., All Rights Reserved, 124317-10 A0
1.509.926.6000 :: telect.com
19
ELF System
Copper / Fiber :: ELF Family
2.2 ELF 8-Termination DSX-1, BNC I/O (Model ELF-1008-1200)
Eight-circuit network element BNCs on the rear and corresponding cross-connect pineld and Bantam-style patch
and monitor jacks on the front. Pineld provides shield grounds for each circuit. Screws for mounting module to an
ELF chassis or lockable wall-mount enclosure are included.
Circuit Designation
Label
Jumper
Tie-Down Bar
Cross-Connect Pins
8-Termination Module
DSX-1 Bantam
Jacks
Network Element BNC Jack Field
0.45 (11.5)
5.50
(139.7)
5.11 (129.7)
1.63
(41.3)
0.55
(13.9)
Note: Dimensions are in in. (mm)
Top View
5.86 (148.8)

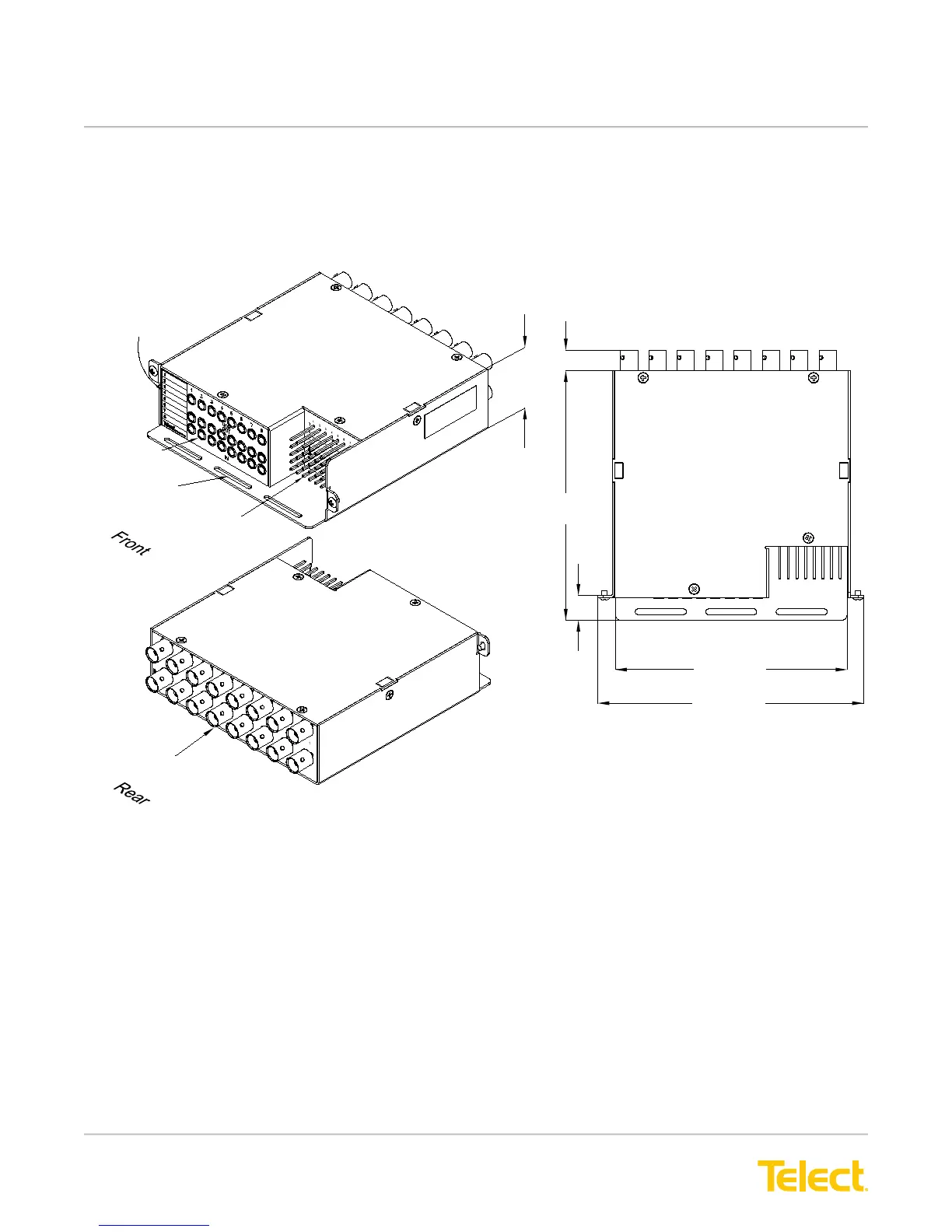

Figure 13 - Model ELF-1008-1200 Dimensions
