ELF System
Copper / Fiber :: ELF Family
2.5 ELF 6-Termination DSX-1, RJ48C I/O (Model ELF-3006-1800)
Six-circuit network element and cross-connect RJ48Cs, along with Bantam-style patch and monitor jacks, are
all on the front. Screws for mounting module to an ELF chassis, wall-mount bracket, or lockable wall-mount
enclosure are included.
Circuit Designation
Label
Jumper
Tie-Down Bar
6-Termination Module
DSX-1 Bantam
Jacks
Network Element RJ48C Jack Field
4.25
(108.0)
5.11 (129.7)
1.63
(41.3)
0.55
(13.9)
Note: Dimensions are in in. (mm)
Cross-Connect RJ48C Jack Field
Top View
5.86 (148.8)
1
2
3
4
5
6
8
7

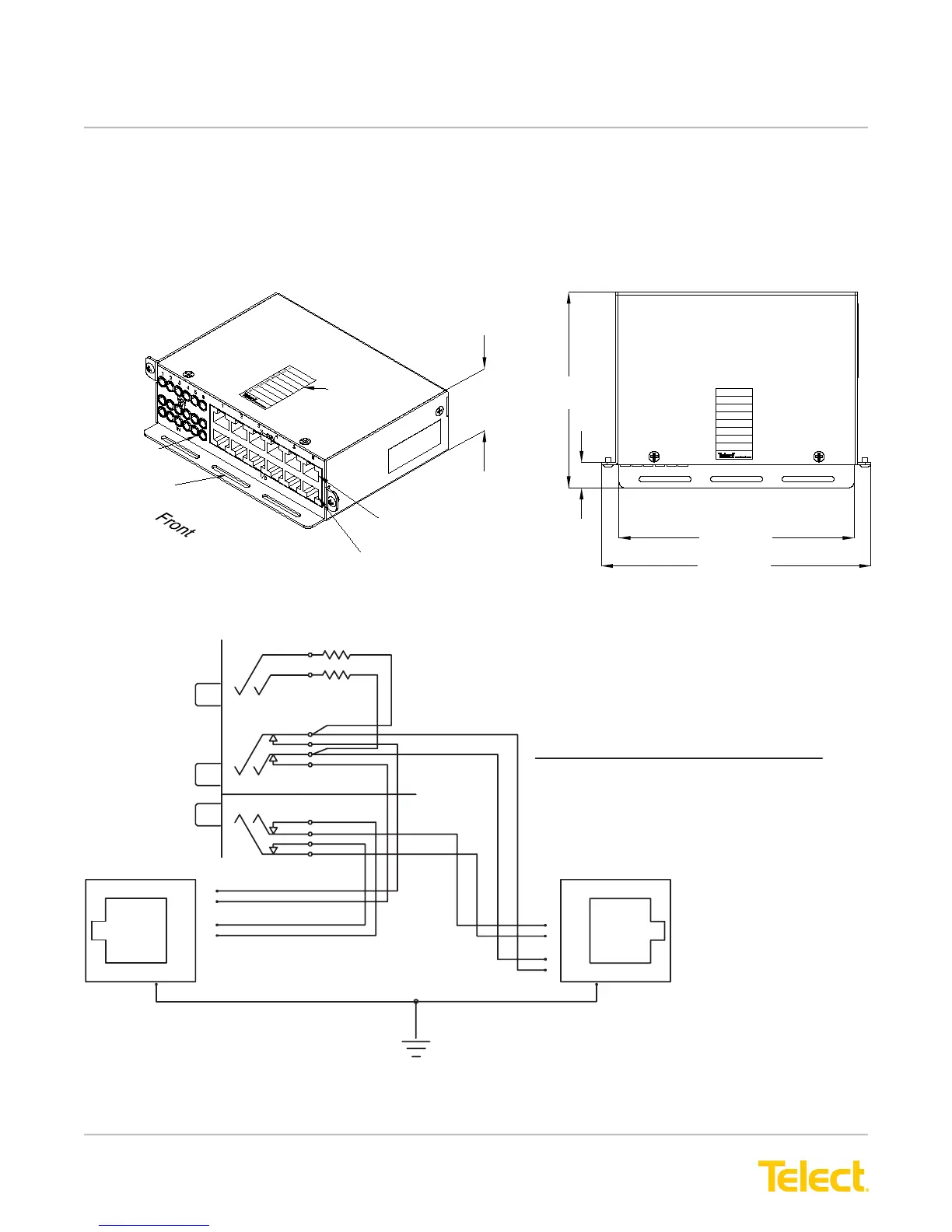

Figure 19 - Model ELF-3006-1800 Dimensions
R
T
R
T
IN
OUT
CHASSIS GND.
R 1
RJ SHIELD GND.
8
1
4
6
7
5
3
2
3
T
2
4
IN
6
7
8
R
T
5
OUT
(TYPICAL FOR ALL CIRCUITS)
RESISTOR VALUE = 475 ohm
R2
R1
MON
OUT
IN
REFERENCE SCHEMATIC
X-CON
I/O
Figure 20 - Model ELF-3006-1800 Reference Schematic
