1.3.4 ELF Lockable Wall-Mount Enclosure (Model ELF-0000-0800)
Wall-mount enclosure, designed initially for one ber
ELF module, accommodates any rear-and/or
front-access ELF module. Model ELF-000-0800
includes a lockable access door, ideal for co-locations.
Wall-mounting and grounding hardware are not included.

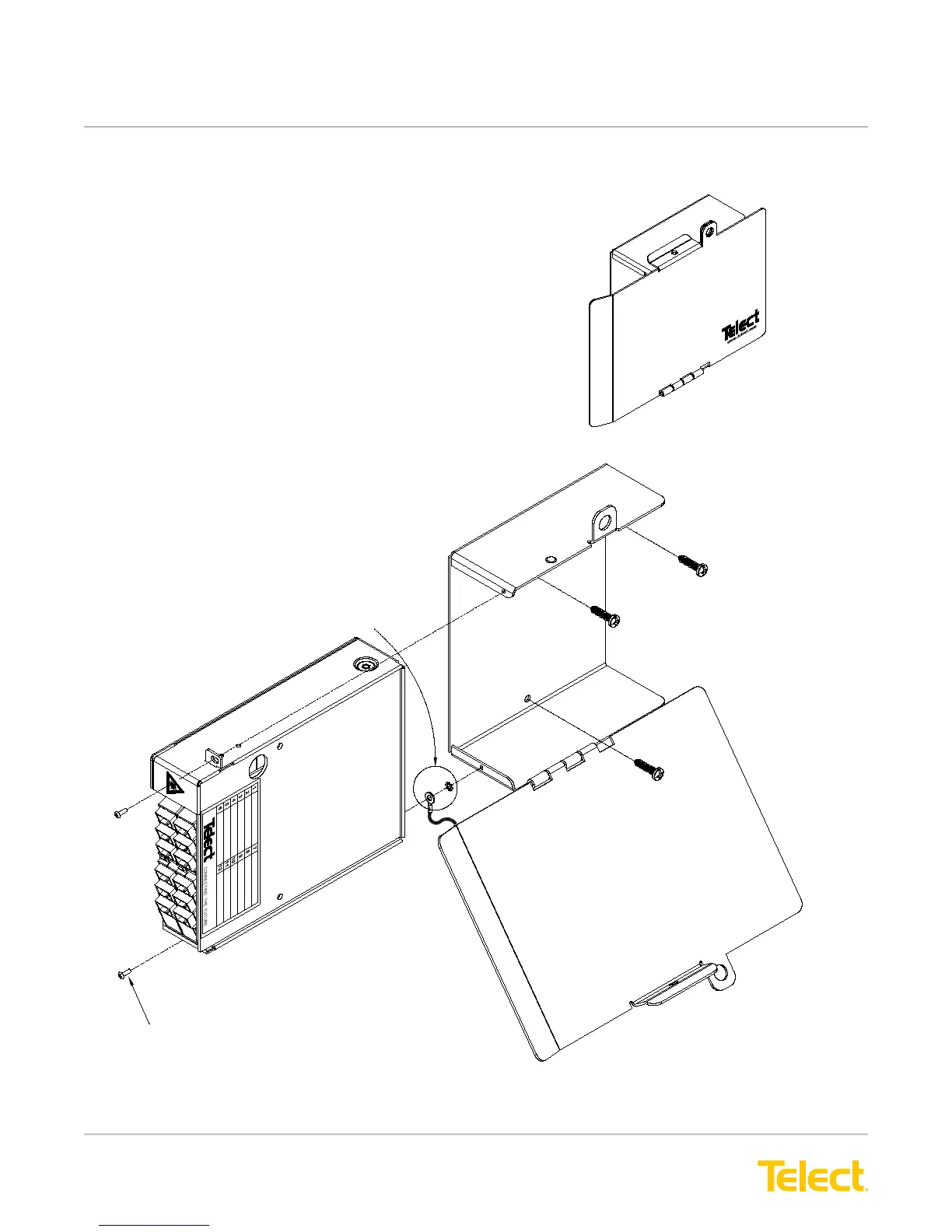

The following illustration shows a typical installation.
Screws are supplied with ELF Module
ELF Module
(Typical)
Mounting screws are not supplied
Ground Strap & Lock Washer
are not supplied
Figure 9 - ELF Lockable Wall-Mount Enclosure
