ELF System
Copper / Fiber :: ELF Family
2.3 ELF 8-Termination DSX-1, RJ48C I/O (Model ELF-1008-1800)
Eight-circuit network element RJ48Cs on the rear and corresponding cross-connect pineld and Bantam-style
patch and monitor jacks on the front. Pineld provides shield grounds for each circuit. Screws for mounting
module to an ELF chassis or lockable wall-mount enclosure are included.
Circuit Designation
Label
Jumper
Tie-Down Bar
Cross-Connect Pins
8-Termination Module
DSX-1 Bantam
Jacks
Network Element RJ48C Jack Field
0.09 (2.4)
5.50
(139.7)
5.11 (129.7)
1.63
(41.3)
0.55
(13.9)
Note: Dimensions are in in. (mm)
Top View
5.86 (148.9)

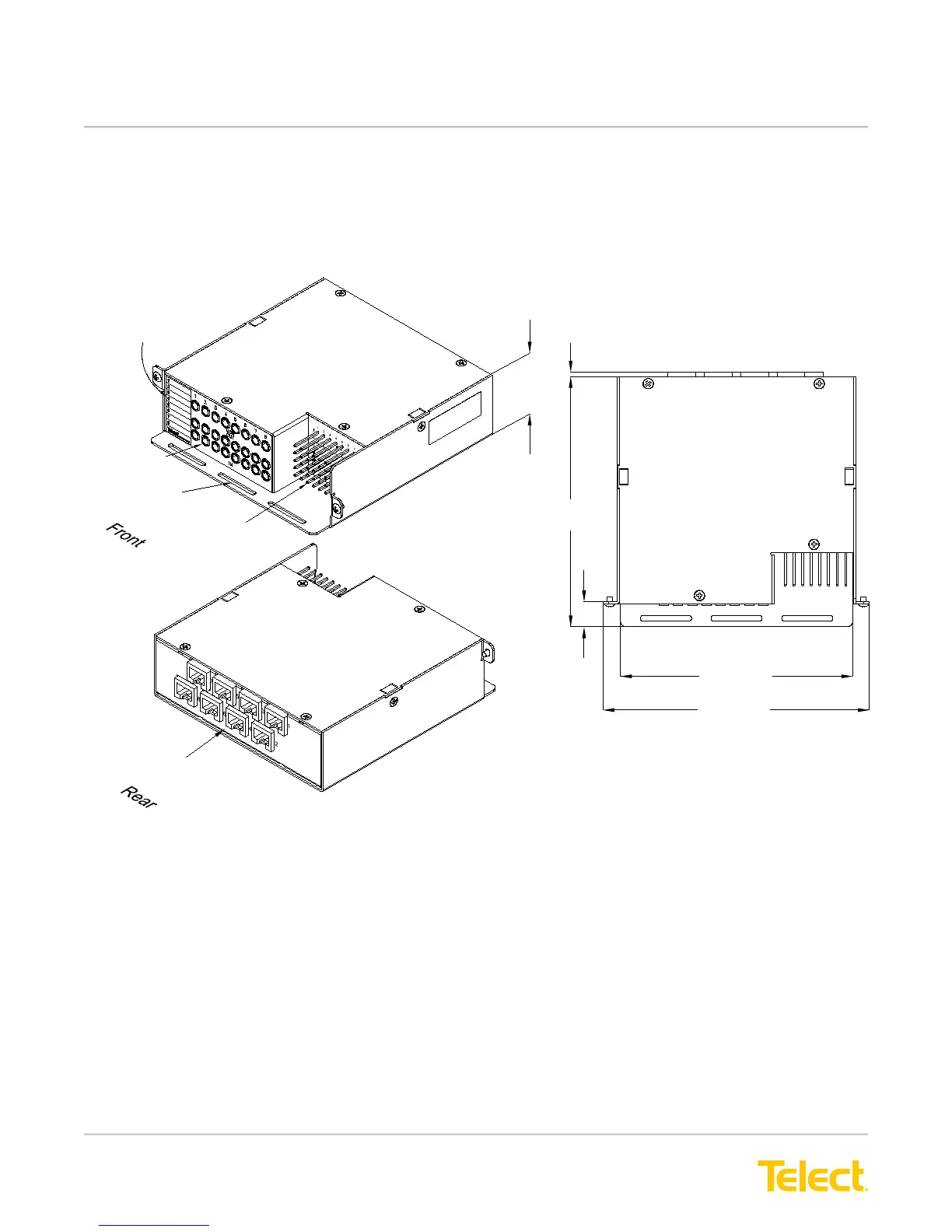

Figure 15 - Model ELF-1008-1800 Dimensions
