ELF System
Copper / Fiber :: ELF Family
3.2 ELF 1-Termination DSX-3, TFA BNC I/O (Model ELF-3206-1900)
Circuit Designation
Label
Jumper
Tie-Down Bar
1-Termination Module
DSX-3 Mini-WECO
Jacks
5.50
(139.7)
5.11 (129.7)
1.63
(41.3)
0.55
(13.9)
Note: Dimensions are in in. (mm)
Top View
0.098 (2.5)
BNC Jacks
5.86 (148.8)

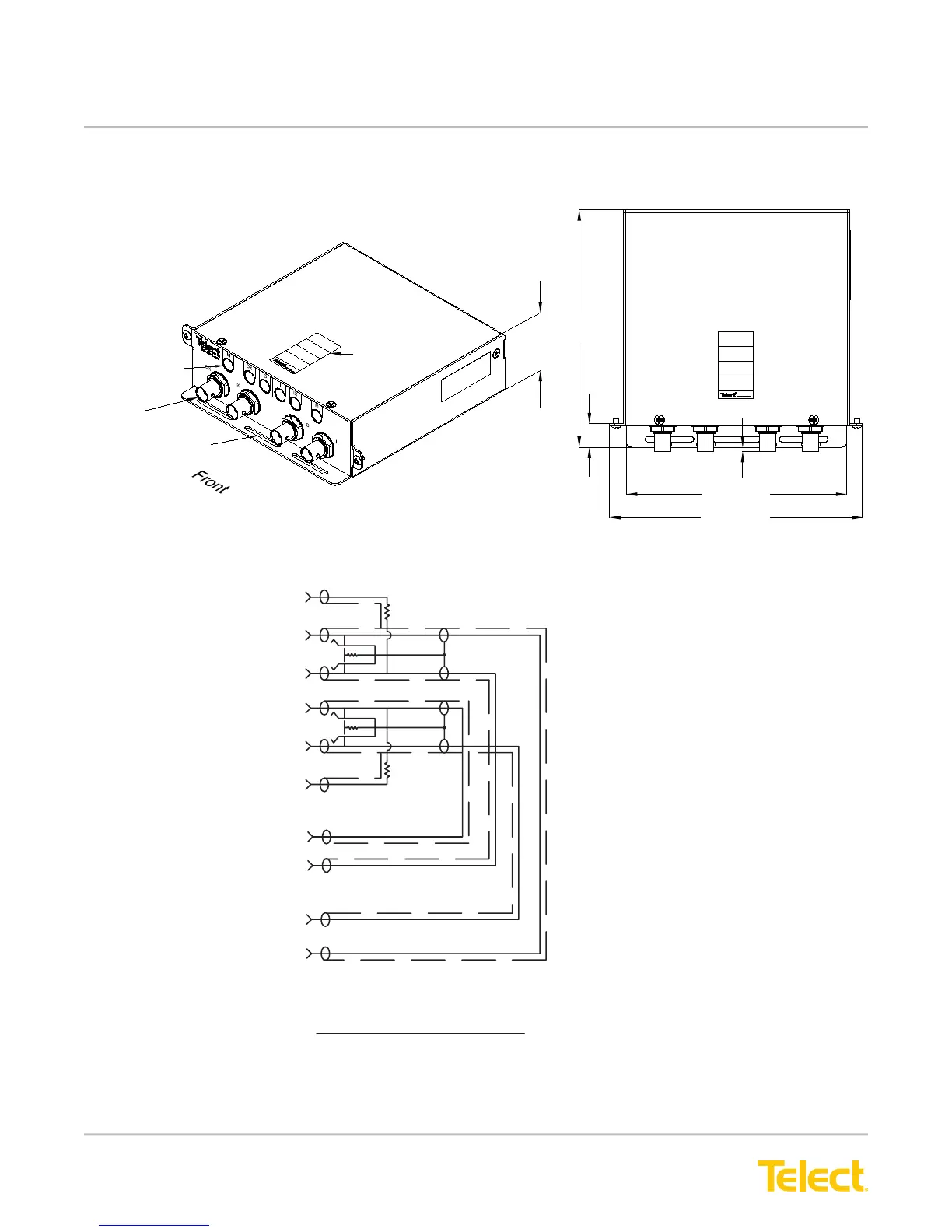

Figure 27 - Model ELF-3206-1900 Dimensions
O
I
OX
IX
MON
FRONT
R2=768 OHM 1/4W
R1=75 OHM 1/4W
R1
R2
R1
MON
R2
OX
IX
REAR
O
I
REFERENCE SCHEMATIC
Figure 28 - Model ELF-3206-1900 Reference Schematic
