34
ELF System
Copper / Fiber :: ELF Family
Top Cover
Spool
Cable Clamp

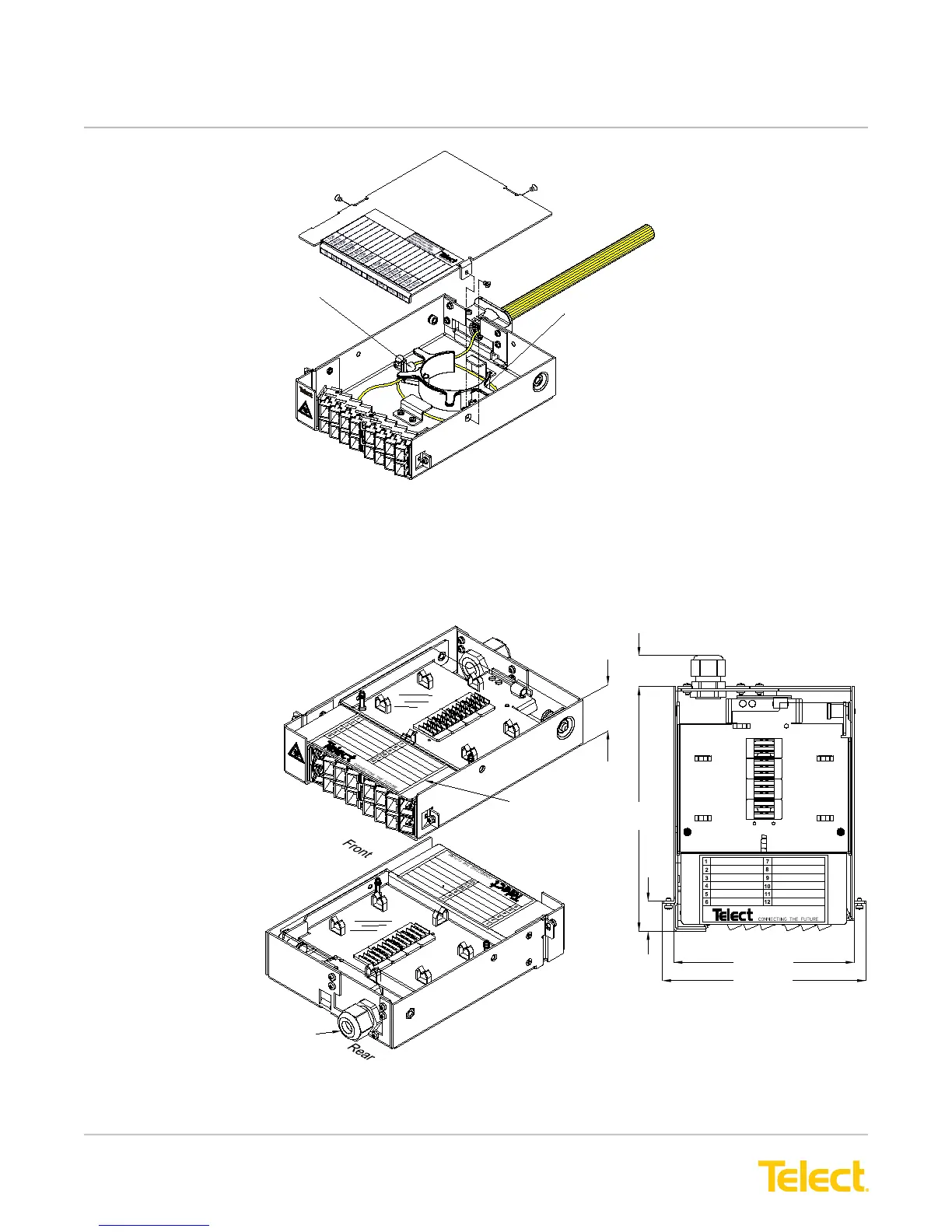

Figure 30 - ELF Patch Module (Model ELF-PC12-SCxx, Typical Cabling
4.2 ELF Fiber Splice/Patch Modules (Model Series ELF-SP12-XXPT)
The following illustration shows an ELF-SP12-XXPT.
Circuit Designation
Label
0.90 (22.9)
7.21
(183.1)
5.24 (133.0)
1.63
(41.3)
0.87
(22.0)
Note: Dimensions are in in. (mm)
Top View
Fiber Patch Adapters
12-Termination
ELF Fiber Splice/Patch Module
Gland-Style Compression Connector
for 12-Strand IFC/OSP Subunit
5.90 (148.8)
Figure 31 - Model Series ELF-SP12-XXPT Parts & Dimensions
