ELF System
Copper / Fiber :: ELF Family
Chapter 3: ELF DS3 Modules
Telect offers two DSX-3 ELF Modules. Both feature 6-port mini-WECOs for temporary I/O and cross-connect
patching, testing, and monitoring, along with BNC connectors for normal NE I/O and cross-connections:
• ELF 2-Termination DSX-3 (Model ELF-3206-1200) has the NE BNCs on the rear, and
• ELF 1-Termination DSX-3 (Model ELF-3206-1900) is total front access (TFA).
Both modules t the ELF chassis and Lockable Wall-Mount Enclosure. Mounting screws for
installing on the chassis or enclosure are included.
3.1 ELF 2-Termination DSX-3, Rear BNC I/O (Model ELF-3206-1200)
Circuit Designation
Label
Jumper
Tie-Down Bar
BNC Jacks
2-Termination Module
Mini-WECO
Jacks
0.47 (11.9)
5.50
(139.7)
5.11 (129.7)
1.63
(41.3)
0.55
(13.9)
Note: Dimensions are in in. (mm)
Top View
5.86 (148.8)
1
2
3
4
5
6
8
7

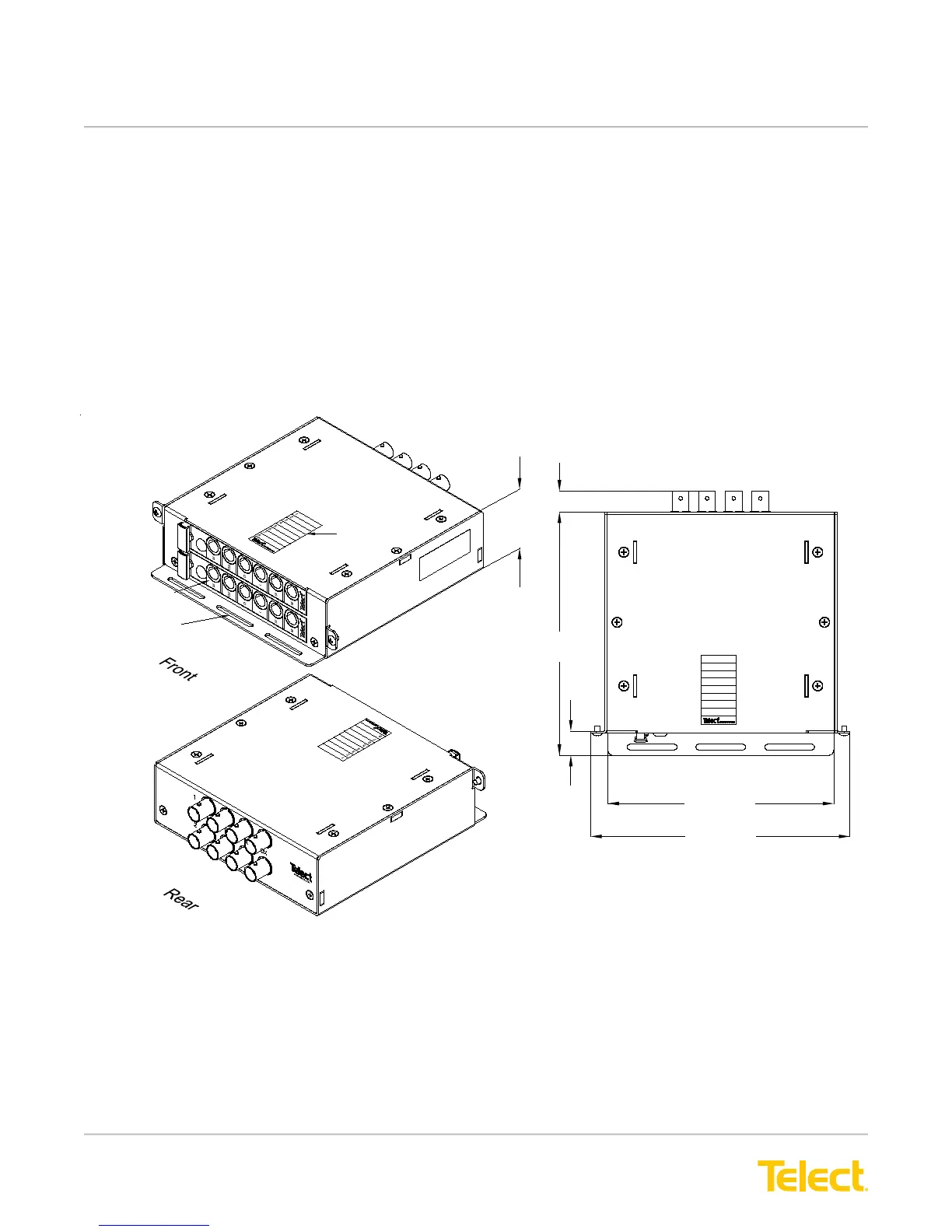

Figure 25 - Model ELF-3206-1200 Dimensions
