Telect ELF-9716-1900 - Figure 34 - ELF Splice;Patch Module

© Telect, Inc., All Rights Reserved, 124317-10 A0
1.509.926.6000 :: telect.com
36
ELF System
Copper / Fiber :: ELF Family
You can purchase Fiber Splice/Patch Modules with 12
factory-installed 900 μm pigtails for splicing to
ber strands from an incoming IFC/OSP subunit.
The opposite ends of factory-installed pigtails are
terminated on the rear face of the ber adapter at
the front of the module.

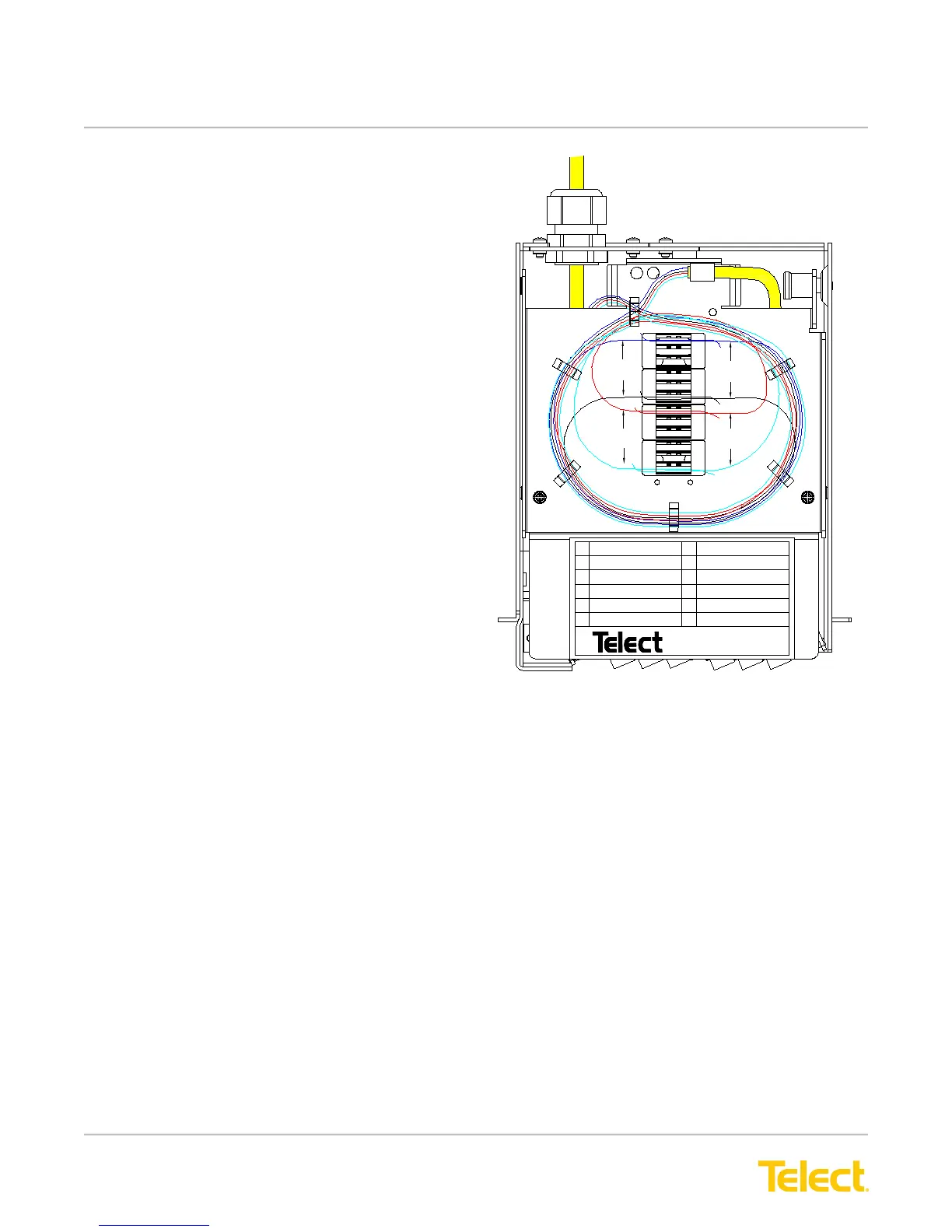

The illustration on the right shows a nished
installation with 12 ber strands (Model ELF-SP12-SCPT).
connect ing t he f ut ur e
12
11
10
9
8
7
6
5
4
3
2
1
1
6
7
12
From
Adapters
From
Adapters
From
Subunit
Subunit
From
1
6
7
12
Figure 34 - ELF Splice/Patch Module
(Model ELF-SP12-SCPT
Typical Cabling)
