2.4 TTE Combo Module LED Indication
The LED indication of TTE Combo communication module has the following meaning during
operation.
The LED Indication has the following meaning:
PSTN
(green)
The PSTN line is missing or it is unavailable.
The PSTN line is available.
RSSI
Signal
Strength
The signal strength is poor (from -111 to -91 dBm).
The signal strength is good (from -90 to -70 dBm).
The signal strength is very good (from -69 to -51 dBm).
Main
Receiver
Blinking
Slow
(1 sec)
Green
Successful connection with the Main Receiver station via the Main
IP address and the Main communication media (GPRS/LAN).
Red
No connection with the Main Receiver station. Possible problem
with the used communication media GPRS or LAN.
• Possible troubles with the SIM card (GPRS media):
1. The SIM card is missing.
2. The SIM card could not register to the available GSM/GPRS
network.
3. Active PIN code for verification.
• No signal/link.
• Wrong configuration (Server type, IP, Port, Encr. Key, etc.)
Orange
There is at least 1 transmitted and received (confirmed) event in a 3
sec. time interval.
Fast
(0.25 sec)
Green-
Orange
Successful connection with the Main Receiver station via the Main
IP address and the Backup communication media (GPRS/LAN).
Receiver
LED indication for the Backup Receiver station. The description is the same as the one for
the Main Receiver.
RJ-45
(LAN
connector
indication)
LAN Status
①
LED LAN Action. The LED is blinking when there is activity on the
link; otherwise, the LED is on.
②
LED LAN Link. The LED is lit on when there is a link to an Ethernet
device; otherwise the LED is off.

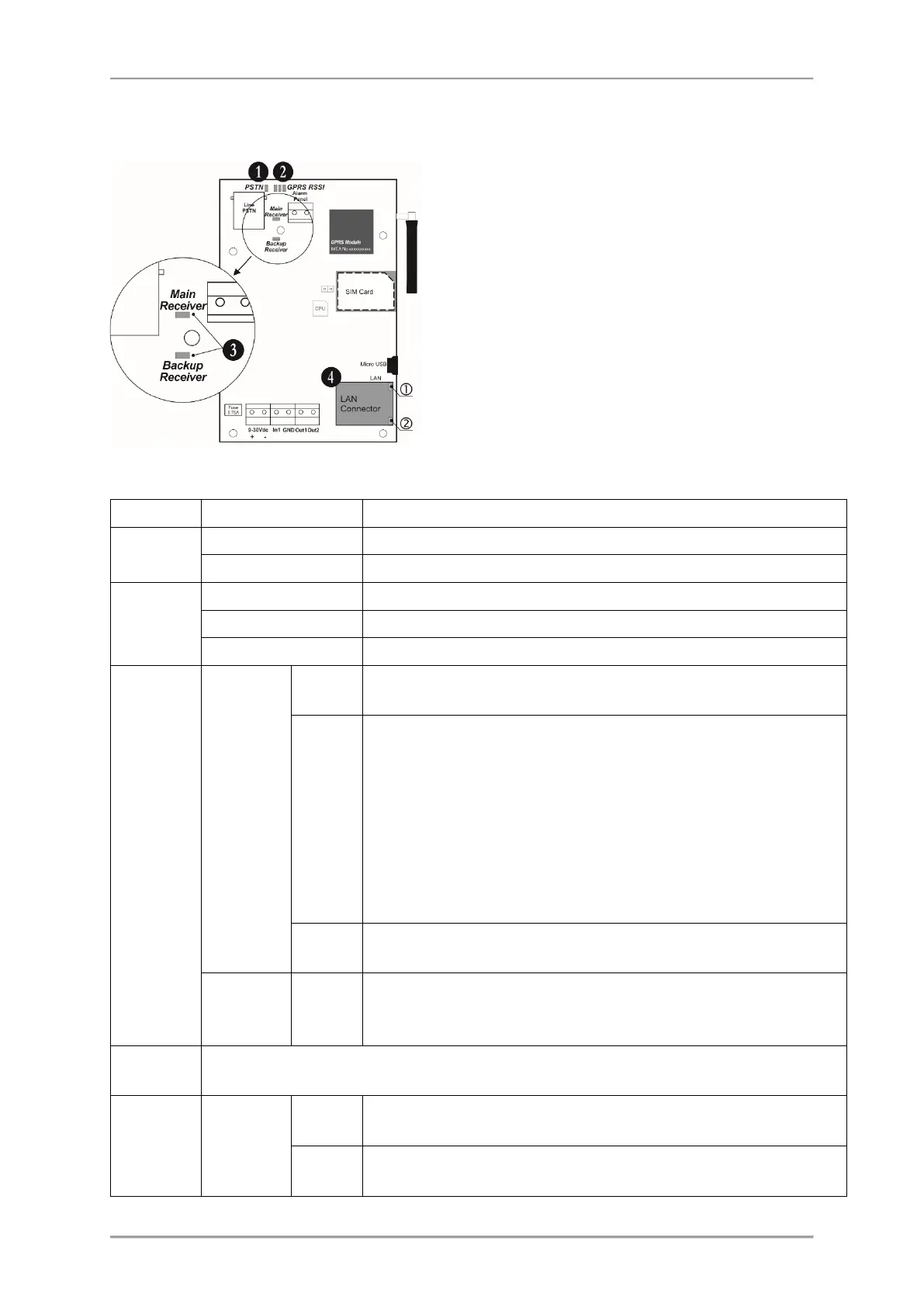

1. PSTN - LED for presence of PSTN telephone line.
2. RSSI – 3 LEDs for the signal strength of the available
GSM/GPRS network.
3. Main/Backup Receiver - LED for Main/Backup
Receiver status.
4. LAN LEDs – LEDs for LAN network status.
