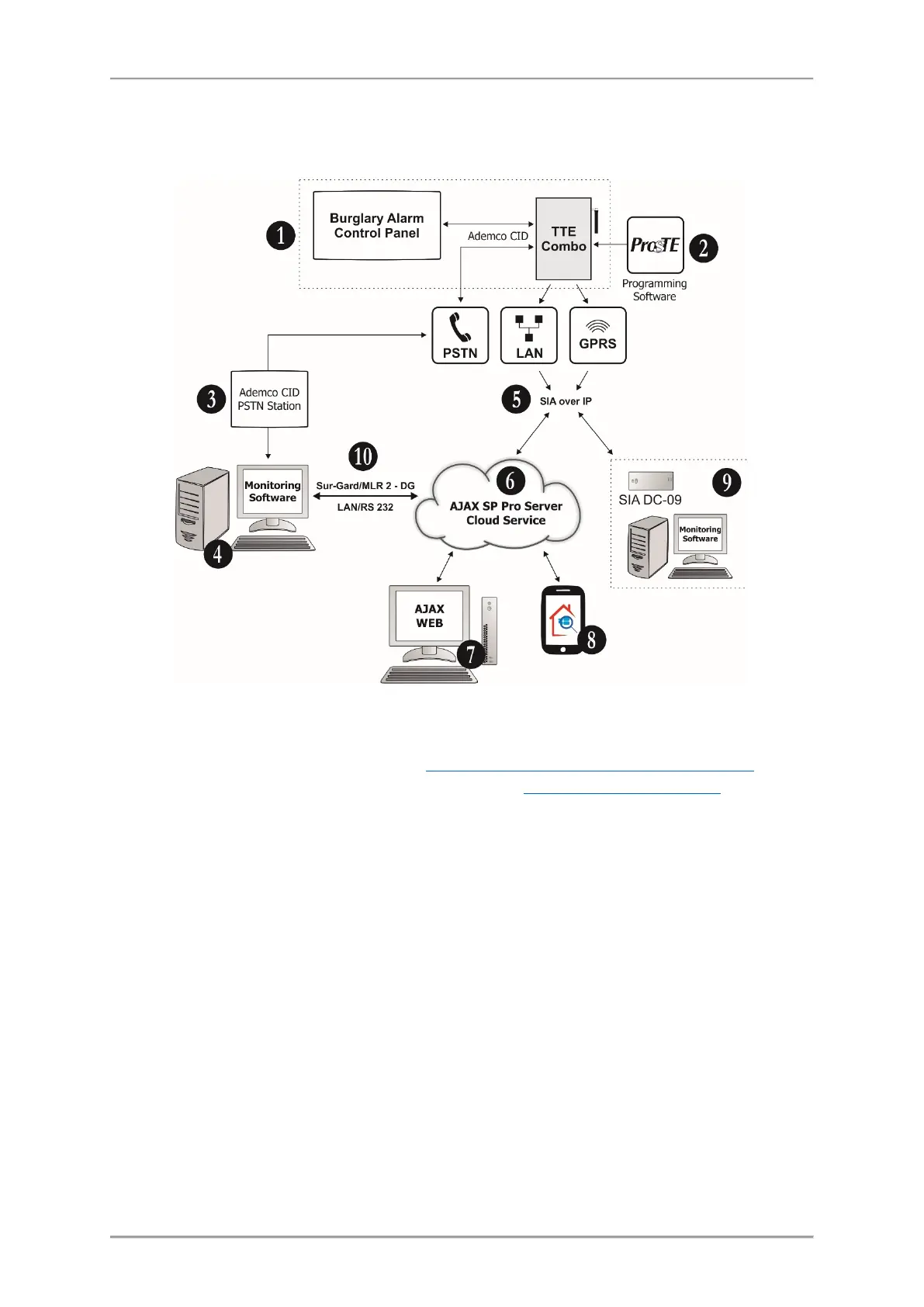

1.1.3 Operation Block Diagrams
Operation with a Burglary Alarm Control panel
1. TTE Combo communication module and burglary alarm control panel. The control panel is
compatible to transmit CID events – see item 2.1 Connection to Burglary Alarm Control Panel
.
2. Program the TTE Combo module with ProsTE – see item 3. Programming with ProsTE.
3. Standard telephone line connected to PSTN Station.
4. Monitoring station for receiving of events via RS232 communication protocol.
5. SIA over IP communication protocol.
6. AJAX SP Pro Server. This is a computer with installed AJAX SP Pro Server administrative interface.
Usually it is situated into a Monitoring station of a service security provider.
7. AJAX WEB. This is a User interface (web site) for management and control of panels and
communication modules produced by Teletek Electronics JSC. After registration the User can review
the status and to control (switch ON/OFF) the outputs of TTE Combo attached to his account.
8. Mobile TTE. This is a smartphone application for management and control of panels and
communication modules produced by Teletek Electronics JSC, which are attached to a User account
at AJAX WEB. The smartphone application is compatible with iOS and Android platforms.
9. SIA DC-09 Alarm Receiver and Monitoring Software. Monitoring station of a service security
provider operating with SIA-DC09 IP reporting to monitoring software.
10. SURGARD MLR 2 communication protocol, providing message transfer via LAN or RS 232
between AJAX SP Pro server and Monitoring software.
