ME310G1 Hardware Design Guide
1VV0301588 Rev. 16 Page 39 of 95 2021-10-27
5.4 Unconditional Shutdown

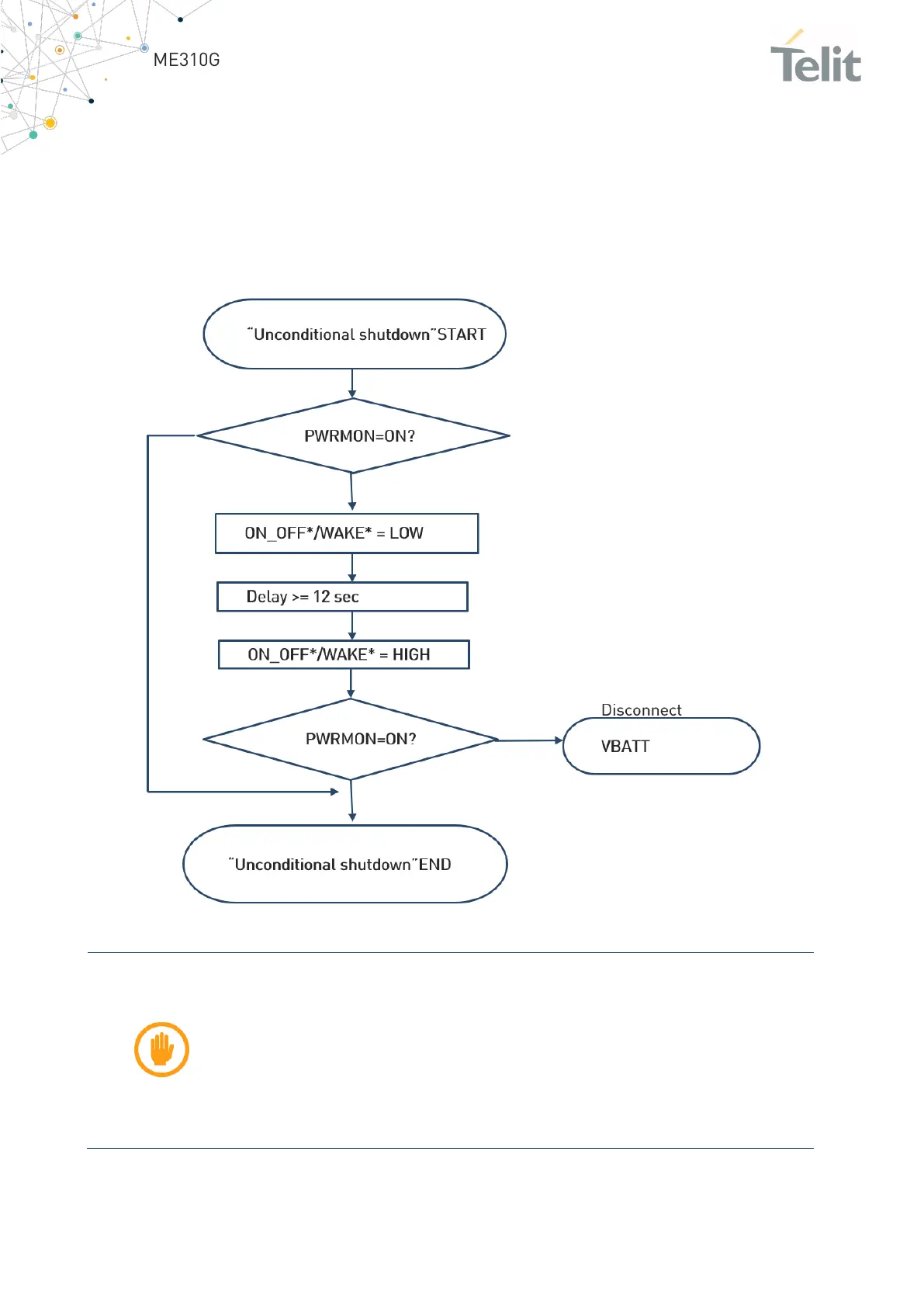

The following flow chart shows the proper procedure for an unconditional shutdown of
the Telit ME310G1 module, except in PSM mode. When the procedure is completed the
module is reset and stops all operations. After the release of the line, the module is
unconditionally shut down, without performing any disconnection from the network in
which it is registered.
Figure 8: Unconditional shutdown of ME310G1
Warning: The Unconditional Hardware SHUTDOWN through the
activation of VBATT Power, must not be used during the normal
shutdown operation of the device. It does not disconnect the device
from the network and may damage the memory contents. It must be
performed only as an emergency exit procedure.
INCORRECT SHUTDOWN Procedure may void the warranty.
