10.1.3 Recommendations for ME310G1-W1
This section illustrates the application positioning inhibit area for ME310G1 models W1.
To facilitate reworking, the recommended placement is shown in figure below.
It is recommended to avoid contact of mechanical parts with an SMT component of the
module.

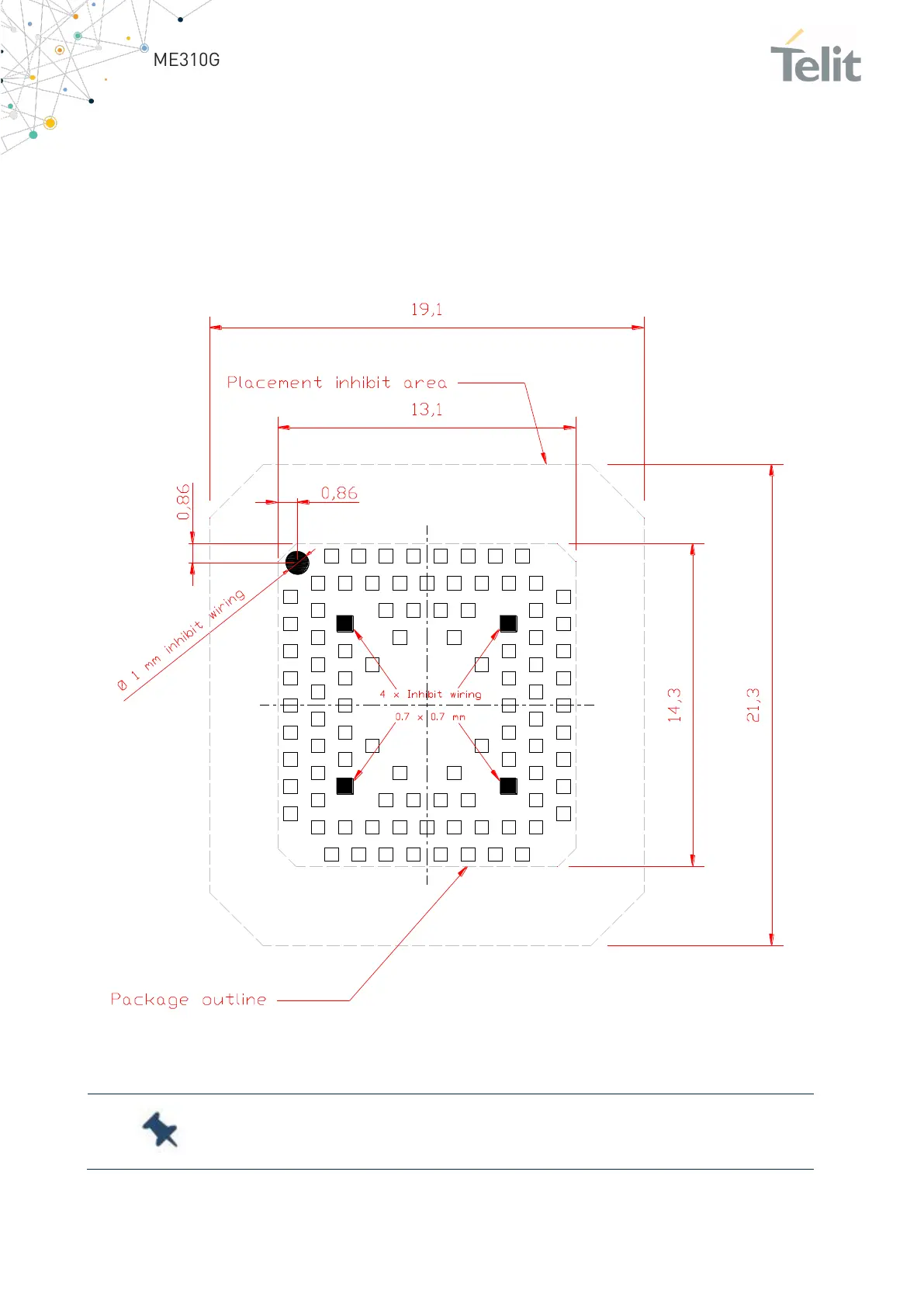

Figure 24: ME310G1-W1 Recommendations
Note: The region under INHIBIT WIRING must be clear from signal or
ground paths.
