ME310G1 Hardware Design Guide
1VV0301588 Rev. 16 Page 61 of 95 2021-10-27
Not Subject to NDA
9 MECHANICAL DESIGN
9.1 Drawing
9.1.1 ME310G1-W1

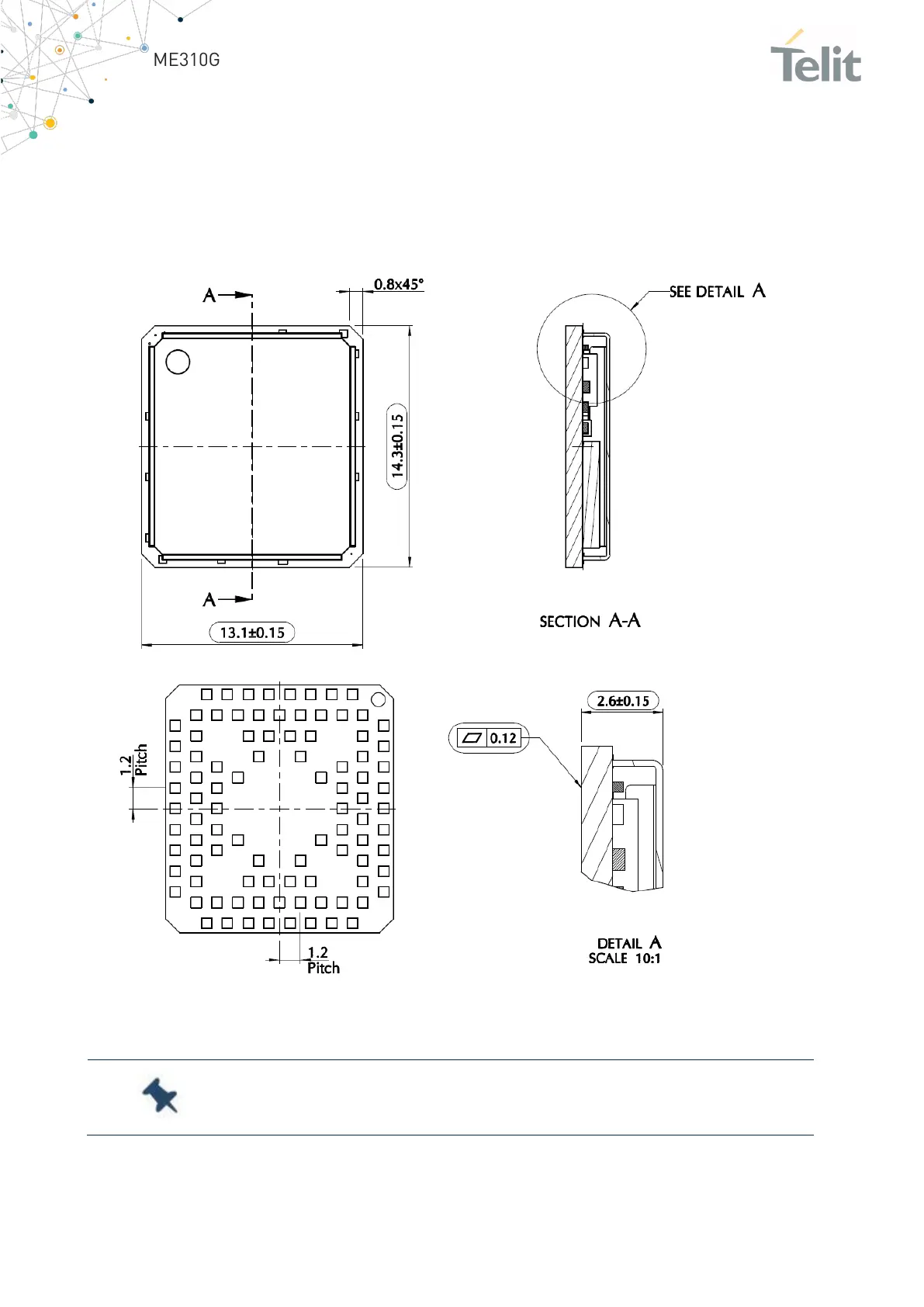

Figure 18: Mechanical Drawing of ME310G1-W1
Note: Dimensions are in mm. General Tolerance ±0.1, Angular
Tolerance ±1°, The tolerance is not cumulative.
