10 APPLICATION PCB DESIGN
ME310G1 modules have been designed to be compliant with a standard lead-free SMT
process.
10.1 Footprint
10.1.1 ME310G1-W1

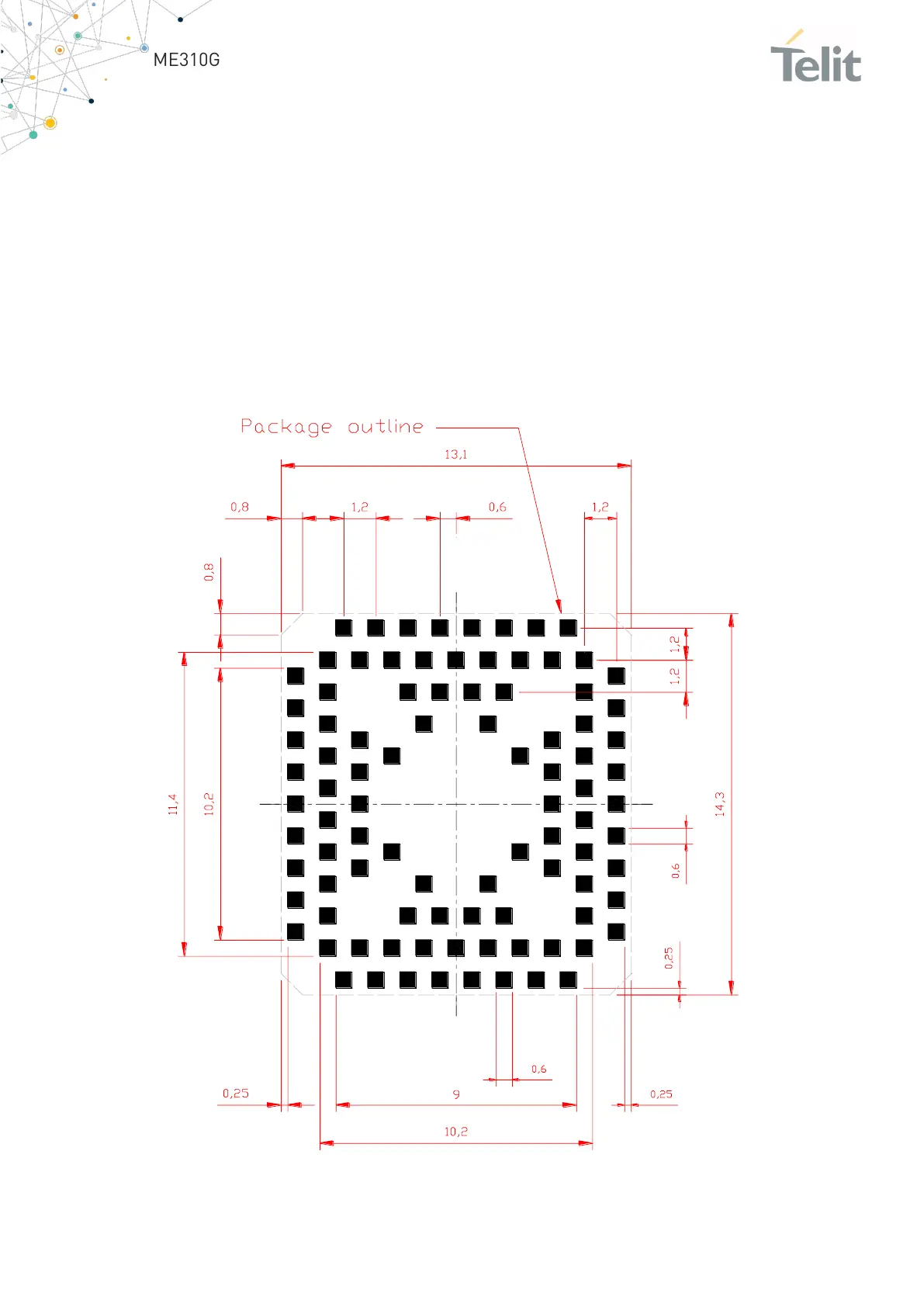

COPPER PATTERN (top view)
Figure 20: Copper Pattern (top view)
