32 MA365 • Rev. A2
Tellabs
®
6325 Edge Node 2 Installation Information

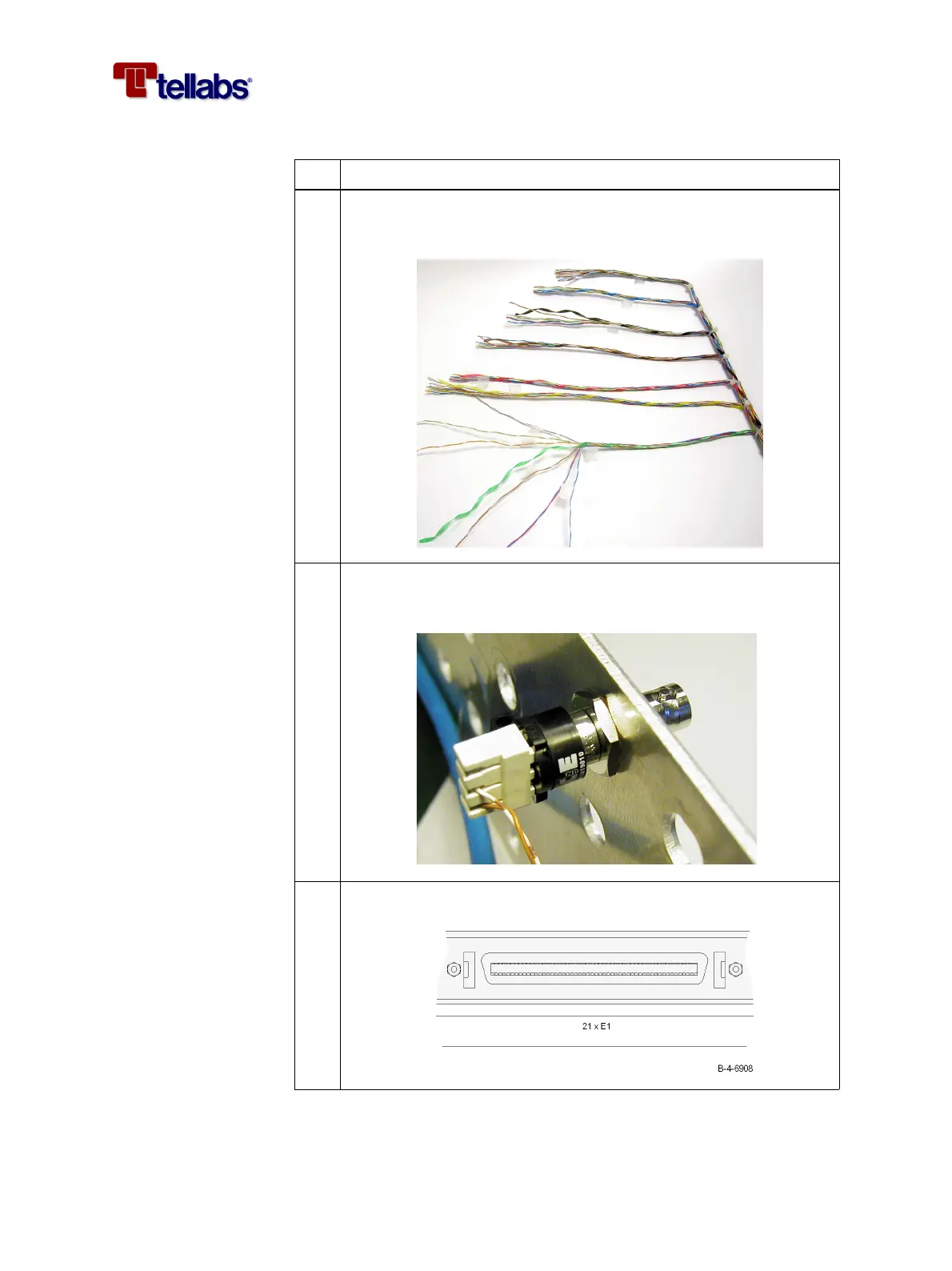

2 Arrange the wires of the open ended PIM1 cable (WK-503Y-zz.z-01).
The figure shows the cable arranged with the seven binders each
holding six twisted pairs.
3 Connect the wires to the baluns according to the table shown in ‘Pin
designations on PIM1 connector and color coding of the E1 cable’ on
page 64.
4 Connect the cable to the connector (E1) on the PIM1 module
Step Action
