Brake System

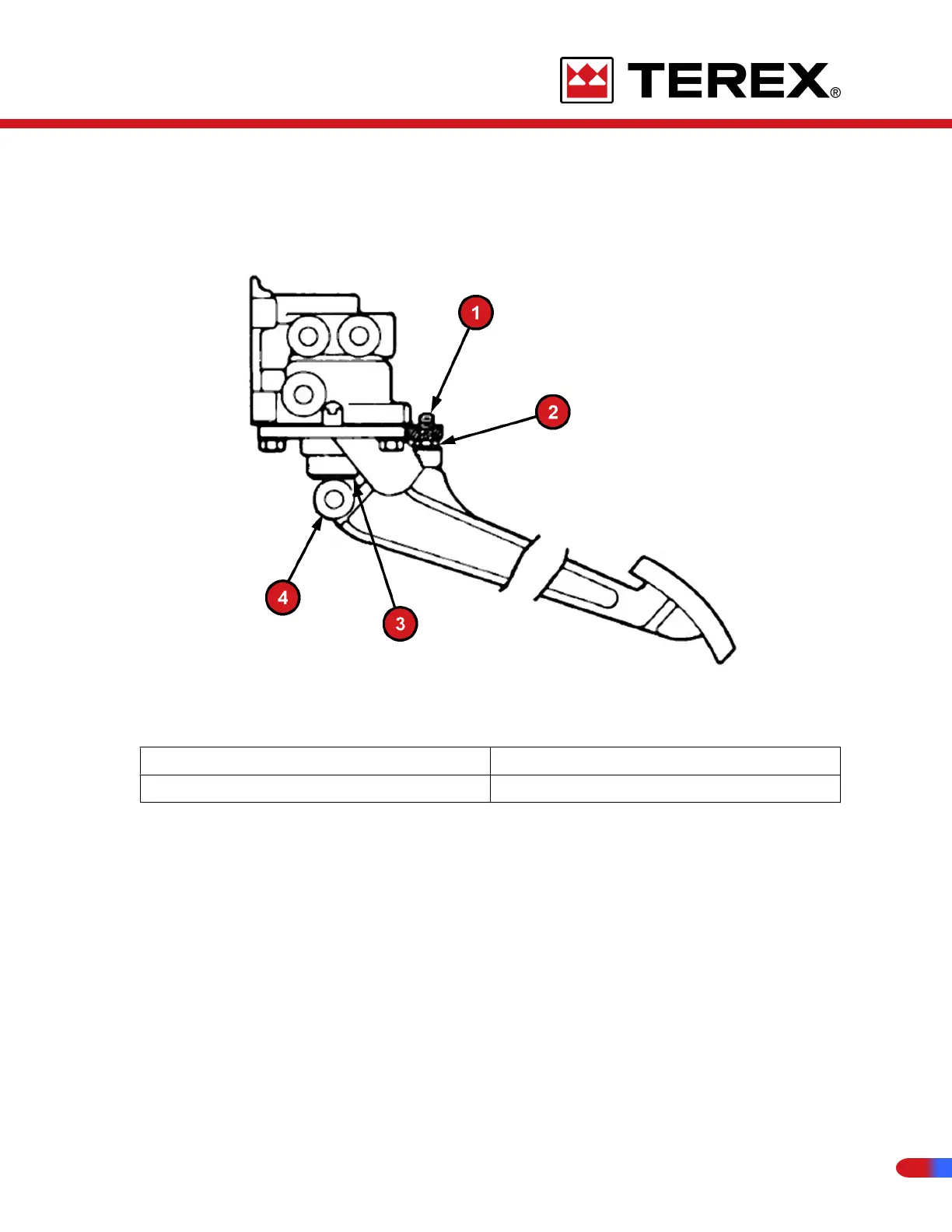

BRAKE PEDAL:
1. Adjusting Screw 3. Plunger
2. Jam Nut 4. Roller
MAINTENANCE
Every 3 months or quarterly:
1. Lubricate fulcrum and roller pin with oil.
2. Free pedal travel should be checked as follows: Check to be certain plunger is in
contact with spring seat. The stop button should be adjusted so that the roller and
plunger just contact.
3. Apply oil or light grease between plunger and valve body. Do not overoil.
4. Clean exhaust check depending on type of service.
Every 12 months or annually:
1. Disassemble, clean parts with mineral spirits. Replace all rubber parts or any part worn
or damaged. Check for proper operation before placing vehicle in service.
