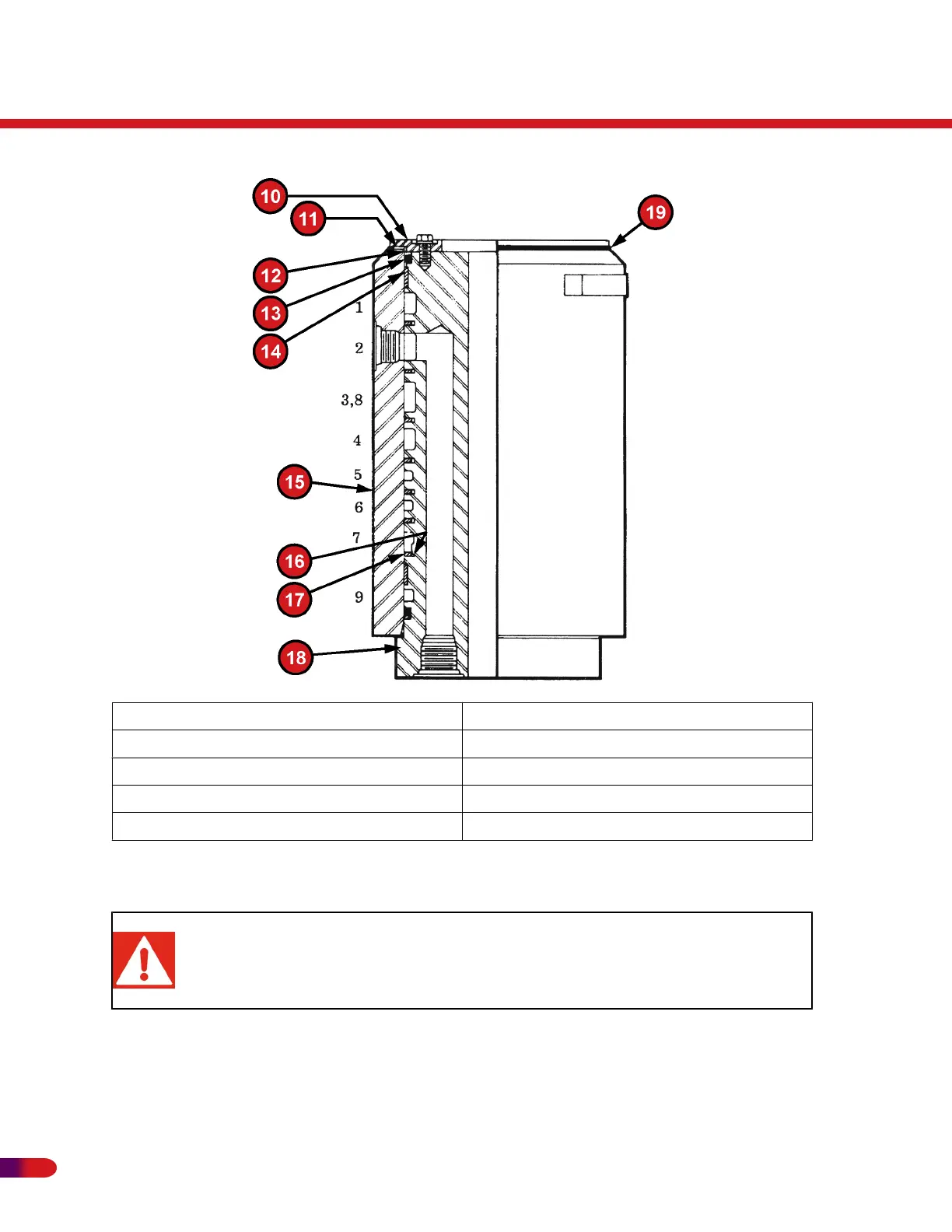

Rotary Manifold
10. END PLATE 15. CASE
11. THRUST WASHER 16. RECTANGULAR RING
12. BACK-UP RING 17. SEAL
13. "O" RING 18. SPOOL
14. WEAR RING 19. "O" RING
Use the following procedures when disassembling, inspecting, repairing, and reassembling
the rotary manifold.
AS SOON AS THE ROTARY MANIFOLD IS READY TO BE PLACED INTO
OPERATION, IT SHOULD BE SLOWLY ROTATED SEVERAL MINUTES TO
ALLOW ANY ENTRAPPED AIR TO ESCAPE AND TO FACILITATE REFORMING
OF SEALS THAT MAY HAVE TEMPORARILY DEFORMED DURING STORAGE.
All overhaul should be done in a clean, enclosed facility with personnel familiar with
hydraulic systems and cleanliness procedures.
DISASSEMBLY
The rotary manifold may be disassembled by removing the four capscrews and the top plate.
RT500
Service / Parts
250 REVISED:
