Axle Lockout System

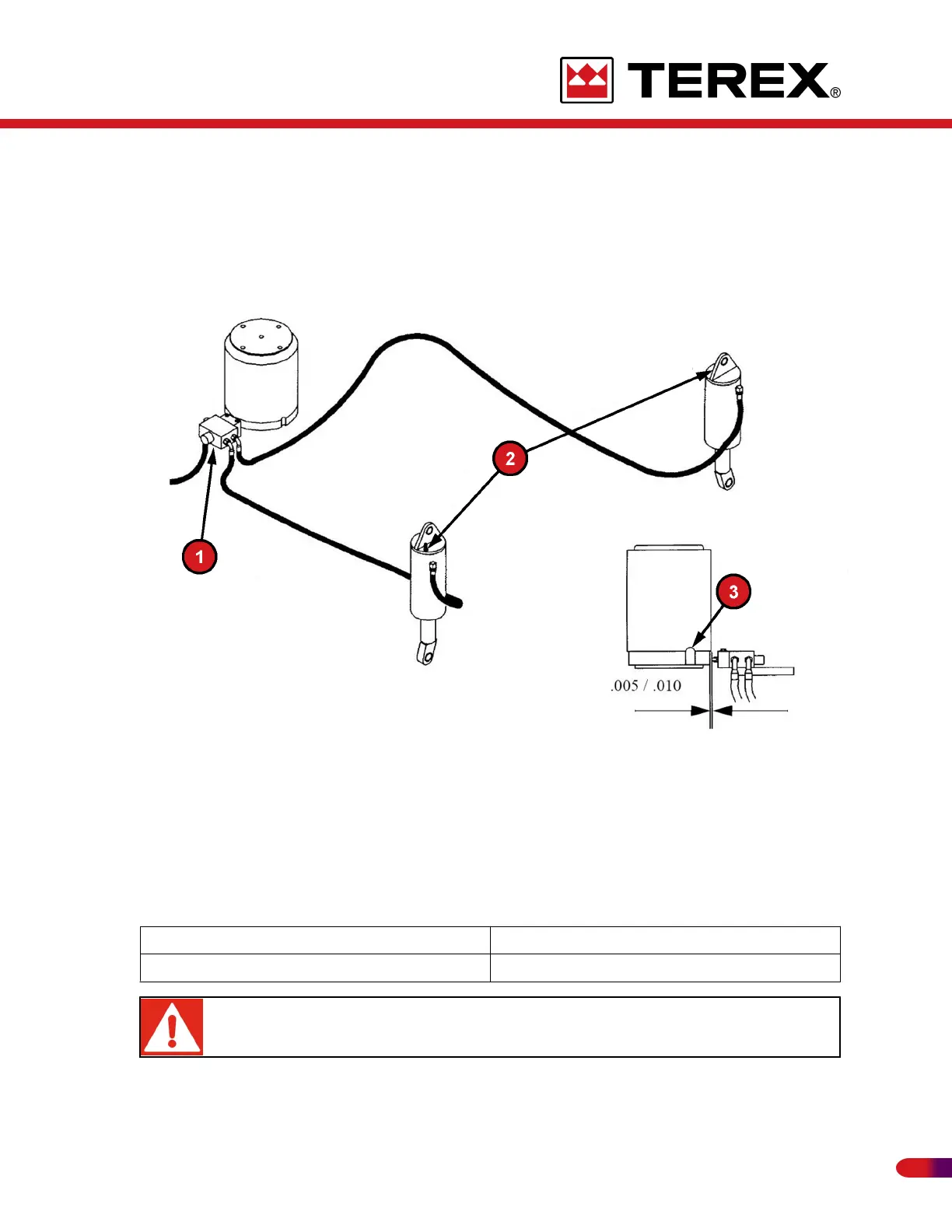

1. AXLE LOCKOUT VALVE 3. LOW POINT ON MANIFOLD
2. BLEED SCREWS
Air in the axle lock circuit decreases stability. Bleed the system immediately
whenever this occurs.
If the axle does not hold in the blocked position or oscillates when the upper structure is
swung 20 degrees from the travel position, bleed the system.
263
REVISED:
