Boom Alignment and Adjustment
BOOM ADJUSTMENT
The 126 foot boom installed on this machine must be kept in proper alignment and
adjusted as required. Boom lubrication intervals should also be used to inspect boom
alignment. Should adjustment be necessary use the following procedure:

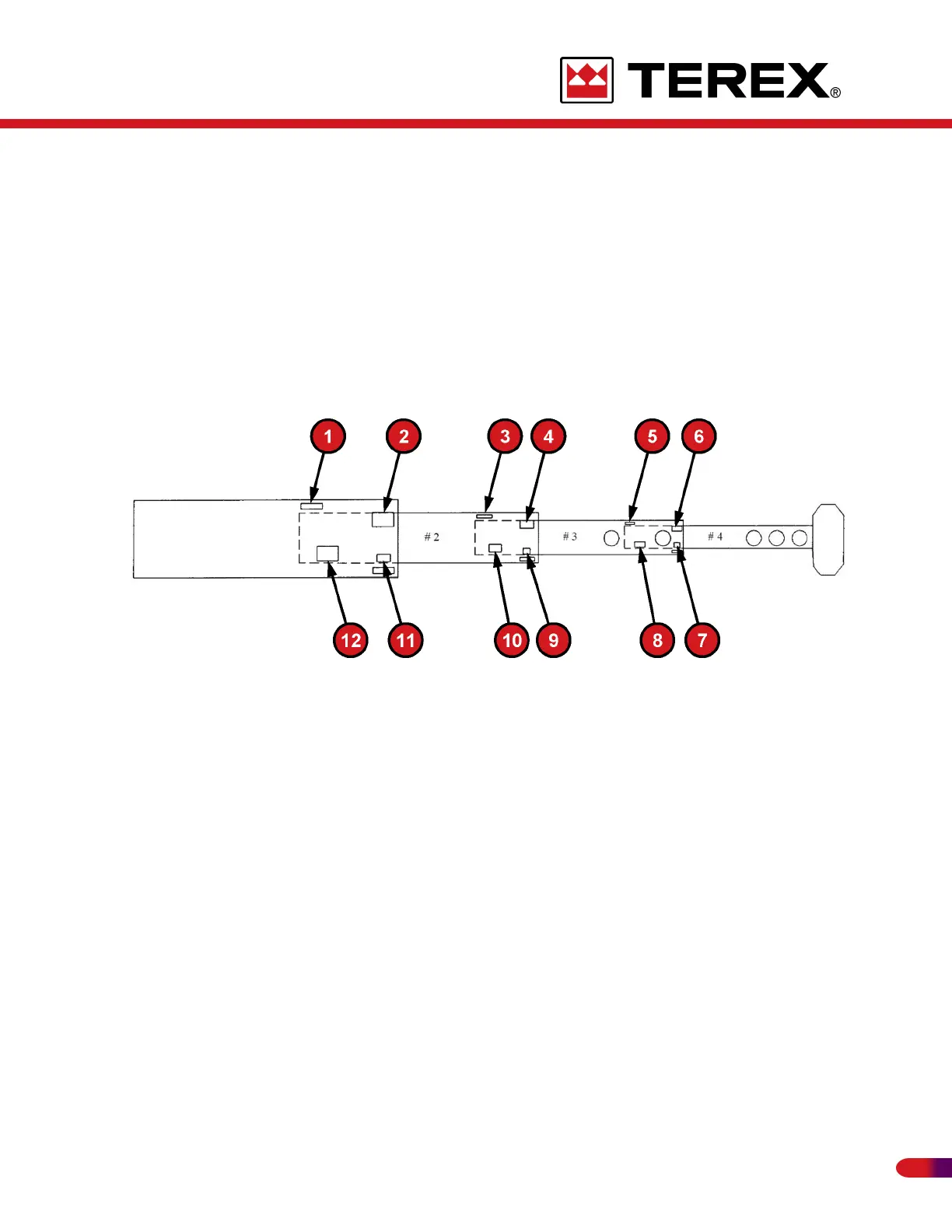

1. With the boom retracted and level, remove the top covers on the base section.
If pads “2”, “4”, and “6” are installed remove the shims. If pads “12”, “10”, and
“8” are installed, loosen the capscrews . The retaining bolts and eccentrics at
