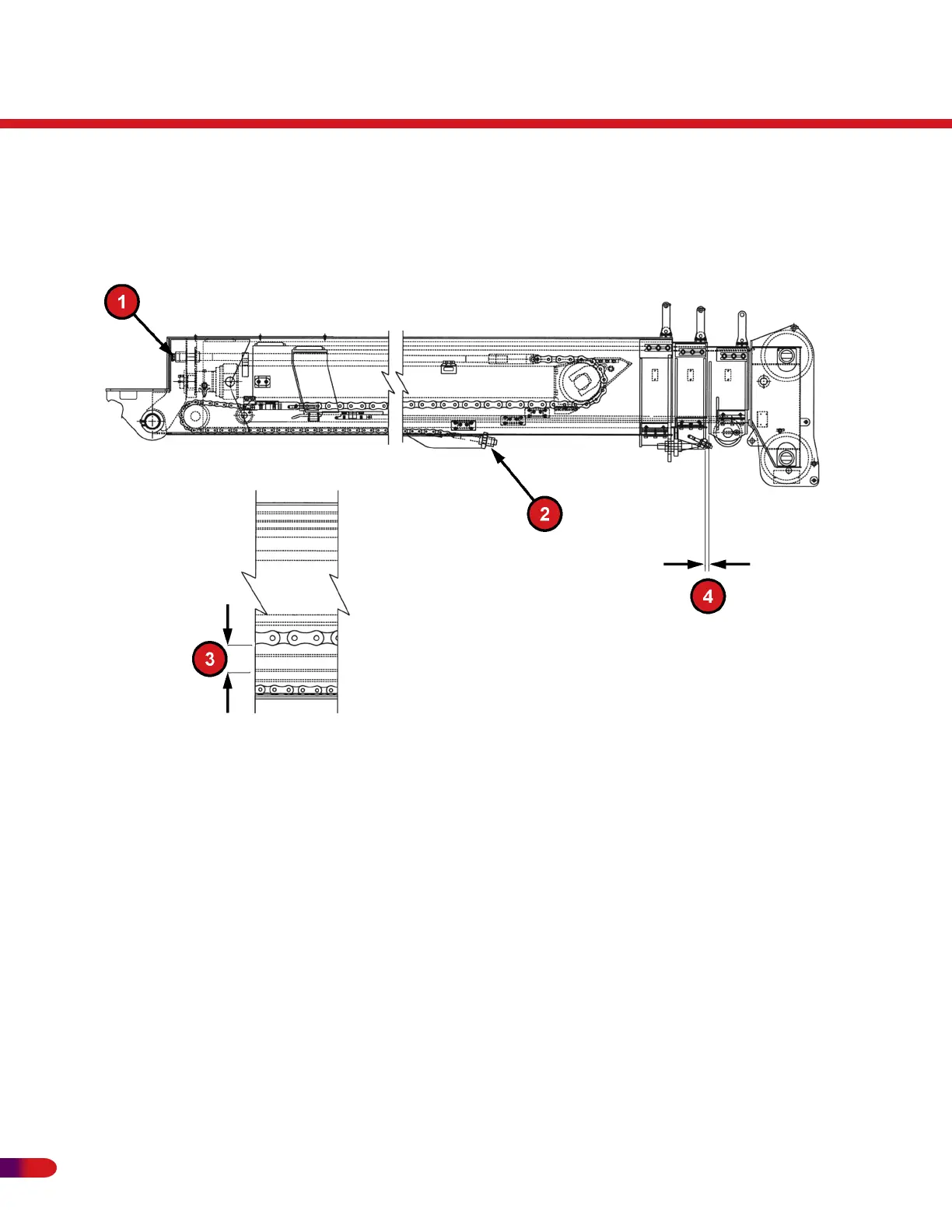

FOURTH SECTION EXTEND AND RETRACT CHAINS (4 SECTION BOOMS):
1. Fully retract the boom.
2. Measure the gap between the front of third section and the back of the tip
section. This gap should be .25 inch to .38 inch.
3. If adjustment is required, extend the boom approximately 1/2 way.
