1 Bumper should rest against the pedal.
2 Brake disks should begin to engage.
3 Brake discs should be fully engaged and
should hold at full engine RPM.
4
5
6 Swing brake cable should be adjusted and/
or brake pads may need replacing.
7
a. During normal operation, the swing brake pedal should be operating in the 4 to 5 click
range if the swing brake pedal is properly adjusted. If the swing brake pedal is
operating in the 6 or 7 click range during normal operation, the swing brake cable will
need to be adjusted.
The cables used on this machine are sealed. Never adjust a cable to the point
that the threads on the rod end are pulled into the seal.
NOTE: If the machine is not equipped with a swing brake pedal bumper on the
console frame, skip step “b”.

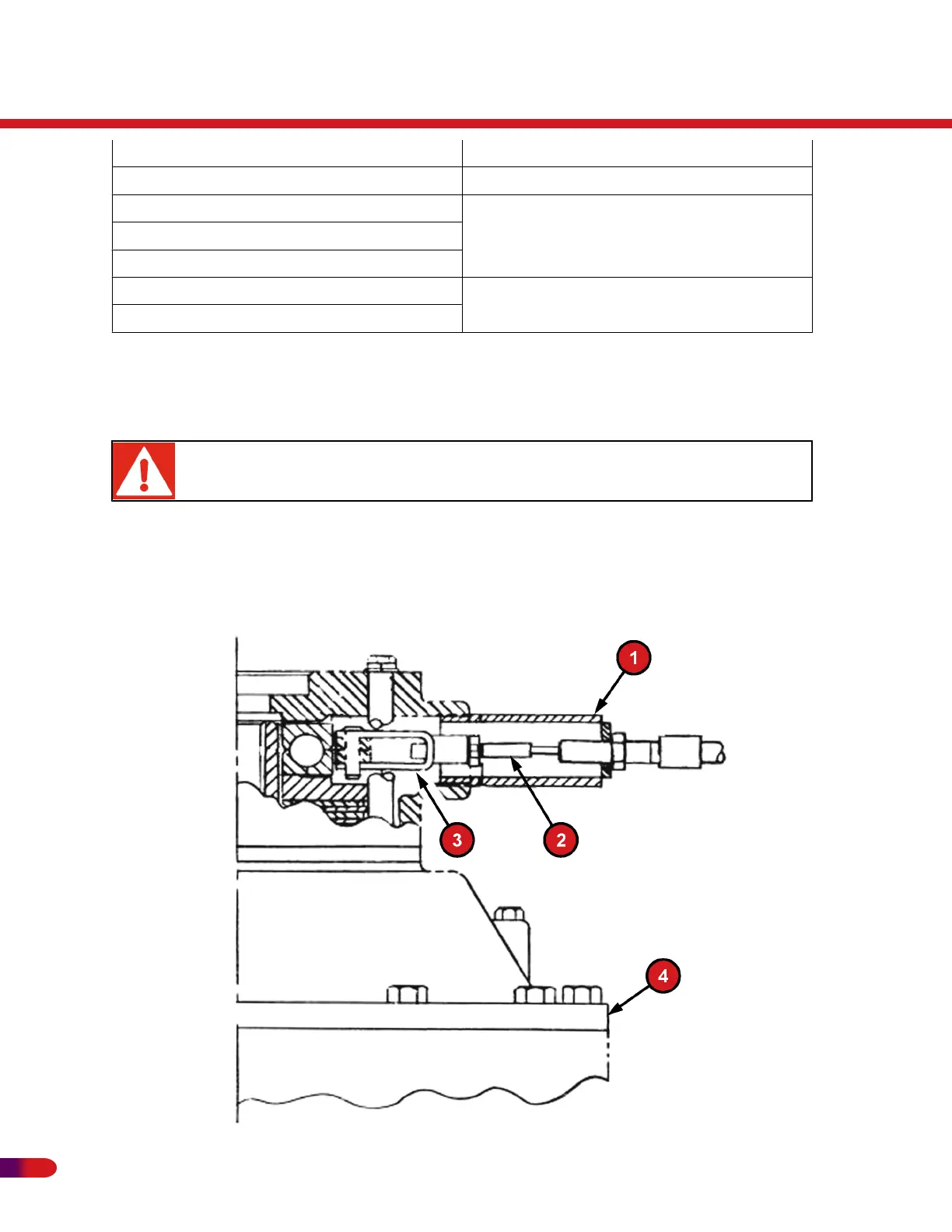

b. Refer to figure 1. Release the swing brake and move the swing brake pedal to the first
click position. Adjust the bumper to rest against the swing brake pedal.
RT500
Service / Parts
266 REVISED:
