Terex RT500-1 - Page 42

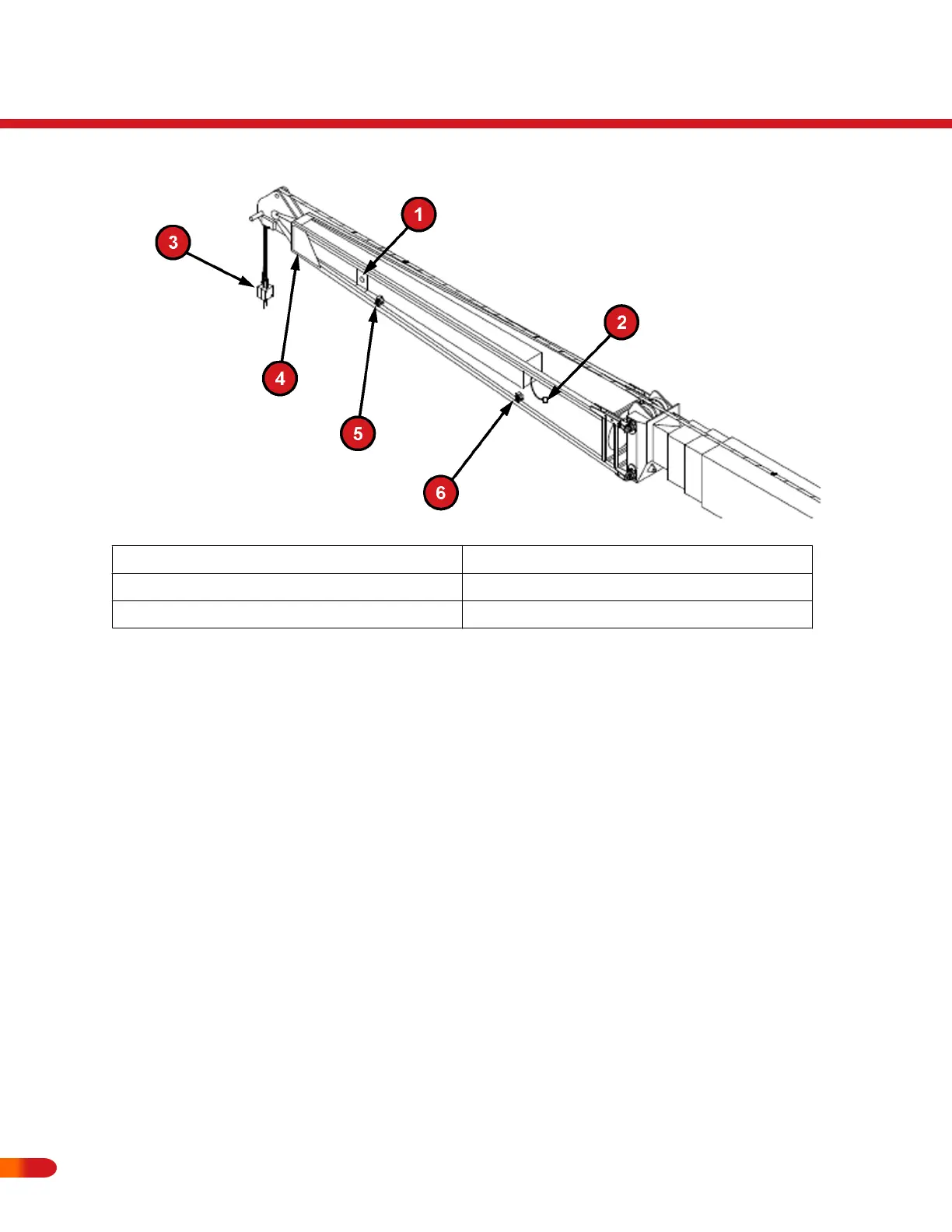

EXTENDING AND RETRACTING THE JIB PULLOUT SECTION
1 Pull Out Retaining Pin Hole 4 Attach Dead End of Rope
2 Pull Out Anti Two-block Plug 5 Anti Two-block Extended Socket
3 Two-Block Weight 6 Anti Two-block Retracted Socket
