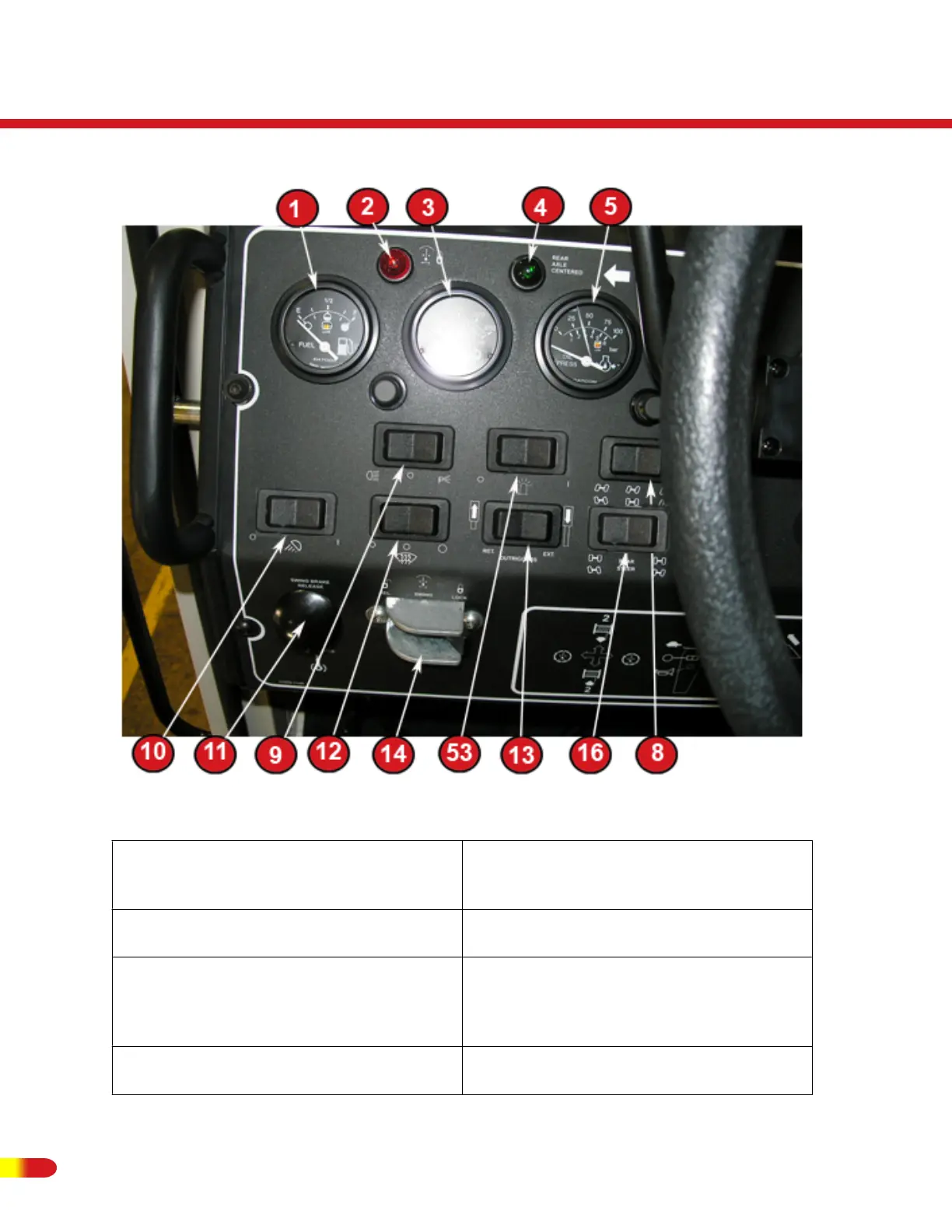

1. FUEL GAUGE - Graduated in quarters of
full tank.
9. DASH LIGHT SWITCH - Push left for dash
lights only, push right for dash lights and
head lights.
2. SWING LOCKED INDICATOR - Indicates
swing lock is engaged.
10. WORK LIGHT SWITCH - Push right to
turn on work lights.
3. ENGINE COOLANT TEMPERATURE
GAUGE - Measures engine coolant
temperature.
11. SWING BRAKE PEDAL RATCHET
RELEASE - Pull and lock to permit operation
of the pedal. Relase to allow pedal to be
locked in applied position.
4. REAR AXLE CENTERED INDICATOR -
Indicates rear axle is centered.
12. DEFROSTER FAN SWITCH - Push left
for “LO”, center for “OFF”, right for “HI”.
RT500
Description Of Machine and Controls
50 REVISED:
