13. The number of PARTS-OF-LINE 18. JIB STOWED ON BOOM
14. POINT OF LIFT, e.g. main boom,
auxiliary head or jib.
19. Indicates which WINCH will be used for
the pick.
15. AUXILIARY HEAD ON or OFF the crane. 20. Indicates which COUNTERWEIGHT is
fitted (if applicable).
16. Indicates JIB configuration in use. 21. TIRES creep, static, 2 1/2 MPH, and
RIGGING/TRAVEL mode.
17. MANUAL SECTION or ACTIVE TIP
extended (if applicable).
22. OUTRIGGERS full extension, mid
extension, or retracted.

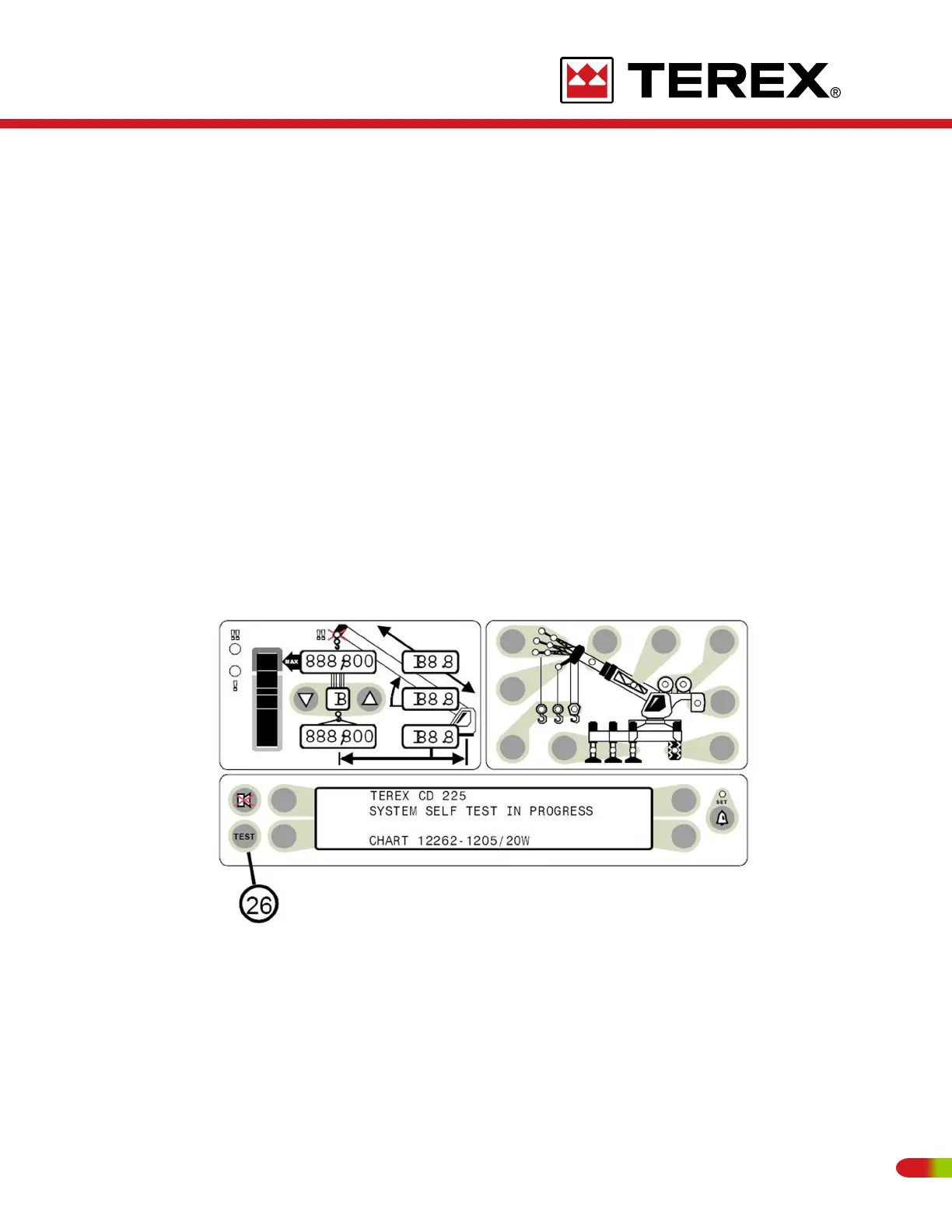

POWER UP SELF-TEST
75REVISED:
