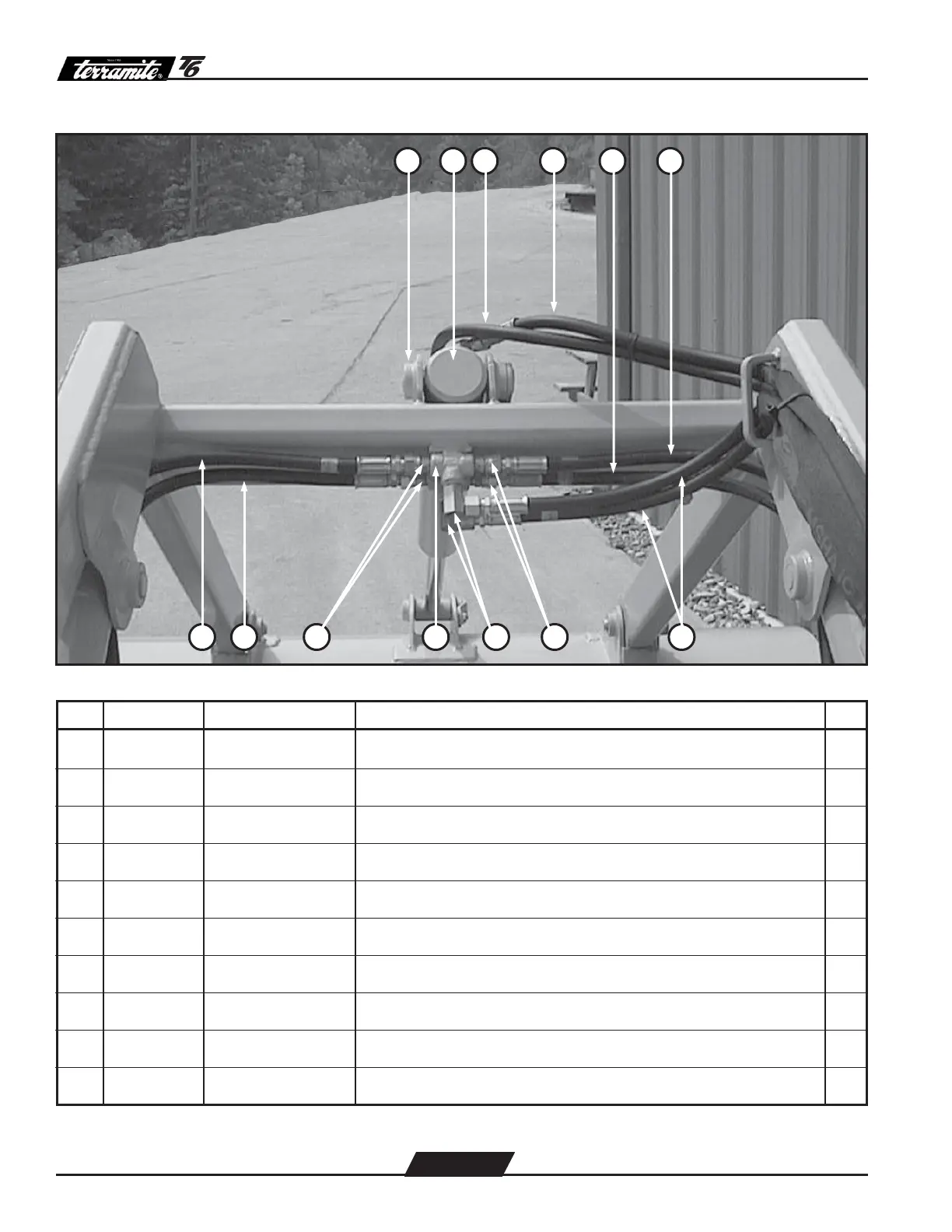

Terramite T6 - View from Front with Loader Arm Assembly Raised

Copyright © 1999 Terramite Corporation
6 5 8 10 9 8 7
1 2 3 4 65
ITEM PART NUMBER PREVIOUS PART NUMBER DESCRIPTION QTY.
1 13000 1-30.T5C Pin, 1" x 5
1
/4", Front Curl Cylinder 2
2 23106 1-31.T6 Front Curl Cylinder - Loader Bucket 1
3 88698 8-6.98 Hose,
3
/8" x 98" 1
4 88678 8-6.78 Hose,
3
/8" x 78" 1
5 88620 8-6.20 Hose,
3
/8" x 20" 2
6 88642 8-6.42 Hose,
3
/8" x 42" 2
7 88675 8-6.75 Hose,
3
/8" x 75" 2
8 20176 0107.6-6 Fitting, 3/8" MP x 3/8" FM Swivel 12
9 22176 2107.6-6 Fitting,
3
/8" x
3
/8" Swivel 90° 2
10 22266 022T.6-6 Fitting,
3
/8" Tee 2
View from Front with Loader Arm Assembly Raised
2.3
