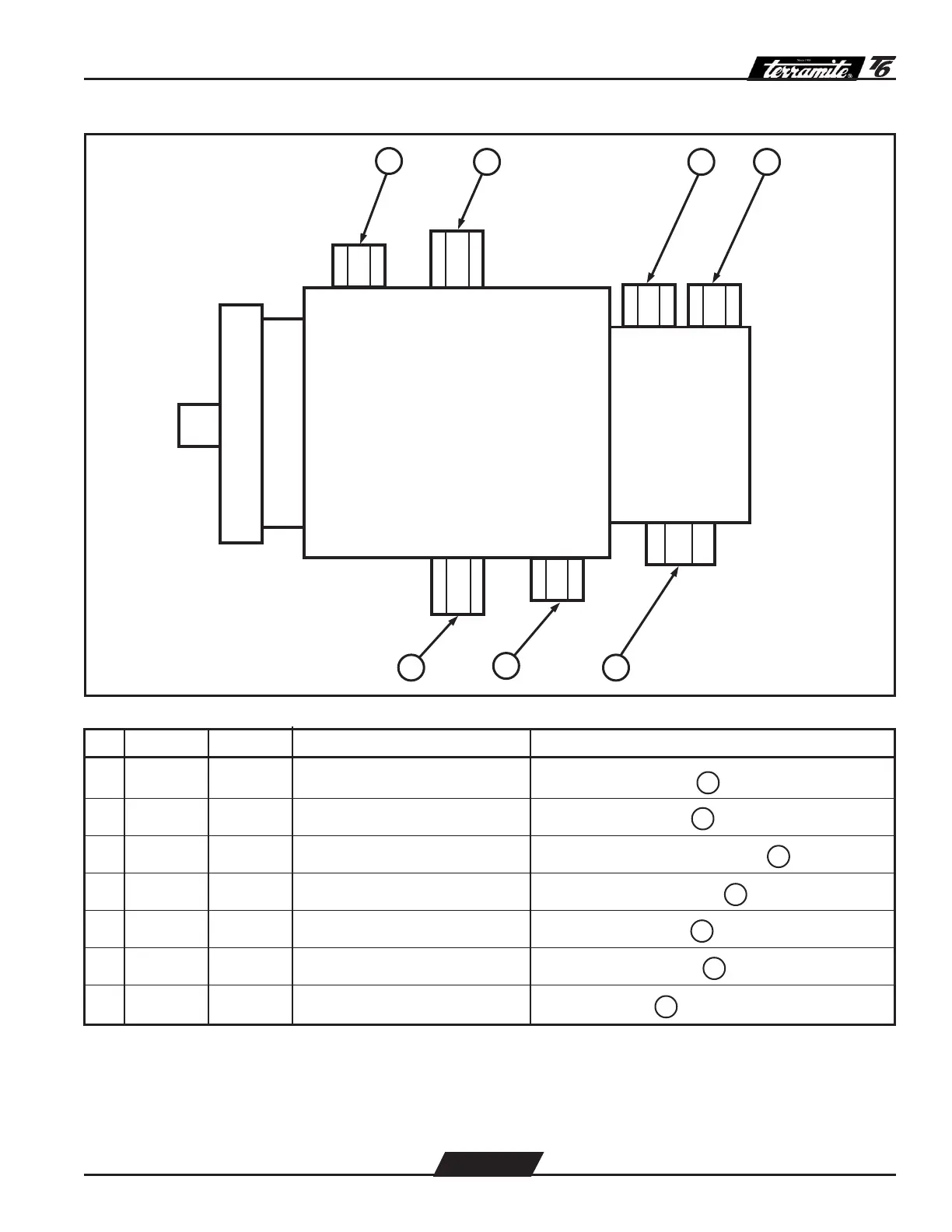

Terramite T6 - Transmission and Torque Motor Hose Routing

Copyright © 1999 Terramite Corporation
A 88614 8-6.14 Discharge Port - Transmission Oil Tank - Upper return (SEE PAGE 3.14)
B 88820 8-8.20 Exhaust Port - Transmission Torque Motor - 2WD - (SEE PAGE 3.2)
C 88857 8-8.57 Pressure Port - Gear Pump Rear Valve Assembly Intake Port (SEE PAGE 3.11)
D 88658 8-6.58 Pressure Port - Gear Pump Steering Column - Port "P" (SEE PAGE 3.8)
E 88820 8-8.20 Exhaust Port - Transmission Torque Motor - 2WD - (SEE PAGE 3.2)
F 88820 8-8.20 Charge Intake - Transmission Oil Tank - Lower Return (SEE PAGE 3.14)
G 81624 8-16.24 Intake Port - Gear Pump Oil Tank - Intake (SEE PAGE 3.14)
T6 Transmission - 2WD
3.1
A
B C D
GE
F
PART PREVIOUS
HOSE NUMBER PART NUMBER STARTING POINT ENDING POINT
C
A
B
C
B
A
D
