Terramite T6 - View from Right of Foot Pedal Control - 2 WD; Close up of Pedal Spring Installation

To Next Page

To Previous Page

2.32

ITEM PART NUMBER PREVIOUS PART NUMBER DESCRIPTION QTY.

1 11600 1-60 Foot Pedal, 2WD 1

2 10139 10139 Pedal Stop Bolt, 2WD and 4WD 2

3 11627 1-62.7 Pillow Block Bearing, 2WD 1

4 10140 10140 Spring Centering Bolt , 2WD 1

5 13029 13029 Pedal Spring, 2 WD 1

6 11610 1-61 Pedal Block, 2WD 1

7 11620 1-62 Pedal Shaft, 2WD 1

1 32

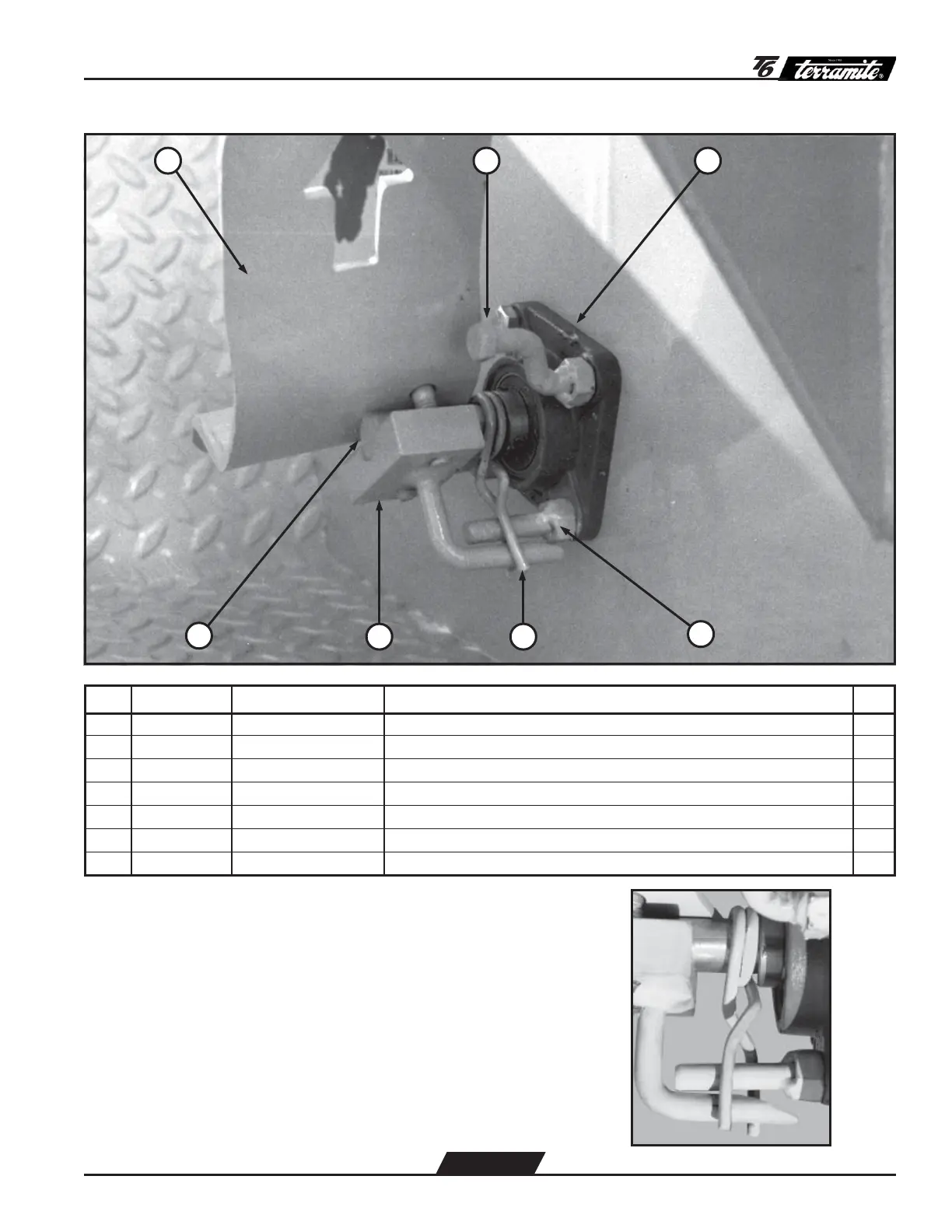

View from Right of Foot Pedal Control - 2WD

Close Up of Pedal Spring Installation
