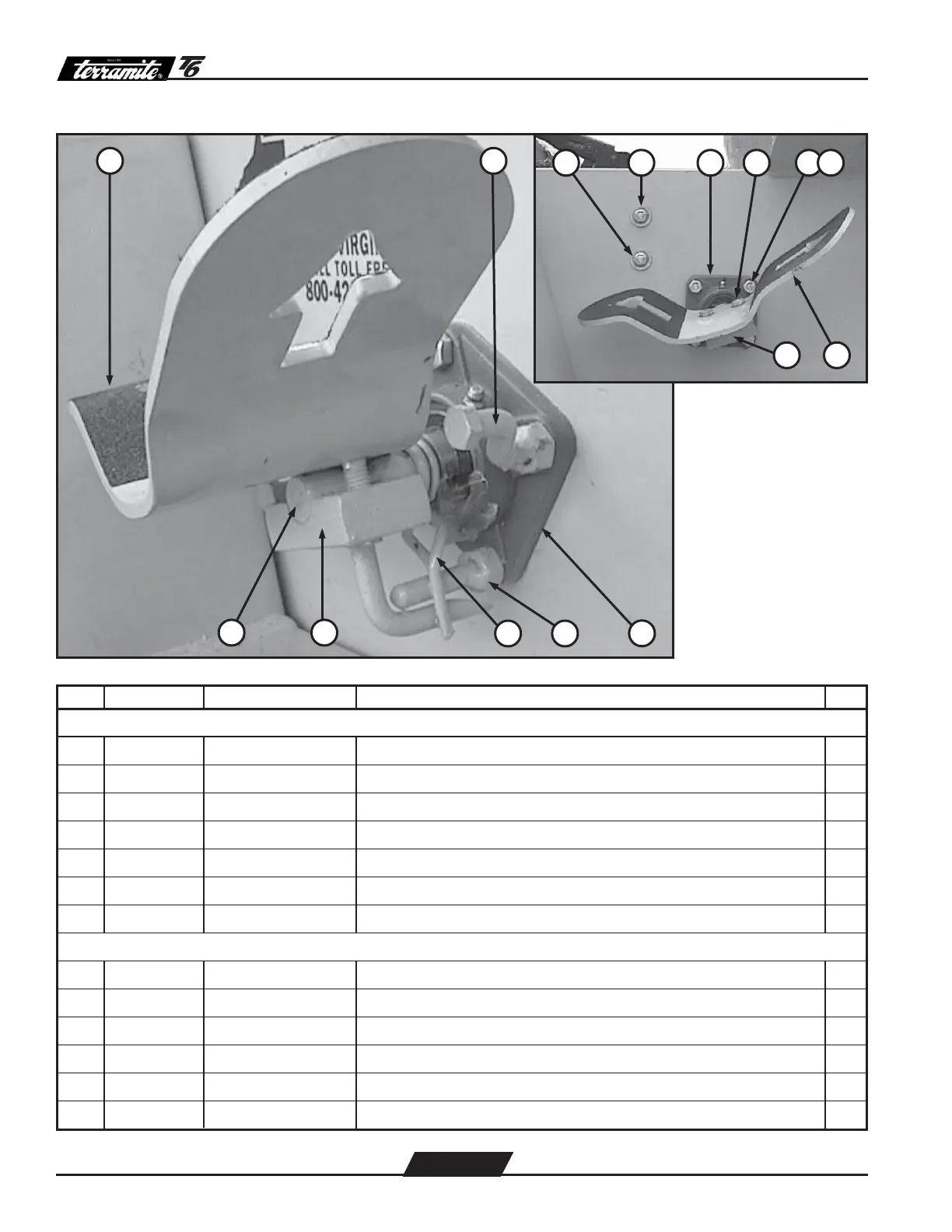

View from Right of Foot Pedal Control (Continued)
ITEM PART NUMBER PREVIOUS PART NUMBER DESCRIPTION QTY.
2 WHEEL DRIVE
1 11600 1-60 Foot Pedal 1
2 10139 10139 Pedal Stop Bolt, 2WD and 4WD 2
3 11627 1-62.7 Pillow Block Bearing 1
4 10140 10140 Spring Centering Bolt 1
5 13029 1-22.T5 Pedal Spring 1
6 11610 1-61 Pedal Block 1
7 11620 1-62 Pedal Shaft, 2WD 1
4 WHEEL DRIVE
8 22008 1B6.16C8 Bolt,
3
/8" - 16NC x 1" LG. GR. 8, Plated 1
9 22006 22006 Bolt,
3
/8" - 16NC x 3
1
/4" LG. GR. 8, Plated 1
10 22016 1B6.24C5 Bolt,
3
/8" - 16NC x 1" LG. GR. 5 2
11 22036 1B6.20C5 Bolt,
3
/8" - 16NC x 1
1
/4" LG. GR. 5 4
12 23001 1N6CL Nut,
3
/8" - 16NC Lock 4
13 13057 13057 Pedal Shaft, 4WD (Not Shown) 1
1 2
3
45
67
8 9 3 11
113
10 12
4WD Pedal
Configuration
2WD Pedal
Configuration
