Terramite T6 - View from Right Side of Swing Assembly

Copyright © 1999 Terramite Corporation

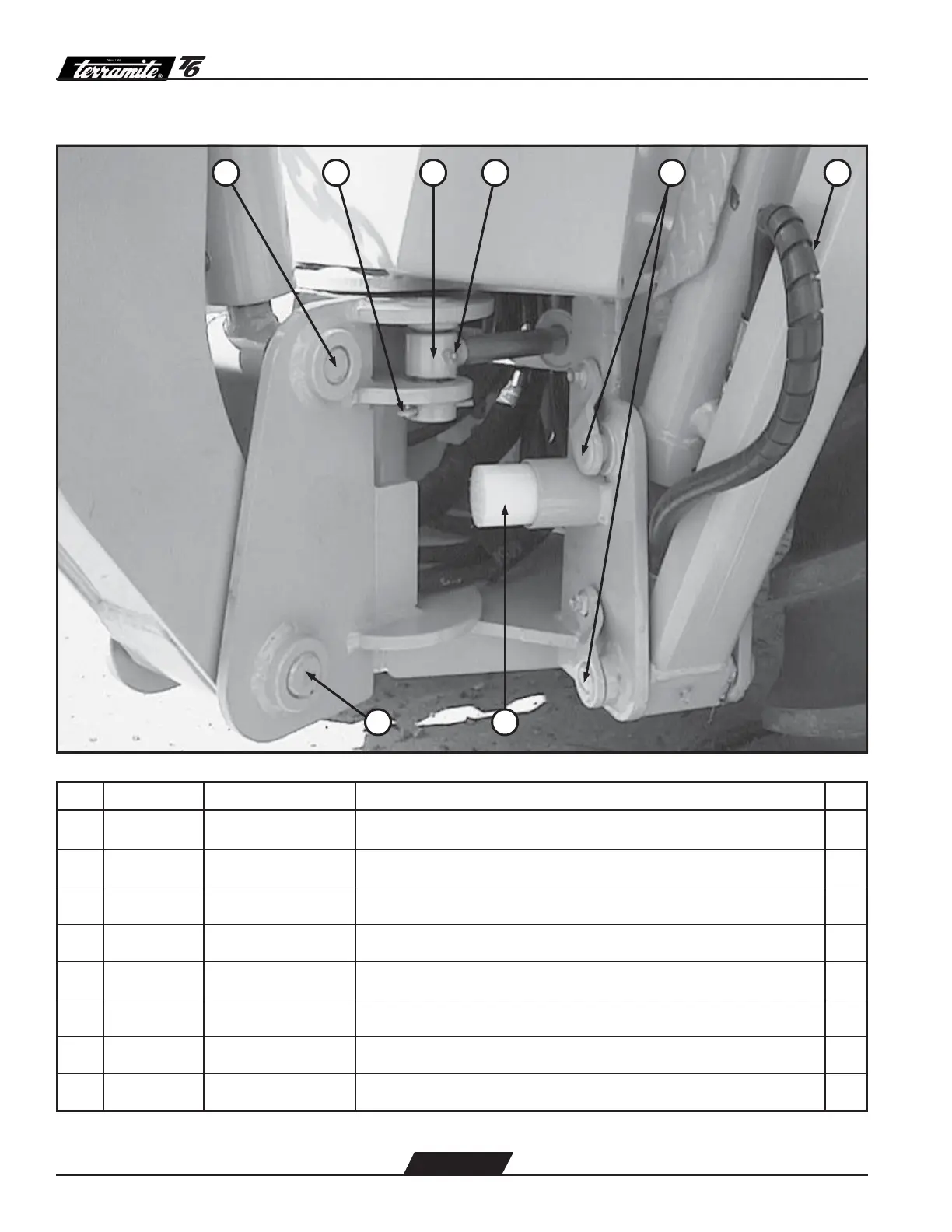

View from Right Side of Swing Assembly
1 3 4
5
6
78
2
ITEM PART NUMBER PREVIOUS PART NUMBER DESCRIPTION QTY.
1 17208 17208 Pin, 1
1
/4" x 7
3
/4" x 8
1
/4"1
2 21420 1CP8.80 Cotter Pin 2
3 25201 1-52.01 Swing Rod 2
4 21428 S4MPG Fitting, Grease,
1
/4"-28 Straight 32
5 11100 1-11.T5C Pin, 1” x 6
1
/4"4
6 80126 80126 Hose,
3
/8" x 52" 4
7 15486 1-54.80.T6 Swing Stop 2
8 10406 1-04.T6 Pin, 1
1
/2" x 8
1
/4"1
2.45
