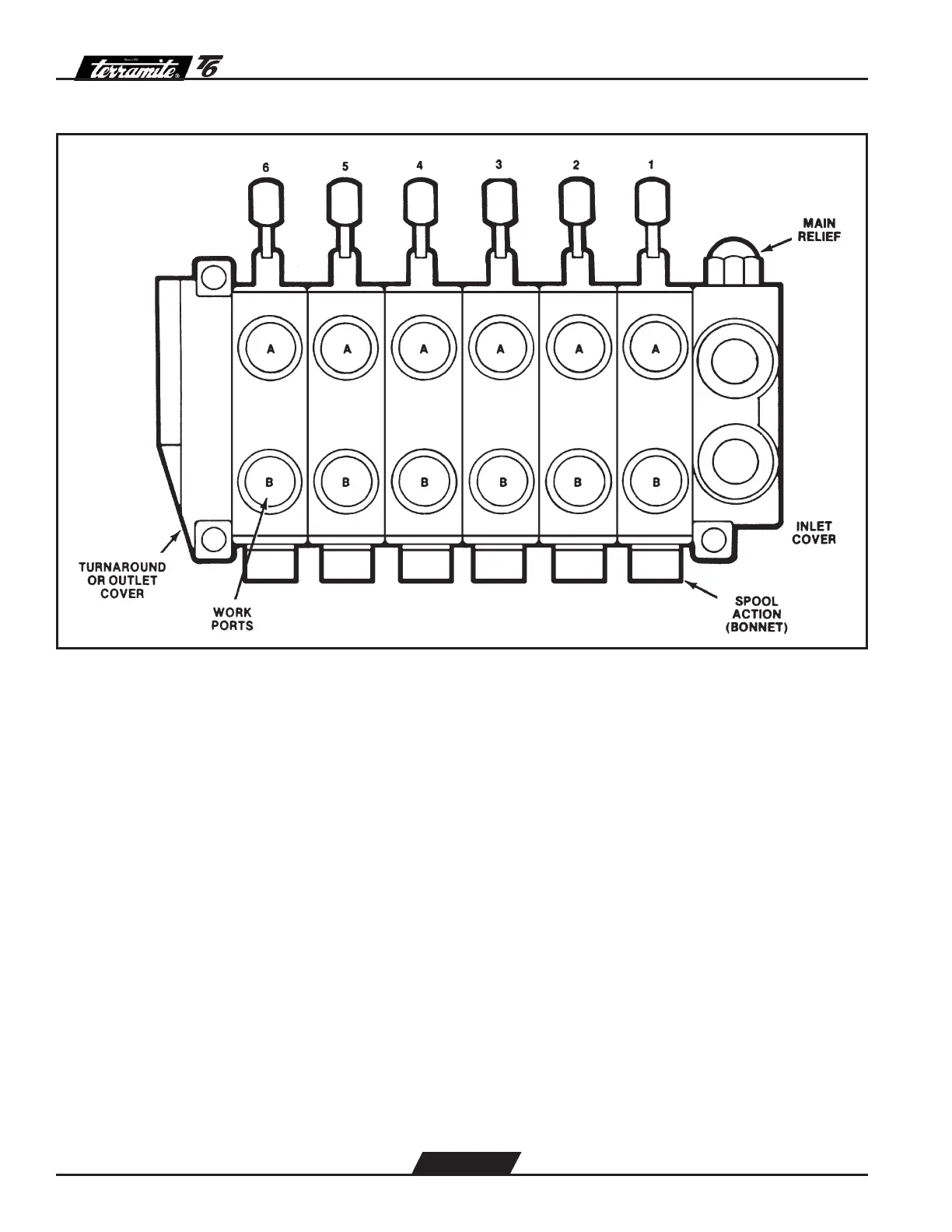

Schematic-View of Typical Control Valve Assembly
1. Before disassembly, it is suggested that each valve section be marked numerically to avoid incorrect
reassembly.
2. Remove three assembly stud nuts from the left end section using a
9
/
16
" thin wall socket.
3. Remove valve sections by sliding from assembly studs.
