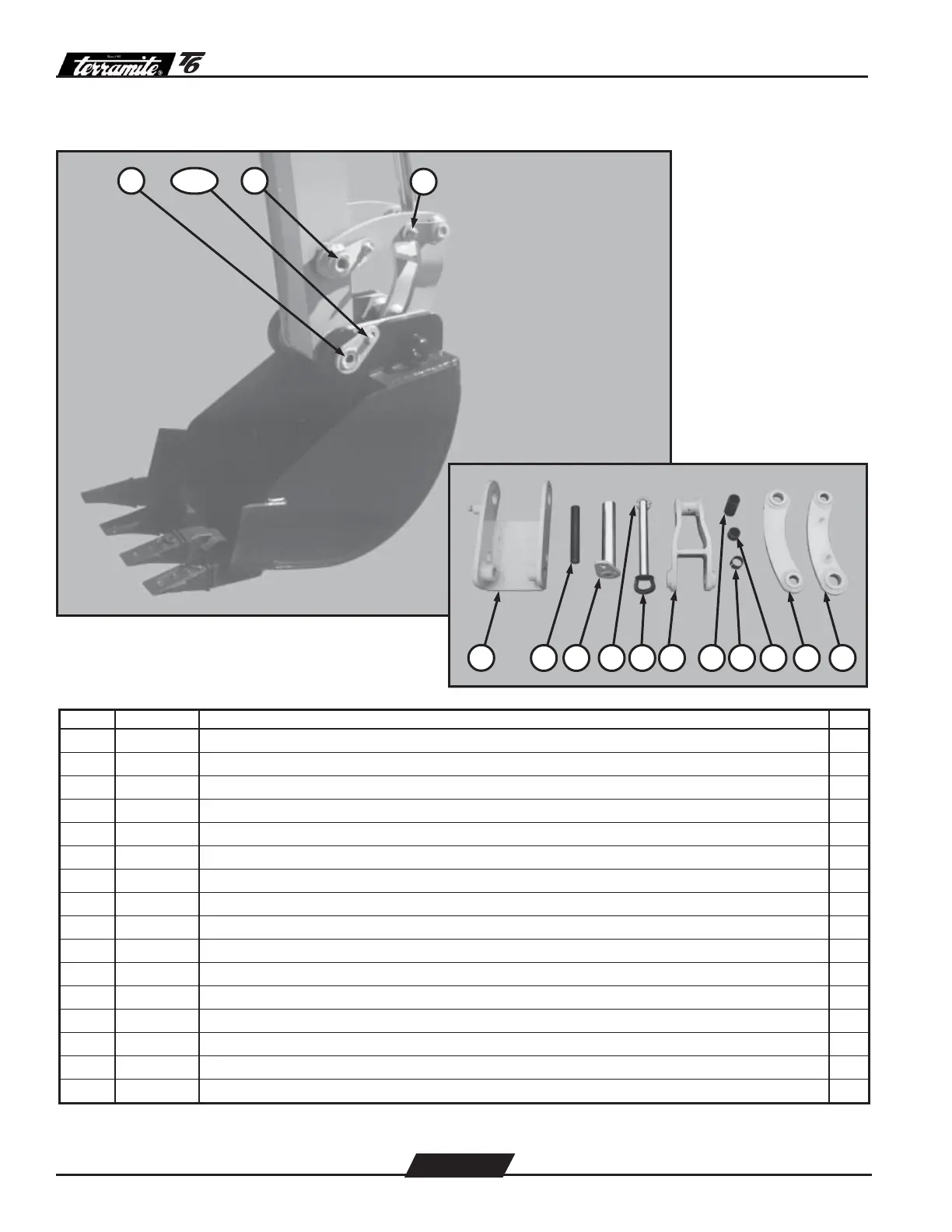

Terramite T6 - View of Left Side of Rear Bucket & Linkage Assembly

Copyright © 1999 Terramite Corporation
2.49
ITEM PART NUMBER DESCRIPTION QTY.
1 17187 Pin, 8
3
/4”, Quick Attach Bucket, T6/T9 1
2 28956 Washer,
3
/8” SAE 1
3 22008 Bolt,
3
/8” - 16 x 1” Gr8 Z 1
4 10812 Pin, 7
5
/8”, Dipstick to Linkage, T5C/T5D/T6/T7/T9 1
5 20082 Nut,
3
/8” NC Flange Z 2
6 19480 Center Assembly, Quick Attach, T6/T9 1
7 17269 Pin, 6
1
/2”, Rear Curl Cylinder to Quck Attach, T5C/T5D/T6/T7/T9 1
8 17031 Pin, 7
5
/8”, Linkage to Rear Curl Cylinder, T5C/T5D/T6/T7/T9 1
9 10202 Pin, Linch, T5C/T5D/T6/T7/T9/Sweeper 1
10 17273 Pin, 9”, Quick Attach Pull, T6/T9 1
11 18240 Linkage Assembly, Center, T5C/T5D/T6/T7/T9 1
12 17056 Bushing, 1
1
/2” ID x 1
3
/4”OD x 3” L 1
13 10819 Bushing 1 ID” x 1
1
/4” OD x 1” L 1
14 17055 Bushing, 1
1
/2” ID x 1
3
/4” OD x 2” L 1
15 18261 Linkage Link, Right, T5C/T5D/T6/T7/T9 1
16 18260 Linkage Link, Left, T5C/T5D/T6/T7/T9 1
View of Left Side of Rear Bucket & Linkage Assembly
1 4
5
2 & 3
6
7 8 9 10 11 12 13 14 15 16
