Terramite T6 - Page 52

Copyright © 1999 Terramite Corporation
ITEM PART NUMBER PREVIOUS PART NUMBER DESCRIPTION QTY.
1 28500 1N8CL Nut, 1/2" x 13NC Stover B 8
2 11516 1-15.10.T6 Outrigger Guard 2
3 11502 1-15.1.T5C Pin, 1" x 4
1
/8"2
4 11048 11048 Pad, Outrigger Foot 2
5 15486 1-54.80.T6 Swing Stop 2
6
21606 1-16.T6 Outrigger Cylinder (Prior to SN 6990214) 2
81136 81136 Outrigger Cylinder (SN 6990214 and after) 2
7 22002 22002 Clamp, Hose - Outrigger (Prior to SN 6990214) 2
8
88652 8-6.52 Hose,
3
/8" x 52" (Prior to SN 6990214) 4
80126 80126 Hose,
3
/8" x 36" (SN 6990214 and after) 4
9 11047 11047 Outrigger 2
10 20082 20082 Nut,
3
/8" NC Flange 2
11 10202 10202 Pin, Linch
1
/4" Diameter 2
12 11595 11595 Rubber Street Pad 2
13 17156 17156 Pin, 1" x 5
1
/4", Outrigger to Foot Pad Pull 2

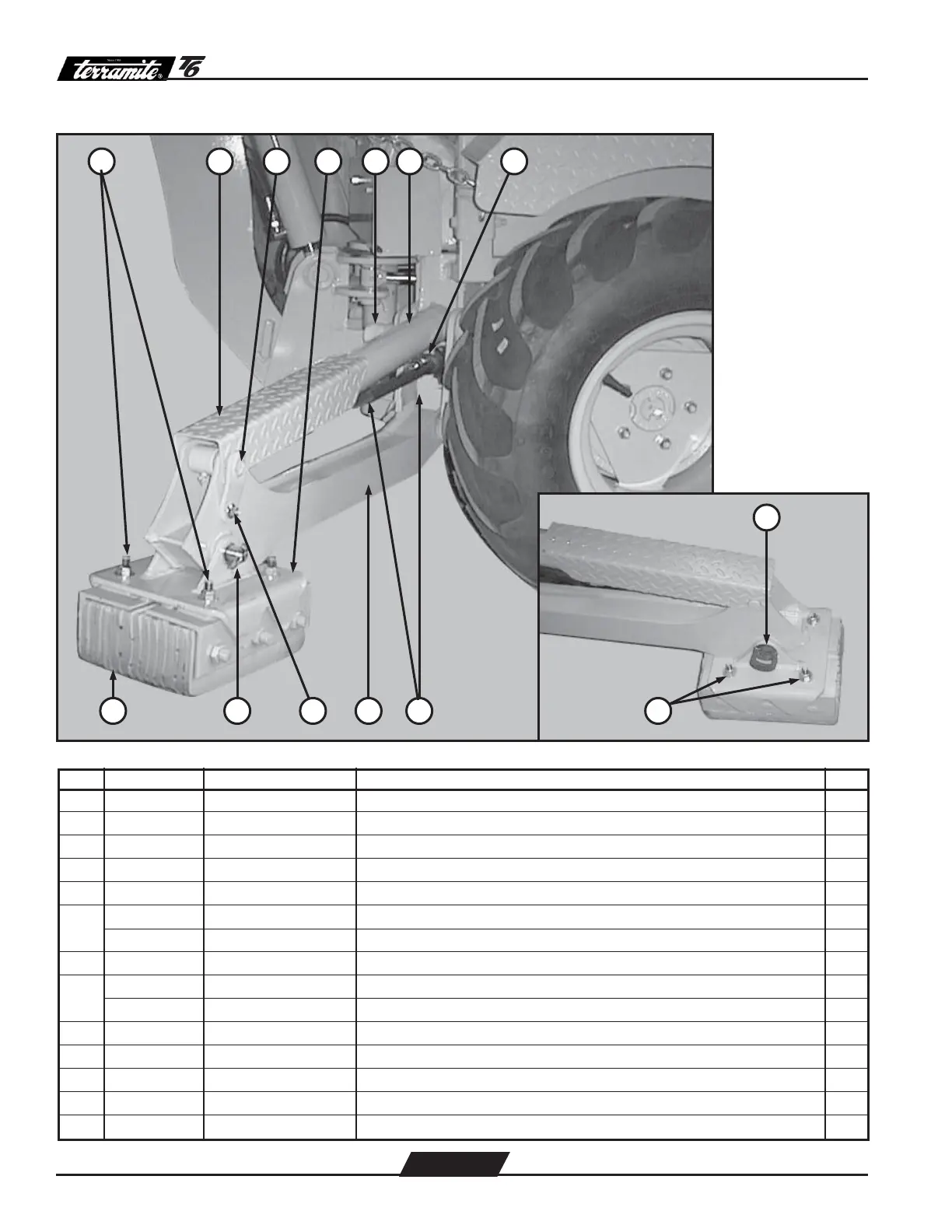

View from Right Side of Outrigger Assembly
5 6 72 3 41
9 811 1
13
12 10
