HYDRAULIC PULLER TENSIONER PT2450
Manual: MI-PT2450-050-00-GB Date: 28.07.2018 Author: AT Page: 29 of 89

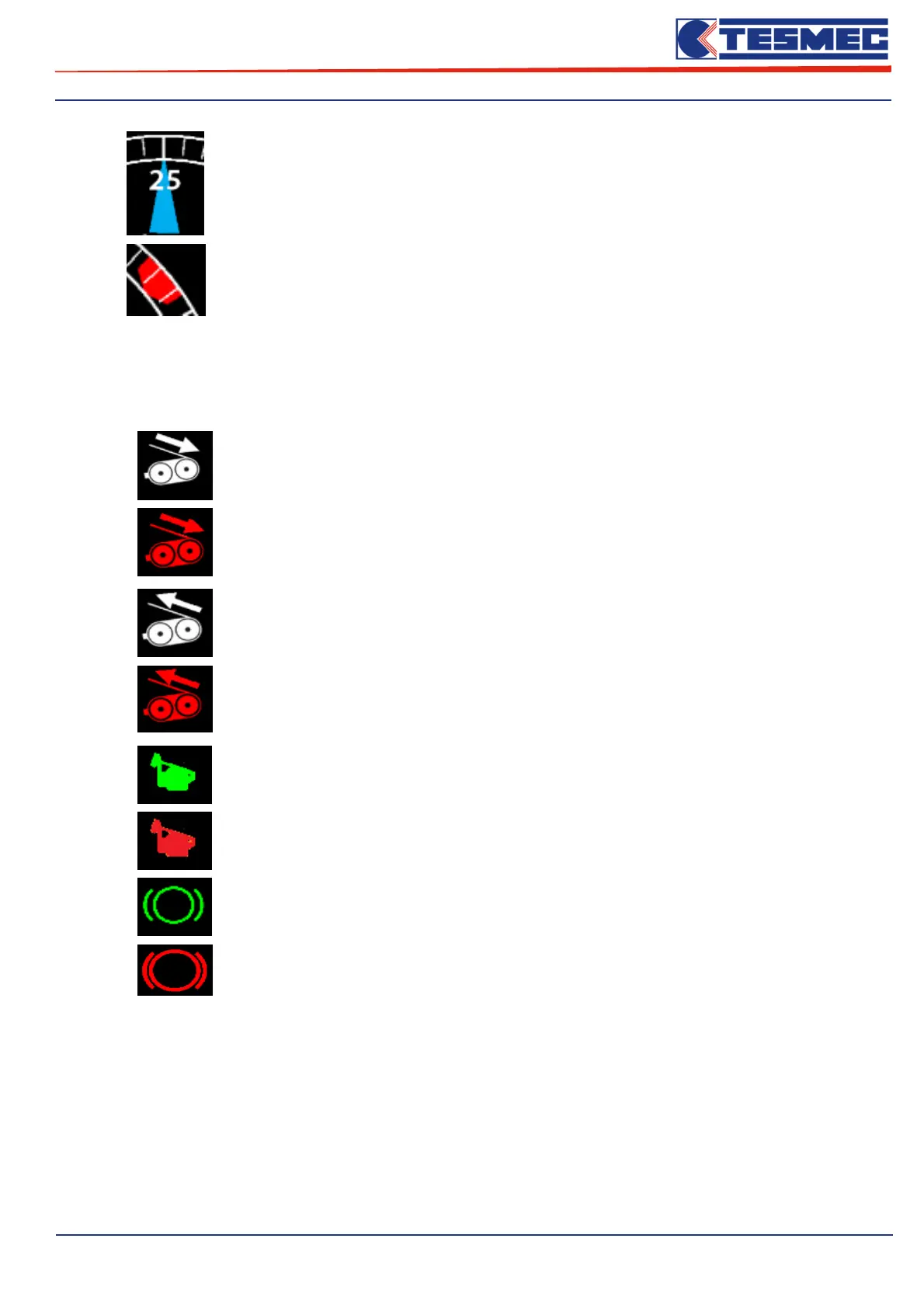

BLUE ARROW: indicates the CURRENT pull value in KN on the reference scale.
RED ARROW:
TENSIONER machine: Indicates the pull value SET in KN.
PULLER machine: Indicates the LIMIT pull value in KN.
At the center of the virtual dynamometer, they show the following symbols, which can have different
configurations:
MACHINE IN PULLER CONFIGURATION.
MACHINE SET AS PULLER BUT IR WORKS AS A TENSIONER (only with bull-
wheels rotation speed > 0).
MACHINE IN TENSIONER CONFIGURATION.
MACHINE SET AS TENSIONER BUT IR WORKS AS A PULLER (only with bull-
wheels rotation speed > 0).
ROPE CLAMP OPENED.
ROPE CLAMP CLOSED
NEGATIVE BRAKE BULL-WHEELS CIRCUIT OPEN
NEGATIVE BRAKE BULL-WHEELS CIRCUIT CLOSED
2- Stringing speed: it is displays the speed in KM / H (or miles / h) which is string or recovered the rope or
wire.
3- Strung meters: it is displays how many meters (or feed) of conductor or rope have been strung
4- Reel Elevator Pressure: it is displays the set pressure on de reel winder circuit or hydraulic heads mounted
on the reel elevators.
