HYDRAULIC PULLER TENSIONER PT2450
Manual: MI-PT2450-050-00-GB Date: 28.07.2018 Author: AT Page: 30 of 89

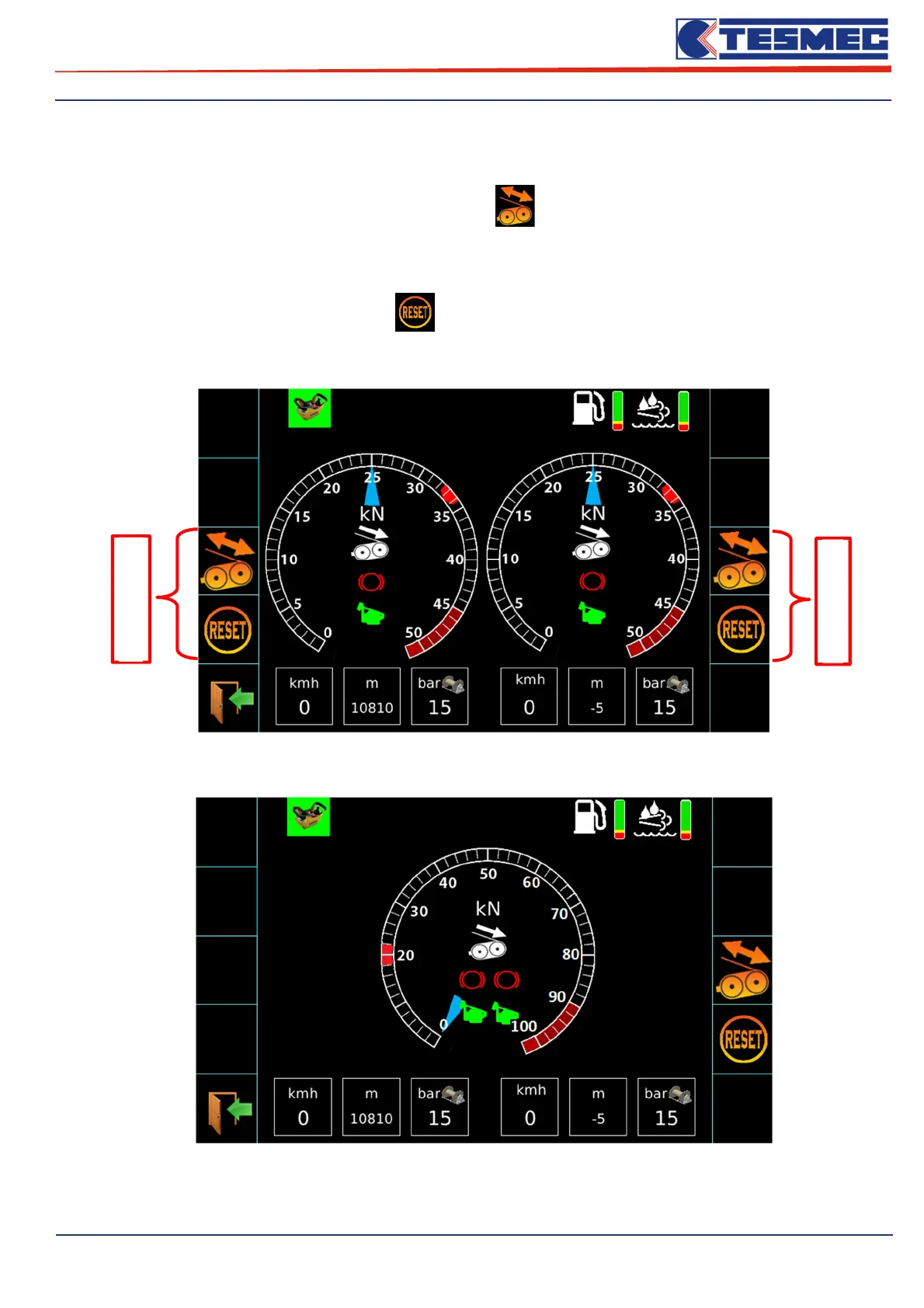

5- Button to choose “Machine Operating Mode” and “Meter counter reset”: through this button, it will
show the menu between the operator can select the scale of the pull to be displayed (MACHINE
TENSIONER or MACHINE PULLER). push the button to change the type of scale.
Depending on the chosen configuration, the virtual dynamometer will automatically scale the pull
consistently to the direction of rotation of the bull-wheels if v> 0.
The push button Meter counter reset It allows you to reset the counter of the strung meters.
Machine configuration
“CIRCUIT 1” or “CIRCUIT 2”
Machine configuration
“CIRCUIT 1 + CIRCUIT 2”
Circuit 1
Circuit 2
