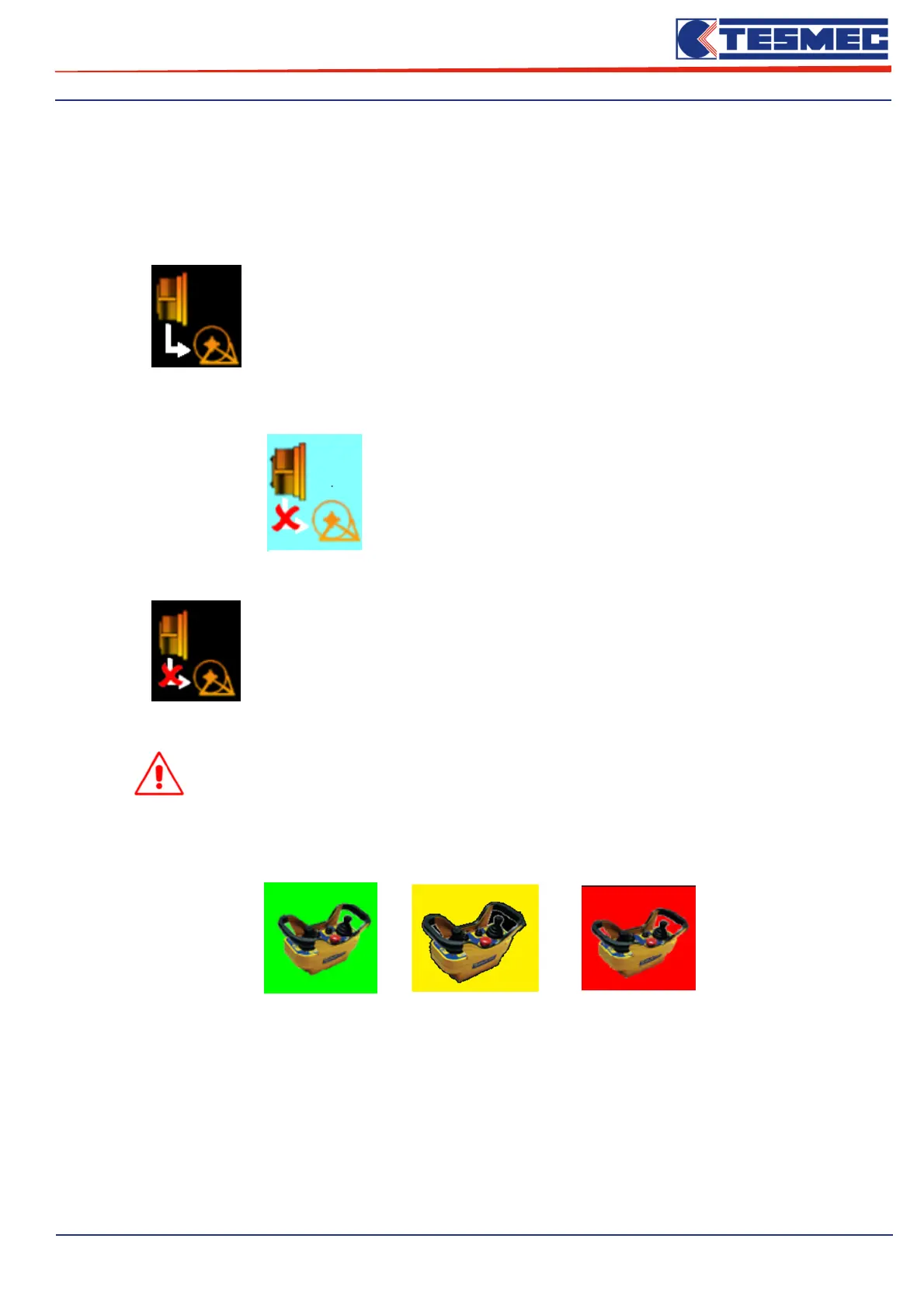

6- Circuit Management Button Reel elevator/Reel winder circuit 1 and 2 : through this button, the operator
has the option to choose how to use the reel elevators circuit or reel winder.
It is possible to choose from:
Reel elevator circuit STRINGING mode
In this configuration, the reel elevators circuit is pressurized automatically. Moving the
bull-wheels joystick, the reel elevator circuit is under pressure and is ready for
operation, allowing you to keep pull the conductor between bull-wheels and reel
elevator.
When the operator push this button, the icon will change.
If the button is active, it will start to be blinking and it will active the
configuration “Reel elevator circuit MANUAL mode”
Reel elevator circuit MANUAL mode
In this configuration, you can move the bull-wheels excluding the reel elevators circuit.
This operation can be useful in the process of loading of the conductor on the machine
and allows the operator to lock the rotation of the reels on the reel elevators.
DANGER
The operator should always turn off this feature before starting the stringing
operations, in order not to drag the stand without having the appropriate back-
pull on the conductor.
7- Radio control connection: It displays the status of the radio connection to the machine control.
Radio control
CONNECTED
Radio control
DISCONNECTED
Radio control
OFF
