5.4 Replacing the seal ring
Depending on the degree of soiling, it may be necessary after approx. 2 years to replace the sealing ring
situated under the plate for the sample. To do this, the plate for the sample must be unscrewed and re-
moved. Then loosen and take out the ring with the sealing ring and replace it with a new one. Install the
plate and tighten it

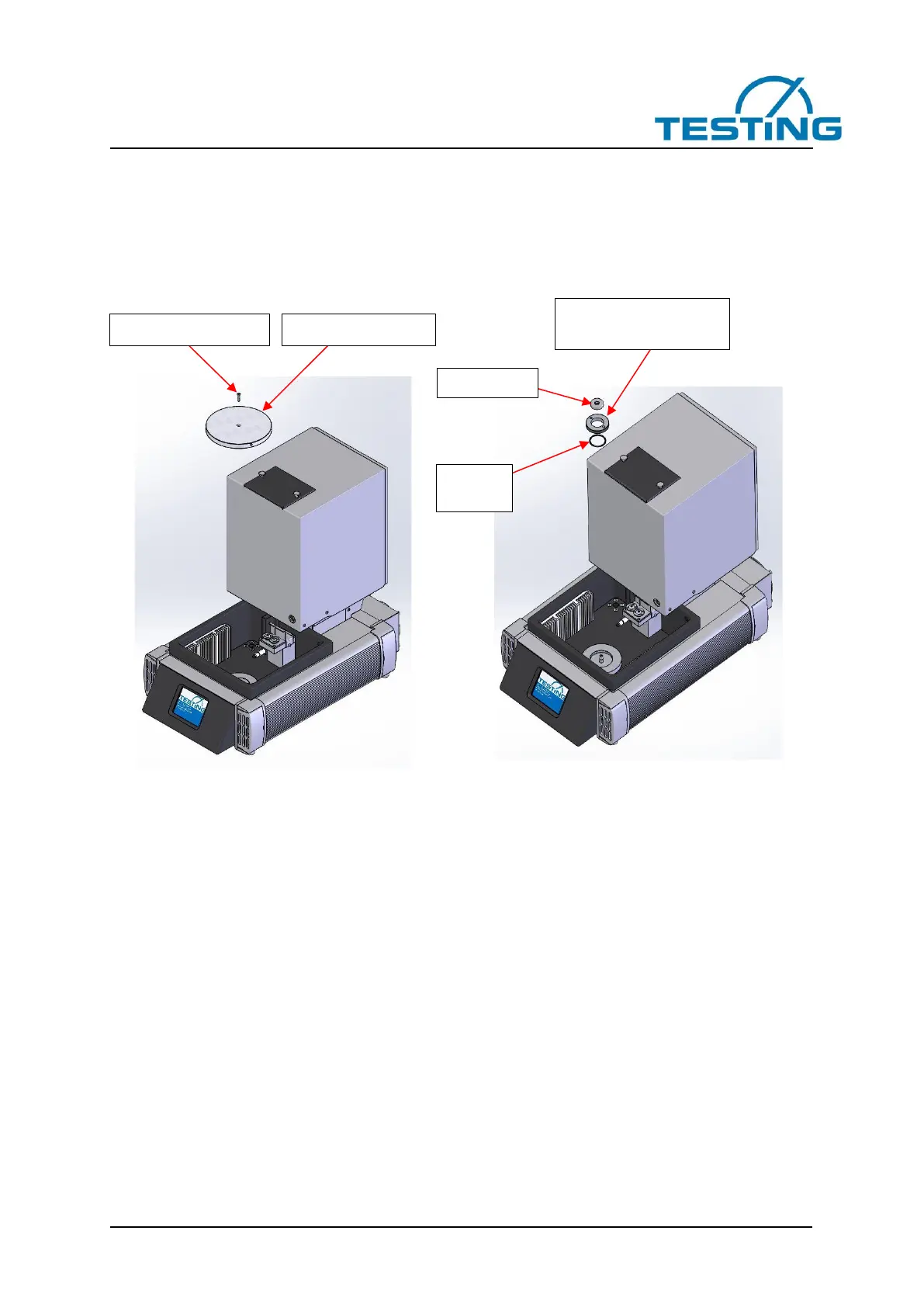

Figure 37: Replacing the seal ring
Unscrew this screw
Remove the plate
Unscrew this ring and
change the seal ring
O-ring
Ø25x2
Seal ring
