Texas Instruments DLP NIRscan - DLP Nirscan Nano GUI Uitlities Screen

NIRscan Nano GUI www.ti.com
the progress bar indicates the update process.
• Tiva Firmware update tool.
– To update the Tiva firmware, click the Browse button to search for the Tiva firmware file (for
example, C:\ti\DLPNIRscanNanoSoftware_1.0.0\Binaries\NIRscanNano.bin).
– Then, click the Update TIVA Firmware button. The firmware will be flashed on the Tiva internal
Flash while the progress bar indicates the update process.
• Detector board's ADS1255 PGA setting.

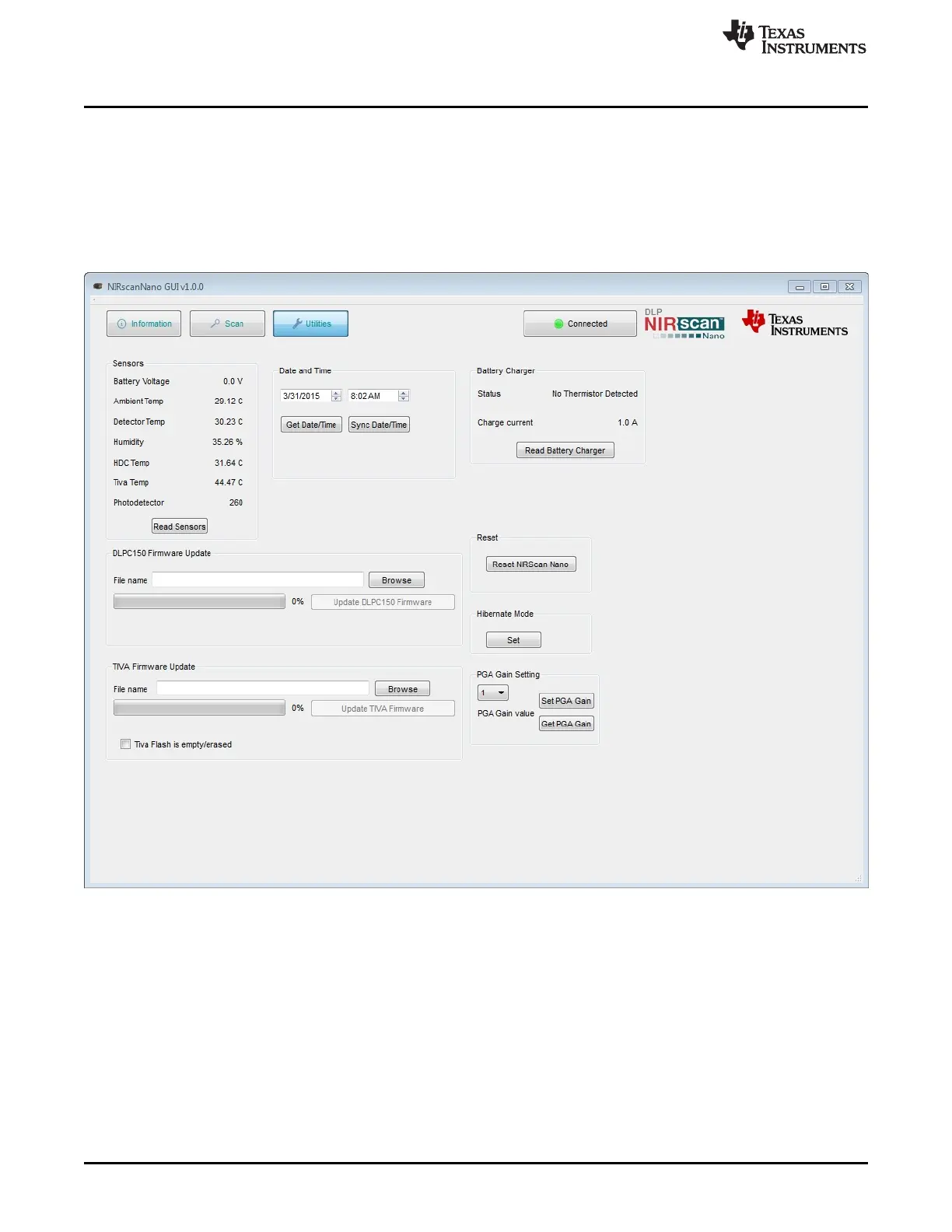

Figure 3-9. DLP NIRscan Nano GUI Uitlities Screen
30
