Installing the AC Power Adapter
Use the following procedures to connect the AC Adapter to the system:
c
Caution: Use only the AC Adapter supplied with the computer; other
adapters can damage the unit.
1.
Remove the AC adapter from the packaging. Connect the round coaxial connector
supplied with the notebook to the power receptacle on the rear of the
notebook as shown in Figure 2-10.
2. Connect the female side of the AC Power cord to the AC Adapter and connect the
male end to a grounded AC outlet.

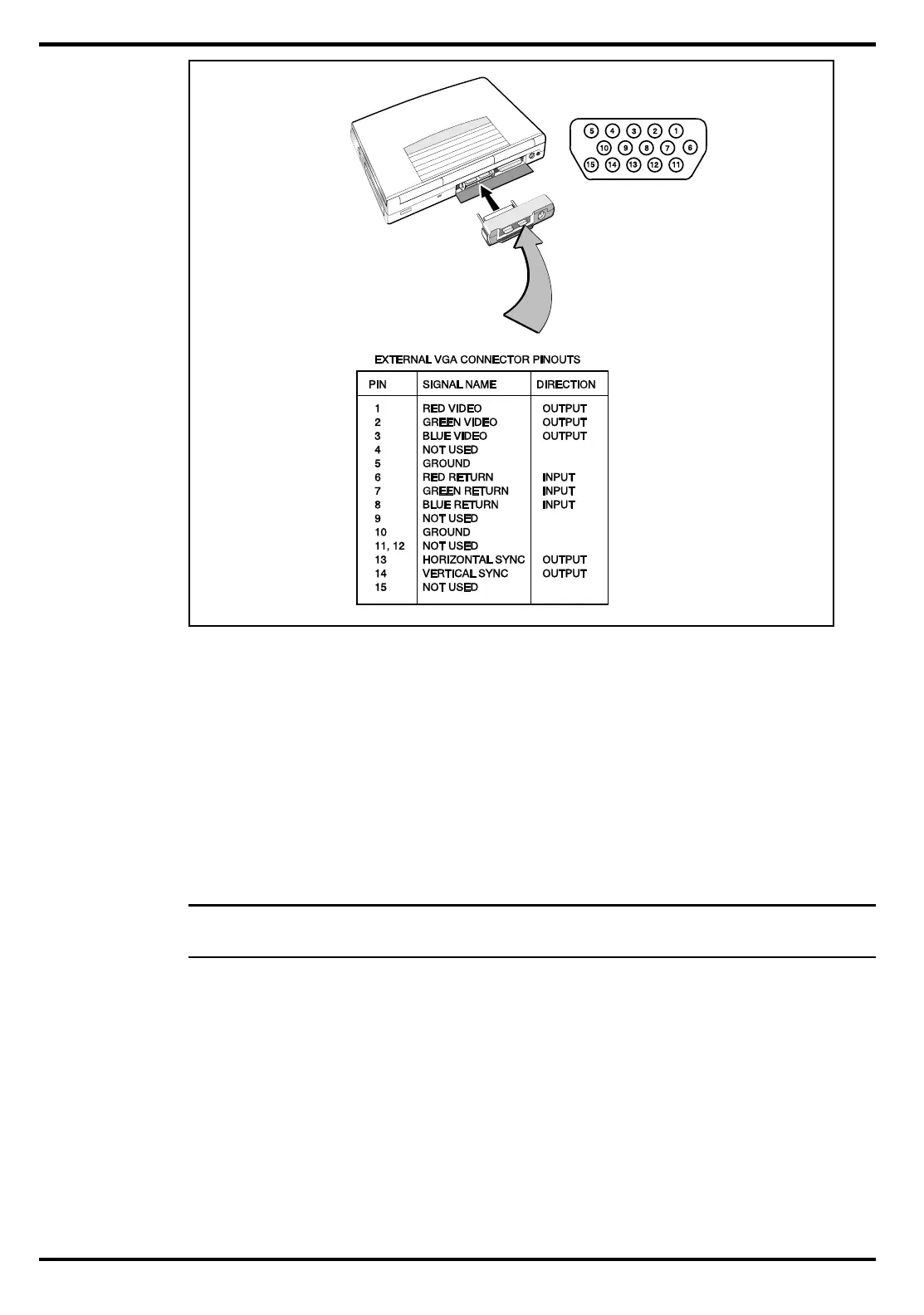

Figure 2-9 External Monitor Port Pinouts
Installation
