Table 6-1 Cover Display Assembly, Field Replaceable Units (FRUs)
FRU Description Reference
Paragraph
No.
FRU Description Reference
Paragraph
No.
Inverter Board, DSSTN
10.4"
6.5.9 LCD Cover, DSSTN
10.4", 450
6.5.9
Inverter Board, TFT 9.4" 6.5.9 LCD Cover, TFT 9.4",
450T
6.5.9
Display Assembly, 10.4"
DSSTN 450
6.5.8 Bezel, DSSTN 10.4",
450
6.5.9
Display Assembly, 9.4"
TFT 450T
6.5.8 Bezel, DSSTN 10.4",
455
6.5.9
Slide Pot Board, DSSTN
10.4"
6.5.9 Bezel, TFT 9.4", 450T 6.5.9
Converter Board, TFT
9.4"
6.5.9 Bezel, TFT 9.4", 455T 6.5.9
6.4.2
System Base Assembly
As shown in Figure 6-2, the System Base Assembly houses a variety of
field-replaceable subassemblies and components. The FRUs and paragraph
references for removal/replacement procedures are listed in Table 6-2. Table 6-3
contains a listing of Customer (non-technical user) replaceable units (CRUs) and
associated TI Part Numbers.
n
Note: FRU level part numbers are not available at time of publication of this man-
ual. For required part numbers, reference the Field Service Bulletins (FSBs) for the
Extensa 450 Series or contact Texas Instruments by dialing
1-800-TI TEXAS
.

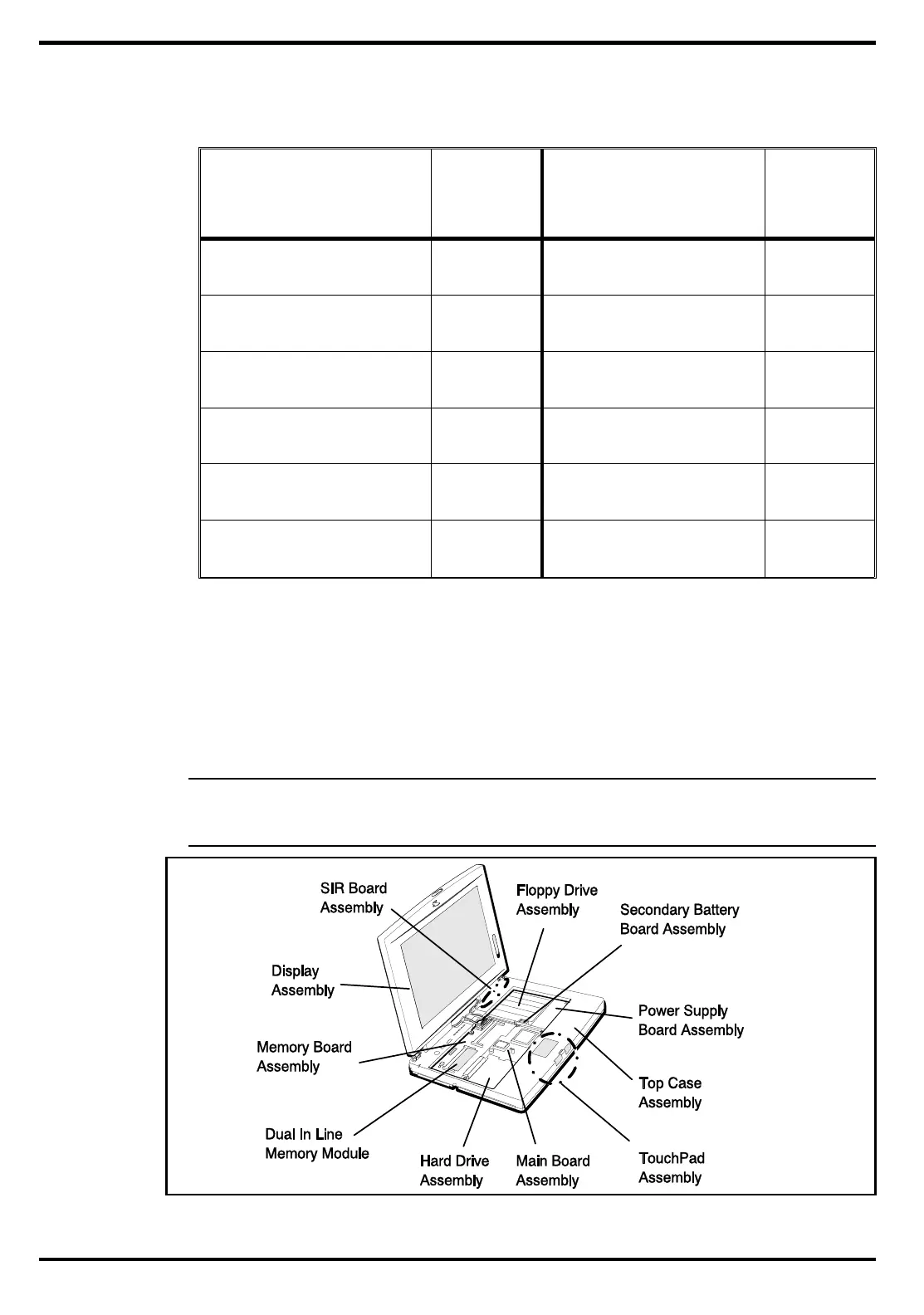

Figure 6-2 Base Assembly FRUs
6-4 Field Service
