1. Remove the Main Board Assembly as described in paragraph 6.5.16.
2. Carefully slide the secondary Battery Board Assembly from its right angle
connector and remove board from unit.
3
.
Replacement is the reverse of steps 1 and 2 above.

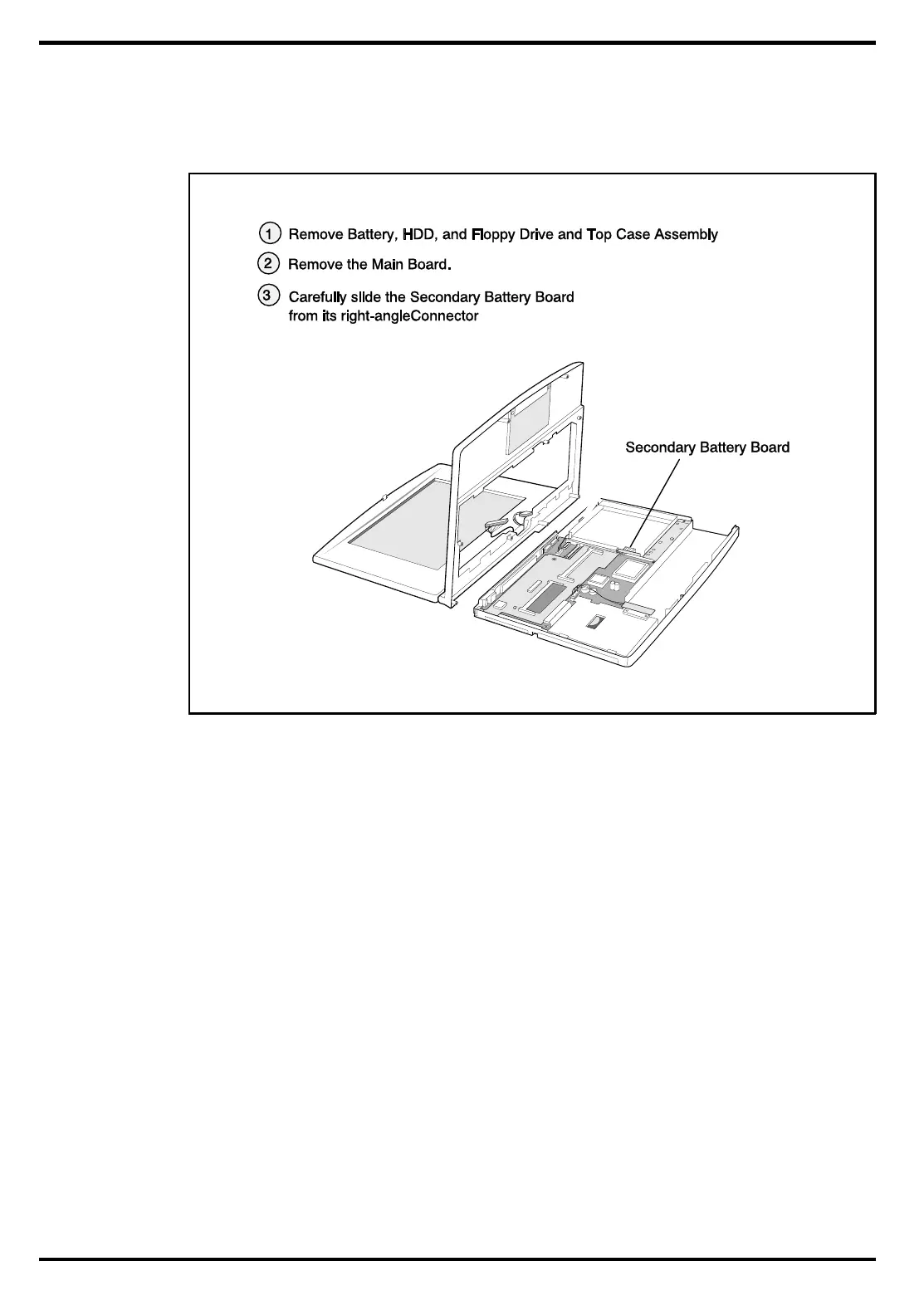

Figure 6-11 Secondary Battery Board
