Texi Iris 10 - Bobbin Case Lubrication and Insertion

Texi Iris 10 Operation Manual
16

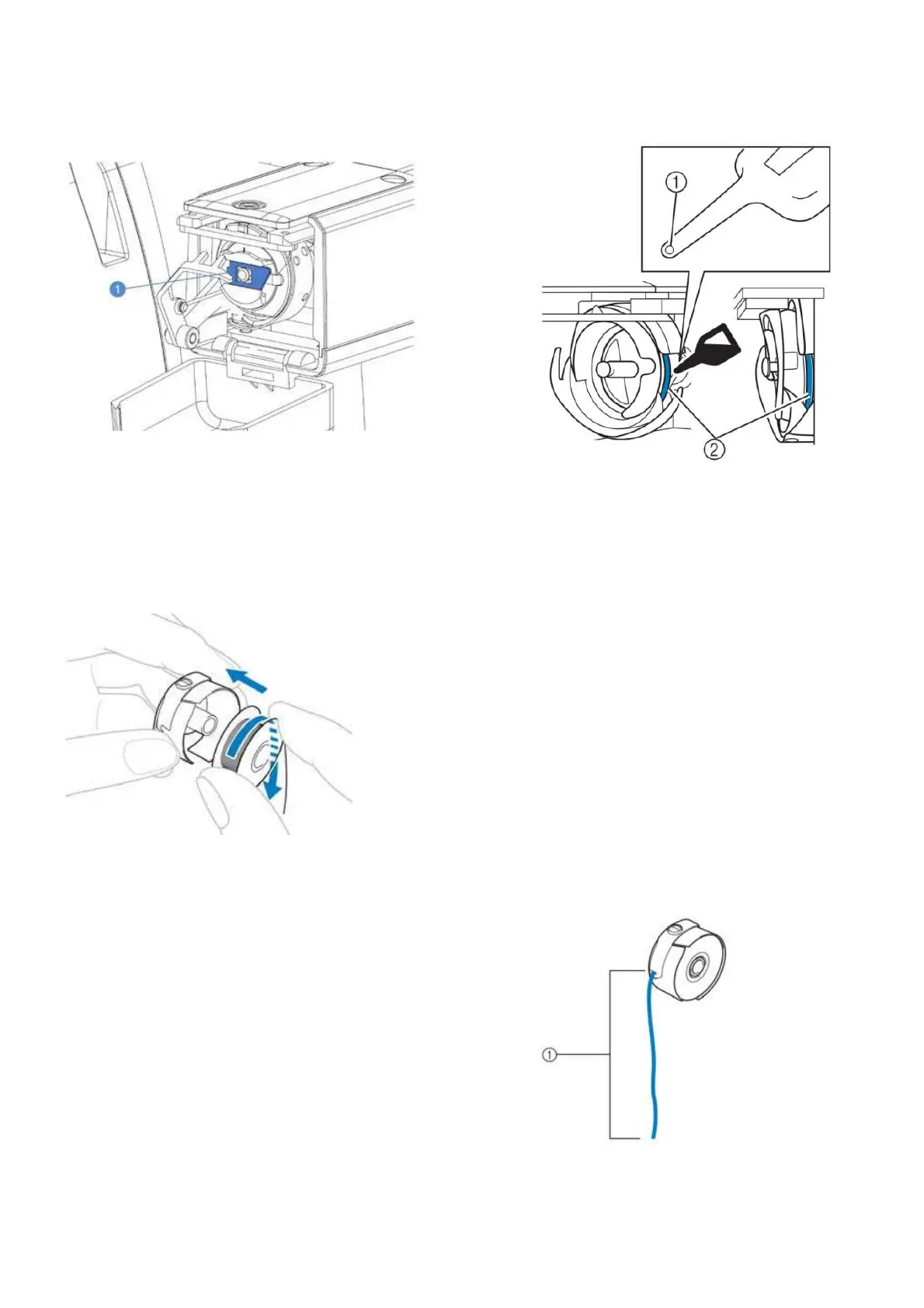

Grab the bobbin case bolt (1), and take out the bobbin
case.
Lubrication of bobbin case base
After removing the bobbin case, lubricate the bobbin case base
area (2) using SPIRIT 2 (1).
Once lubricated insert the bobbin into the bobbin case and place it in the machine.
Notes: Every time before using machine, put three drops of oil on bobbin.
Inserting bobbin into bobbin case
Insert the bobbin with thread on it into the bobbin case as
shown in the picture.
Notes:
Thread should be winded on bobbin clockwise and in such way
placed in bobbin case. Otherwise the thread can get tangled.
Lead thread through a tension regulating clip.
Take about 50 mm (1) of the thread out from opening of
tension regulating clip.
