Texi Iris 10 - Panel and Thread Rack Assembly

Texi Iris 10 Operation Manual
12
Regulation of the panel

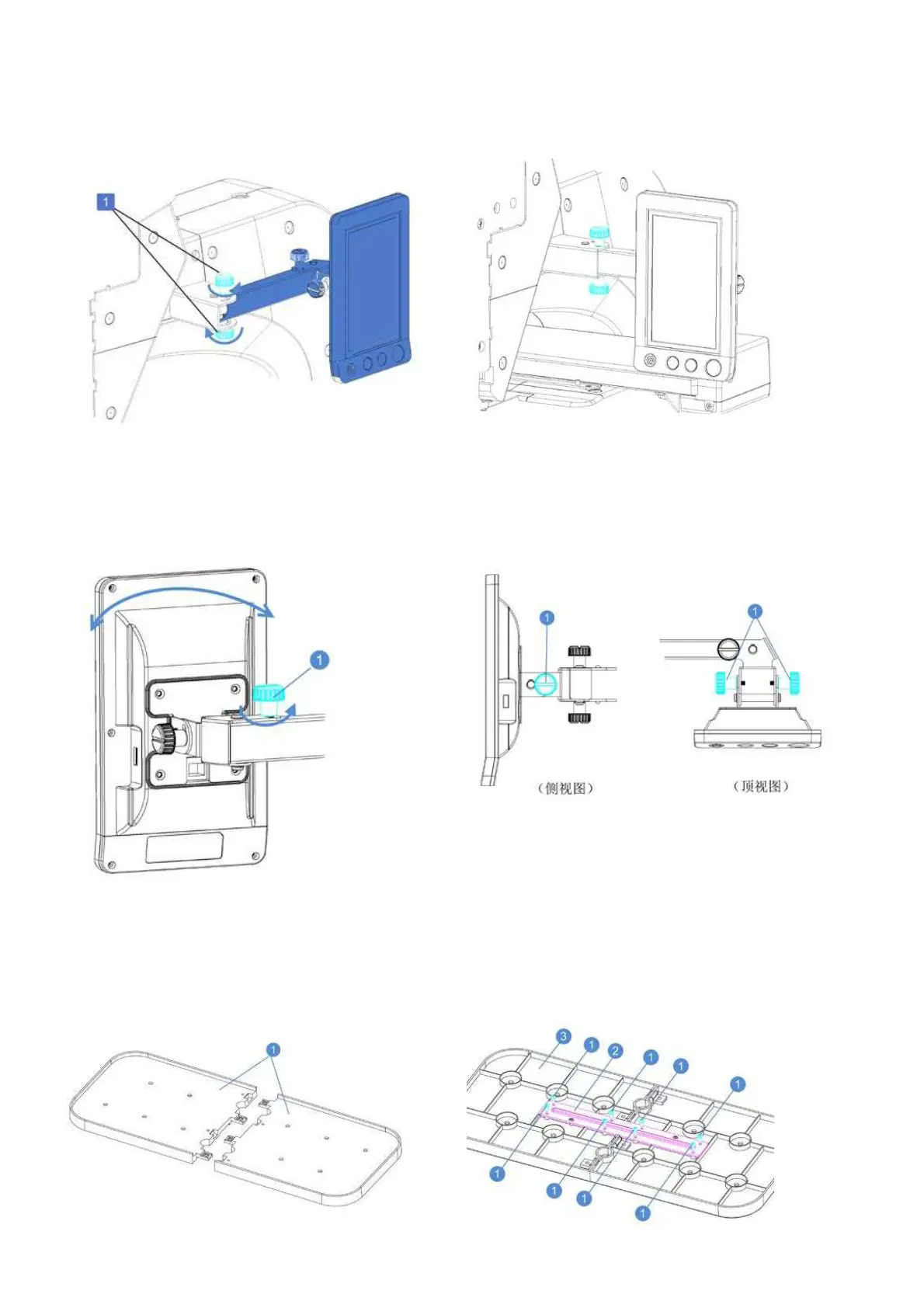

Adjust the position of the panel by using regulation screws
(1).
Loosen two regulation screws and move operation panel
forward. Tighten both screws.
Other positions of the panel are possible by loosening
the screw (1) and moving the panel in direction shown
below. After that tighten the screw manually.
To adjust the angle of the panel loosen 2 screws (1) as shown
in the picture below.
Assemble thread rack
Combine two parts of the thread rack (1) as shown be-
low.
Mount reinforcing plate (2) on the thread rack (3) with 8 screws
M4x8 (1) and tighten them.
