Texi Iris 10 Operation Manual
24

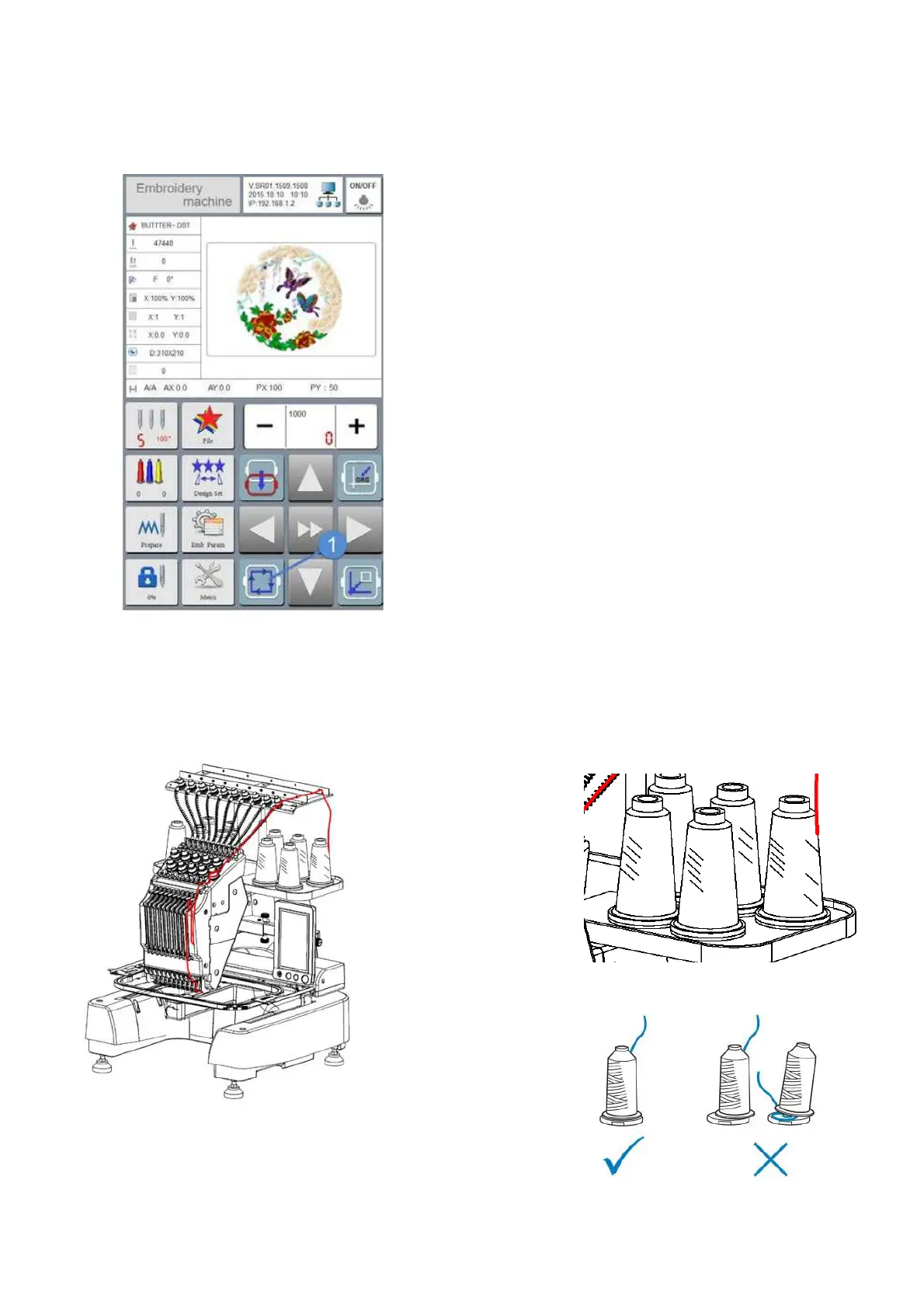

Check embroidery area
Check embroidery area, make sure that embroidery will be made in a desired place, free from crumpets, and that the embroidery
frame will not collide with presser foot. If the position of embroidery frame is incorrect, please move it to the correct position.
Touch key (1) on the panel, embroidery frame may automati-
cally move within the maximum range of pattern and if the
position is not correct, system will automatically correct the
starting point for pattern embroidery and if still incorrect, it will
show an error.
Note:
When the chosen pattern exceeds the range of embroidery
frame, the preview line of embroidery frame will be displayed
as a red line and if within the range it will be displayed as a
black line.
Threading the machine
To complete threading, please operate carefully instructed below. Incorrect threading may cause thread or needle breakage.
The threading route is shown as the guidance line in the following figure, please thread the machine as instructed.
Place the bobbin with required colour on the
thread reel.
Put the thread in the
centre of bobbin seat
for correct thread feed-
ing, and prevent thread
from winding on the
bobbin shaft below bob-
bin.
The figure depicts the
threading channel for
each needle bar, so that
threading can be com-
pleted.
To Next Page
