Texi Iris 10 User Manual

Texi Iris 10 Operation Manual
7
Machine basic parts and their funcons

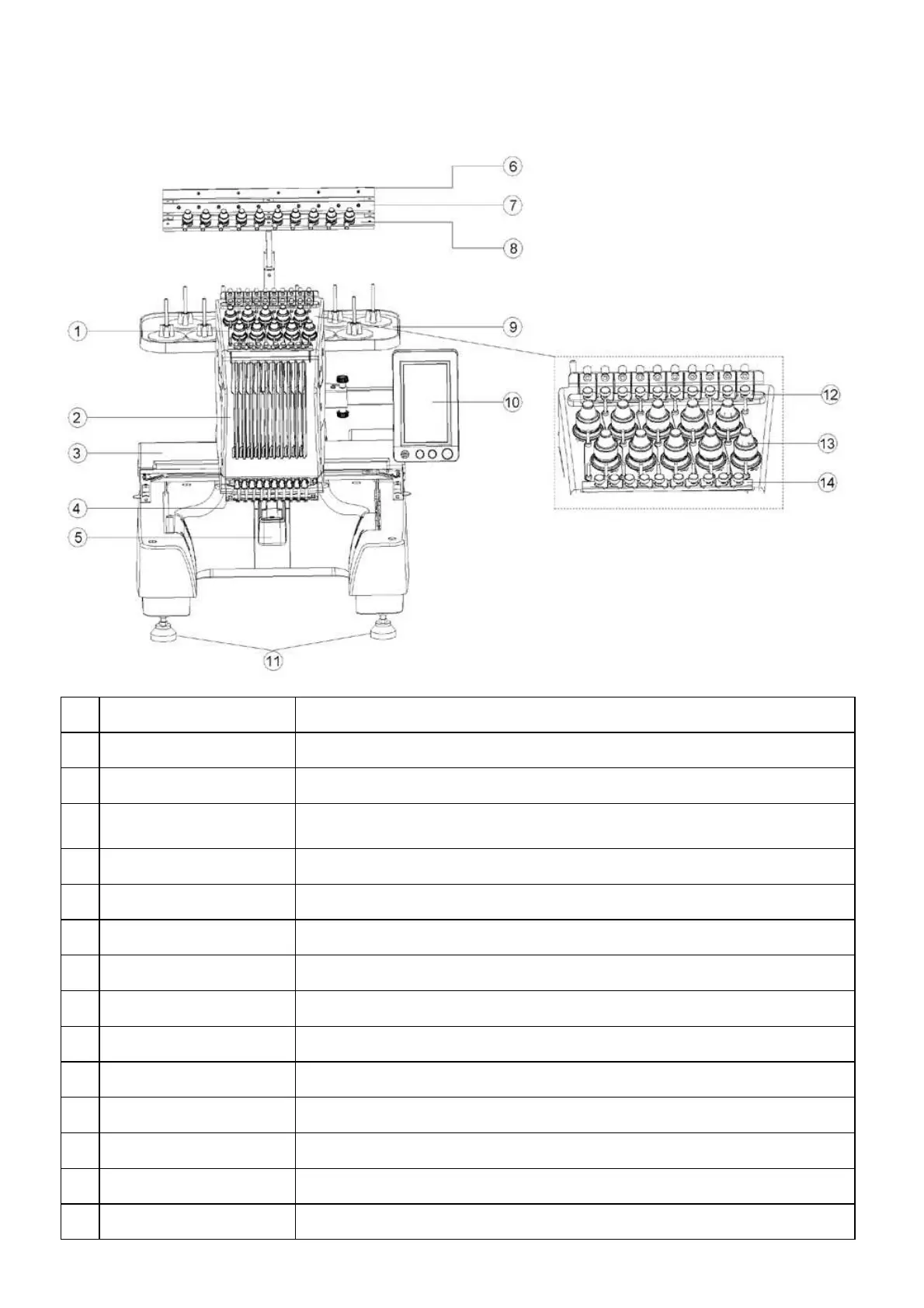

Front view
No. Name Description
1 Threading mechanism Guide the threads through marked holes and adjust tension
2 Needle bar frame Needle bar frame moves horizontally and sets the needle to embroidery position
3 Guide rail Install embroidery frame in guide rail. Once installed, the guide rail enables movements
of the frame on XY axis
4 Lower threading mechanism Guide threads through marked holes and adjust tension
5 Bobbin cap In order to change the bobbin case, open bobbin cap
7 Thread guide trough B
9 Thread real Accommodates 10 bobbins
8 Thread guide trough C
6 Thread guide trough A
11 Foot cup User may adjust the machine height and stability by regulating the screw
10 Operation panel Touch panel provides access to main functions of the machine
14 Lower thread pressing piece
13 Tension knob Regulates the tension of thread
12 Upper thread pressing piece

Texi Iris 10 Specifications

General

Brand	Texi
Model	Iris 10
Category	Sewing Machine
Language	English
