Texi Iris 10 Operation Manual
25

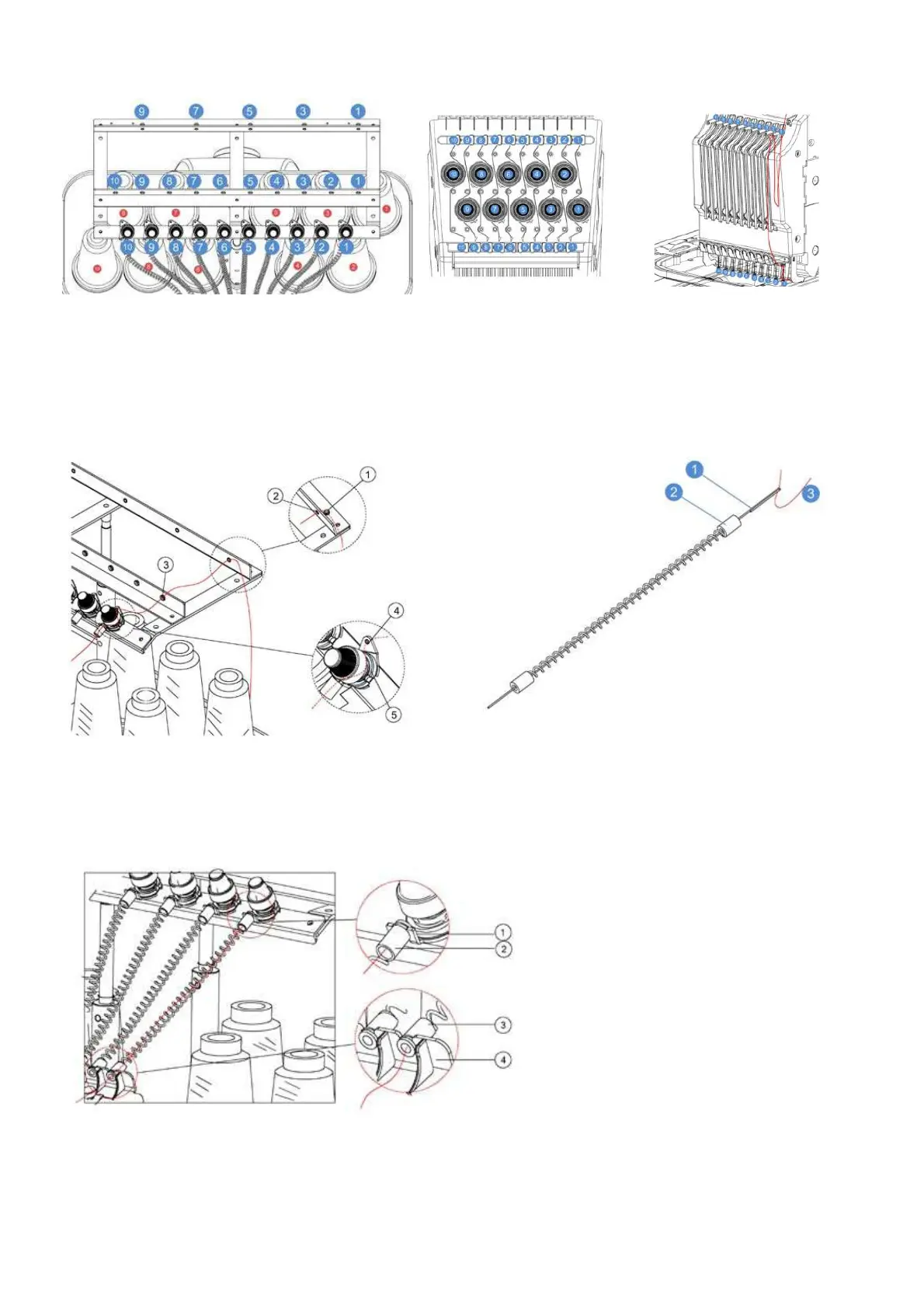

Pull out the thread from the bobbin and the lead thread
respectively through the thread guide hole (1) (2) (3) (4),
raise tension regulating clip (5) to press thread beneath,
as shown below.
Lead the threader (1) through the thread guide (2), clamp
thread with the clip on the threader and pull the thread out to
ensure smooth threading.
Install both ends of thread guide onto machine, and install (1) (3) respectively on (2) and (4).
1) Thread tube clamp
2) Thread conduit
3) Thread conduit
4) Thread clamping seat
Next thread the machine as shown below.
