Top Spatter (Dross)
Top spatter or dross on the top of the cut caused by
slow travel speed, excess cutting height, or cutting
tip whose orifice has become elongated.
4T.05 General Cutting Information
WARNING
Disconnect primary power at the
source before assembling or disassem-
bling the power supply, torch parts, or
torch and leads assemblies.
Frequently review the Important
Safety Precautions at the front of
this manual. Be sure the operator is
equipped with proper gloves, cloth-
ing, eye and ear protection. Make sure
no part of the operator’s body comes
into contact with the workpiece while
the torch is activated.
CAUTION
Sparks from the cutting process can
cause damage to coated, painted, and
other surfaces such as glass, plastic and
metal.
NOTE!
ForHandle torch leads with care and
protect them from damage..
Piloting
Piloting is harder on parts life than actual cutting
because the pilot arc is directed from the electrode
to the tip rather than to a workpiece. Whenever
possible, avoid excessive pilot arc time to improve
parts life.
Torch Standoff
Improper standoff (the distance between the torch
tip and workpiece) can adversely affect tip life as
well as shield cup life. Standoff may also signifi-
cantly affect the bevel angle. Reducing standoff will
generally result in a more square cut.
Edge Starting
For edge starts, hold the torch perpendicular to the
workpiece with the front of the tip near (not touch-
ing) the edge of the workpiece at the point where
the cut is to start. When starting at the edge of the
plate, do not pause at the edge and force the arc to
"reach" for the edge of the metal. Establish the cut-
ting arc as quickly as possible.
Direction of Cut
In the torches, the plasma gas stream swirls as it
leaves the torch to maintain a smooth column of
gas. This swirl effect results in one side of a cut be-
ing more square than the other. Viewed along the
direction of travel, the right side of the cut is more
square than the left.
Right Side
Cut Angle
Left Side
Cut Angle

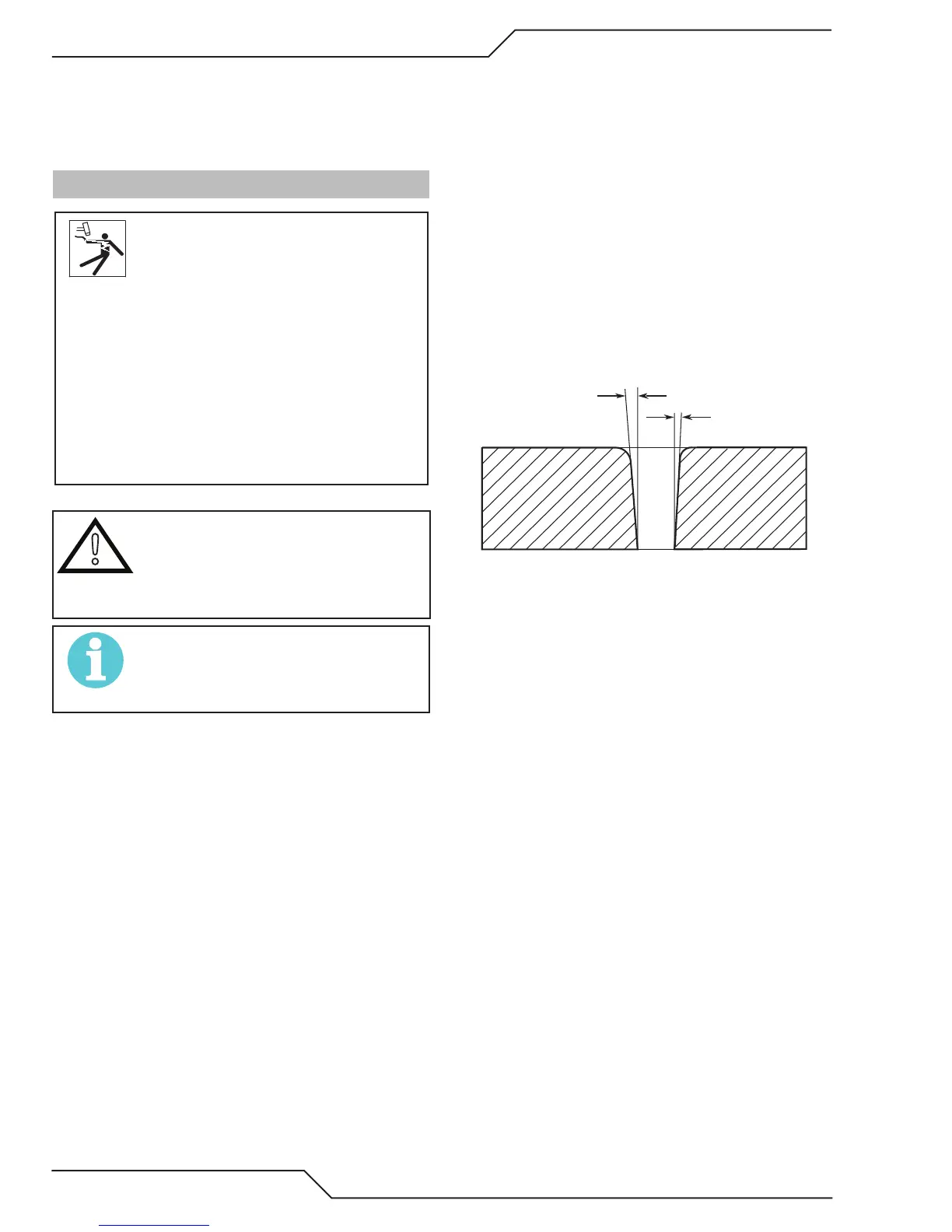

A-00512
Side Characteristics Of Cut
To make a square - edged cut along an inside
diameter of a circle, the torch should move coun-
terclockwise around the circle. To keep the square
edge along an outside diameter cut, the torch should
travel in a clockwise direction.
Dross
When dross is present on carbon steel, it is com-
monly referred to as either “high speed, slow speed,
or top dross”. Dross present on top of the plate is
normally caused by too great a torch to plate dis-
tance. "Top dross" is normally very easy to remove
and can often be wiped off with a welding glove.
"Slow speed dross" is normally present on the bot-
tom edge of the plate. It can vary from a light to
