A40i, A60i
INSTALLATION Manual 0-5466
3-4
3.07 Gas Connections
Connecting Gas Supply to Unit
The connection is the same for compressed air or high pressure cylinders. Refer to the following two subsections
if an optional air line filter is to be installed.
1. Connect the air or argon line to the inlet port. The illustration shows typical fittings as an example.
NOTE!
For a secure seal, apply thread seal-
ant to the tting threads, according to
manufacturers instructions. Do not
use Teon tape as a thread sealer, as
small particles of the tape may break
o and block the small air passages in
the torch.
3/8 barb to
1/4 NPT”
(6mm) Fitting
Filter
Assembly
1/4 NPT Inlet Port
Hose Clamp
Gas Supply
Hose

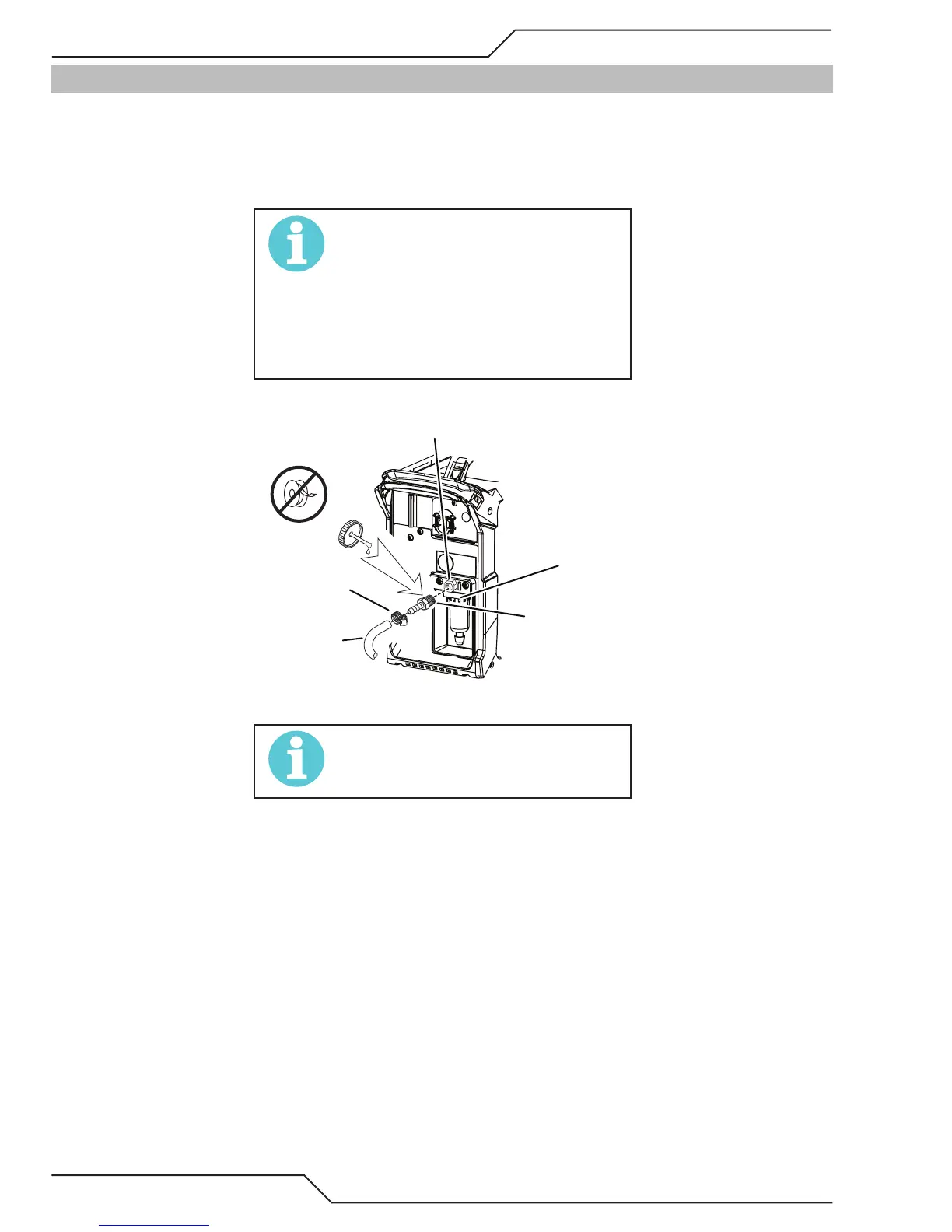

Air Connection to Inlet Port
NOTE!
Filter replacement part numbers can
be found in Section 6 of this manual
