Installing Optional Single - Stage Air Filter
An optional filter kit is recommended for improved filtering with compressed air, to keep moisture and debris out
of the torch.
1. Attach the Single - Stage Filter Hose to the Inlet Port 1/4" NPT of the system filter.
2. Attach the Filter Assembly to the filter hose.
3. Connect the air line to the Filter using the 1/4" NPT. The illustration shows typical fittings as an example.
NOTE!
For a secure seal, apply thread seal-
ant to the tting threads, according to
manufacturer’s instructions. Do not
use Teon tape as a thread sealer, as
small particles of the tape may break
o and block the small air passages in
the torch.
Hose Clamp
System Filter
Assembly
1/4 NPT
Inlet Port
Gas Supply
Hose
Art # A-13261

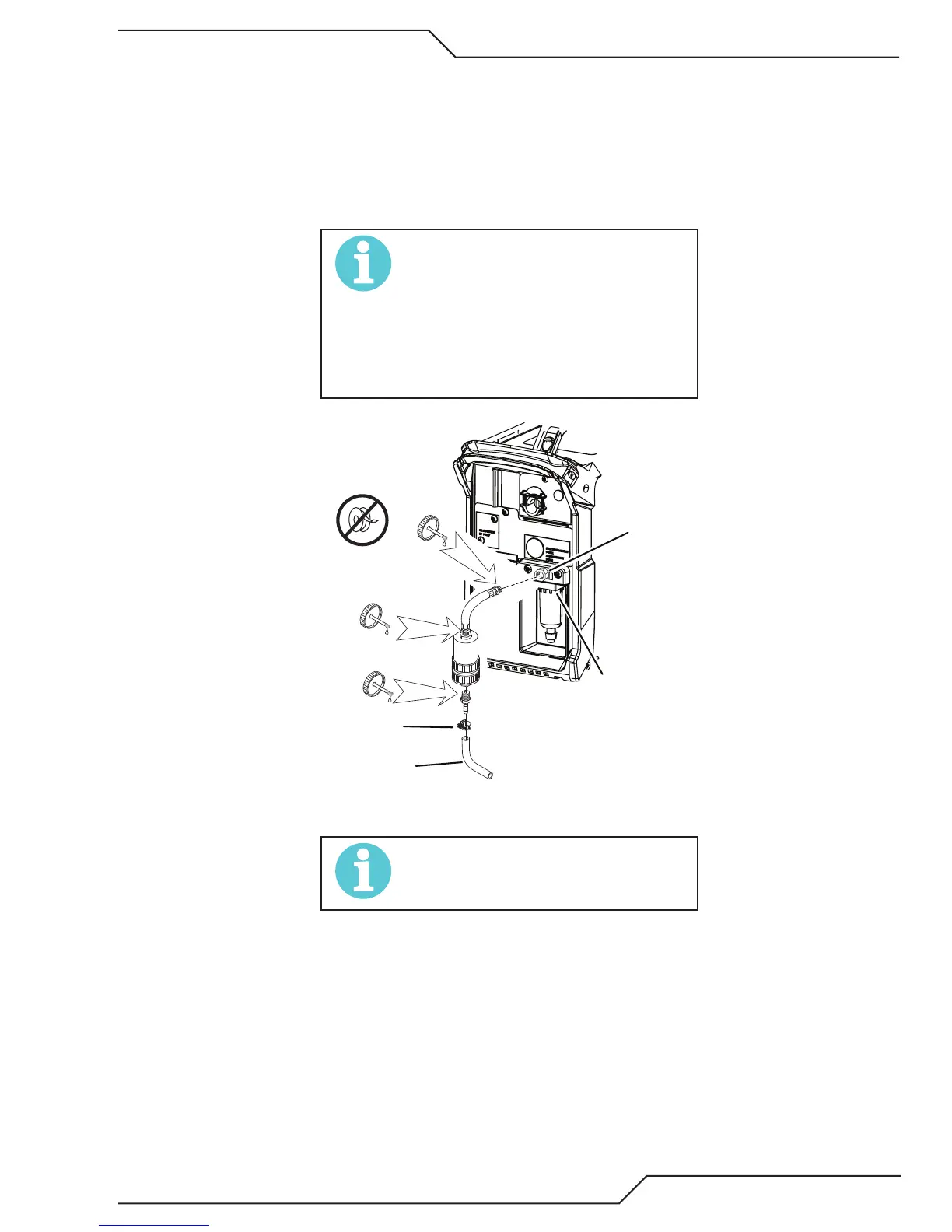

Optional Single - Stage Filter Installation
NOTE!
Filter replacement part numbers can
be found in Section 6 of this manual
To Next Page
